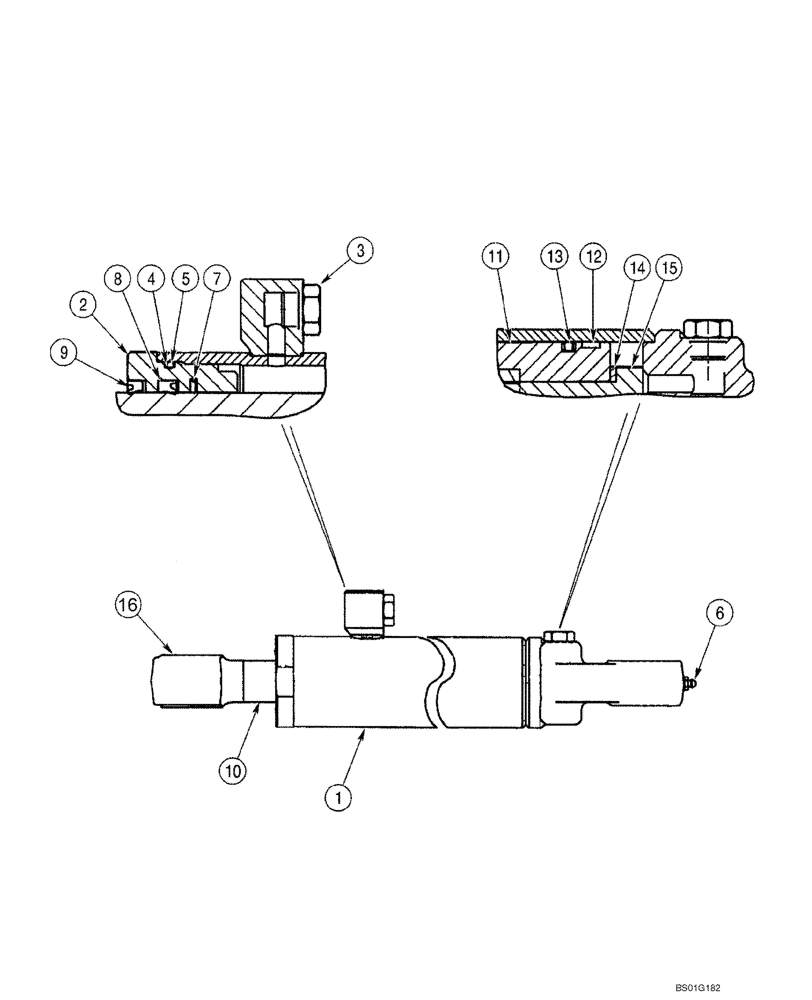

Запчасти Case IH 40XT (08-17) - CYLINDER - LOADER BUCKET, NA, BSN JAF0374549 , EUROPE, BSN JAF0348068 (08) - HYDRAULICS

REF

INSTRUCTION

North America BSN JAF0374549, European Models BSN JAF0348068

1шт.

86640307

CYLINDER ASSY.

2-1/2 x 14-1/2, 14.52, str; Incl. 1 - 15

2шт.

87461812R

40XT BSN JAF0374549 Reman for new P/N 86640307

REMAN-HYD CYLINDER

2шт.

87461812C

Return Number

CORE-HYD CYLINDER

1шт.

1

86611745

CYLINDER

1шт.

2

86640013

CYLINDER END CAP

1шт.

3

214389

PLUG,3/4" - 16 ORB

Includes O-Ring 237-6008; Replaces 214389

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

86512008

SEAL,60.89mm ID x 66.88mm OD x 1.27mm Thk

Ring, Backup

1шт.

5

52419

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

1шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Replaces 87414

1шт.

7

86631615

SEAL,34.54mm ID x 50.6mm OD x 3.12mm Thk

1шт.

8

86631606

SEAL,33.27mm ID x 48.84mm OD x 9.53mm Thk

1шт.

9

86631609

WIPER SEAL,33.02mm ID x 47.73mm OD x 7.92mm Thk

Wiper

1шт.

10

86611138

PISTON ROD

Incl 16

1шт.

11

86640074

PISTON

1шт.

12

783874

WEAR RING,Split, 57.15mm ID x 63.5mm OD x 9.53mm Thk

Wear

1шт.

13

86563839

SEAL,53.34mm ID x 64.01mm OD x 6.99mm Thk

1шт.

14

694377

WASHER

1шт.

15

328-1456

BOLT,Hex, 7/8" - 14 x 3-1/2", Gr 8

Replaces 86620879

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

86640088

SEAL KIT

Incl. 4, 5, 7 - 9, 12, 13

1шт.
