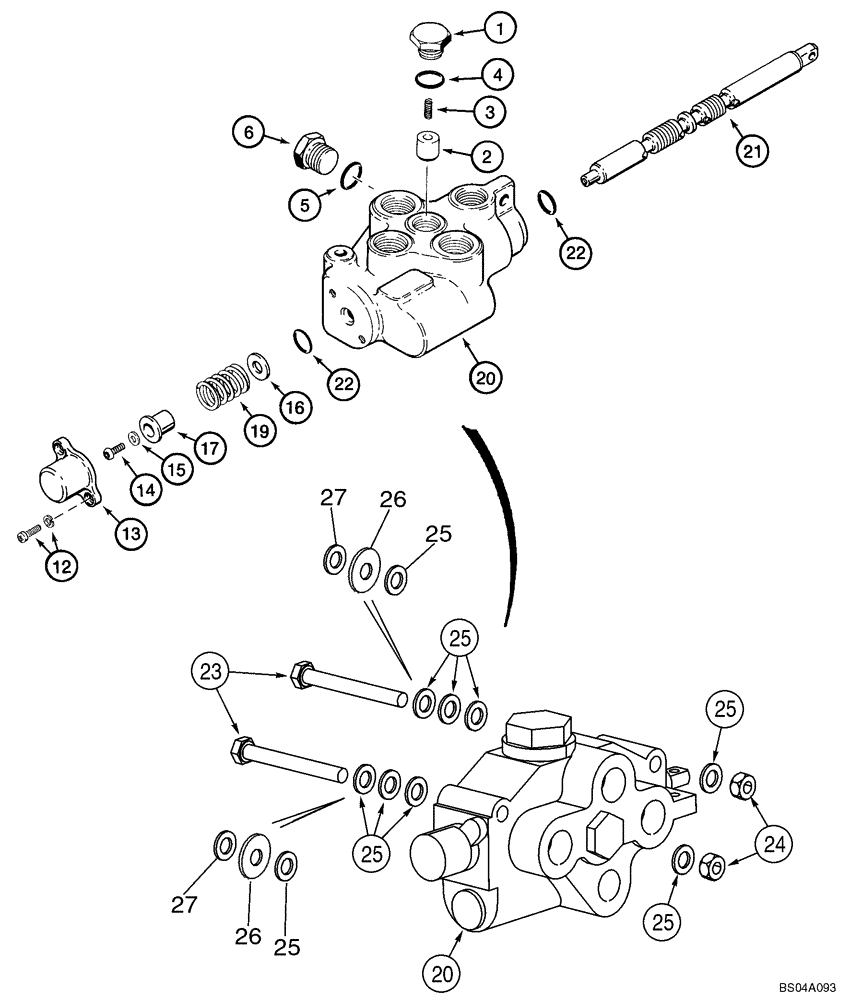

Запчасти Case IH 40XT (08-15) - VALVE, CONTROL - AUXILIARY (08) - HYDRAULICS

H674465

VALVE

Control, Auxiliary; Incl. 1 - 22

1шт.

H673572

KIT

Load Check; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Plug

1шт.

2

NSS

NOT SOLD SEPARAT

Poppet Valve

1шт.

3

NSS

NOT SOLD SEPARAT

Spring

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

132547A1

PLUG

Power Beyond

1шт.

H674816

KIT

Power Beyond; Incl. 12 - 19

1шт.

12

221655A1

CAPTIVE WASHER SCREW,Phillips Drive, Round HD, #12 - 24 x 1/2"

Incl. 12A

2шт.

12a

NSS

NOT SOLD SEPARAT

Washer; Not Illustrated

1шт.

13

N9528

CAP

1шт.

14

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

1шт.

15

492-11010

LOCK WASHER,#10

1шт.

16

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

17

N9529

SEAT

1шт.

19

N9539

TENSION SPRING

1шт.

20

NSS

NOT SOLD SEPARAT

Body

1шт.

21

NSS

NOT SOLD SEPARAT

Spool

1шт.

22

H438030

O-RING

5/8 x 13/16

2шт.

23

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

Use Loctite, No. 243; Replaces 814-8070

2шт.

24

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4-8шт.

26

87411493

RUBBER WASHER

3/8 ID

4шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
