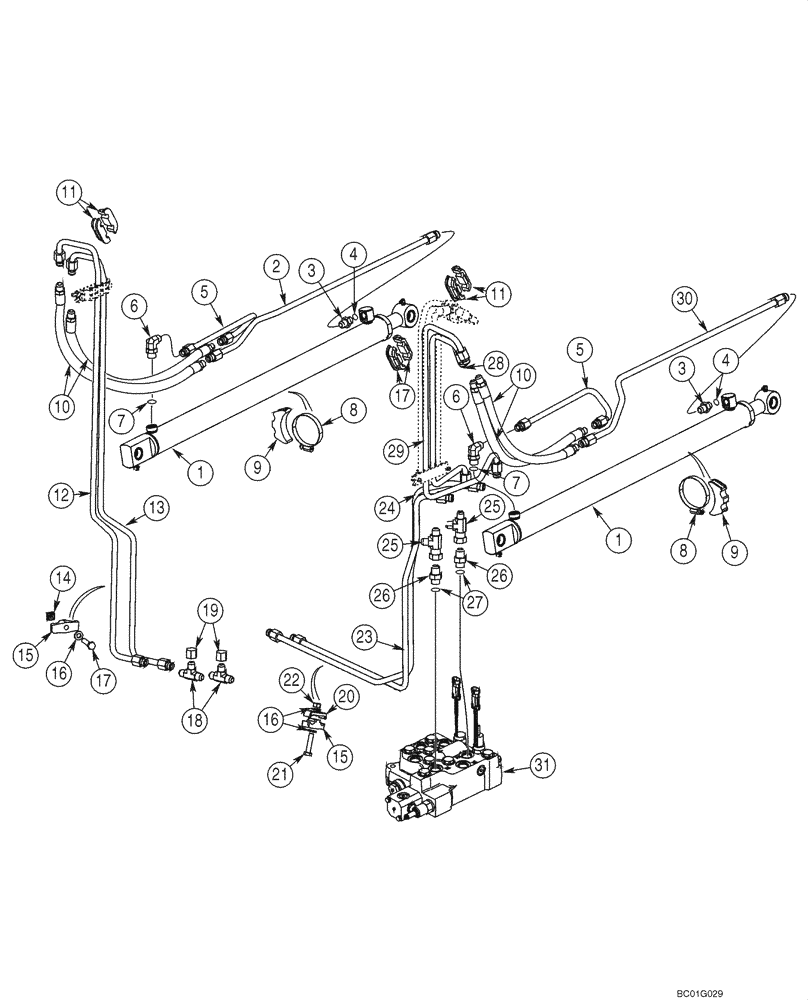

Запчасти Case IH 40XT (08-01) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS

1

86614636

CYLINDER ASSY.

2-1/4 x 35-5/32; Lift; See Figure 08-16; North America Before S/N JAF0374550 , European Models Before S/N JAF0348069

2шт.

1

447170A1

CYLINDER ASSY.,Double Acting, 40mm Rod, 893mm Stroke

Lift; See Figure 08-16A; North America S/N JAF0374550 And After, European Models S/N JAF0348069 And After

2шт.

1

87438185

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 893mm Stroke

Lift; See Figure 08-16B; Replaces 447170A1

2шт.

2

406086A1

TUBE

Left Hand; Rod End; North America Before S/N JAF0374550 , European Models Before S/N JAF0348069

1шт.

2

449437A1

TUBE

Left Hand; Rod End; North America S/N JAF0374550 And After, European Models S/N JAF0348069 And After

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 4; North America Before S/N JAF0374550 , European Models Before S/N JAF0348069

2шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 4; North America S/N JAF0374550 And After, European Models S/N JAF0348069 And After

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

396243A2

TUBE,12.7 mm OD

Closed End; North America Before S/N JAF0374550 , European Models Before S/N JAF0348069

2шт.

5

449439A1

TUBE

Closed End; North America S/N JAF0374550 And After, European Models S/N JAF0348069 And After

2шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

2шт.

9

R24703

SUPPORT

2шт.

10

390211A1

HOSE ASSY.,9.53mm ID x 575mm L

4шт.

11

376523A2

SUPPORT,1/2"

4шт.

12

406639A1

TUBE

Left Hand; Lower

1шт.

13

406641A1

TUBE

Left Hand; Raise

1шт.

14

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

15

D120679

CLAMP,Tube, 1/2"

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

17

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

18

218-594

TEE,3/4"-16, 37 Degree

2шт.

19

218-755

CAP,37 Degree, 3/4"-16

2шт.

20

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

21

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

22

832-41410

NUT,M10 x 1.5, Cl 10

1шт.

23

409159A1

TUBE

Left Hand; Raise

1шт.

23b

411786A1

TUBE

Left Hand; Raise; Not Illustrated

1шт.

24

409156A1

TUBE

Left Hand; Lower; Models Without Dual Self Level; See Figure 08-03

1шт.

24b

411784A1

TUBE

Left Hand; Lower; Models Without Dual Self Level; See Figure 08-04; Not Illustrated

1шт.

25

87410550

TEE

1/2 x 5/8 x 1/2; Replaces 218-5494

2шт.

26

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

407984A1

TUBE

Right Hand; Raise

1шт.

29

407982A1

TUBE

Right Hand; Lower; Models Without Dual Self Level; See Figure 08-03

1шт.

30

406084A1

TUBE

Right Hand; Rod End; North America Before S/N JAF0374550 , European Models Before S/N JAF0348069

1шт.

30

449435A1

TUBE

Right Hand; Rod End; North America S/N JAF0374550 And After, European Models S/N JAF0348069 And After

1шт.

31

REF

INSTRUCTION

Control Valve, Loader; See Figure 08-10, 08-11

1шт.
