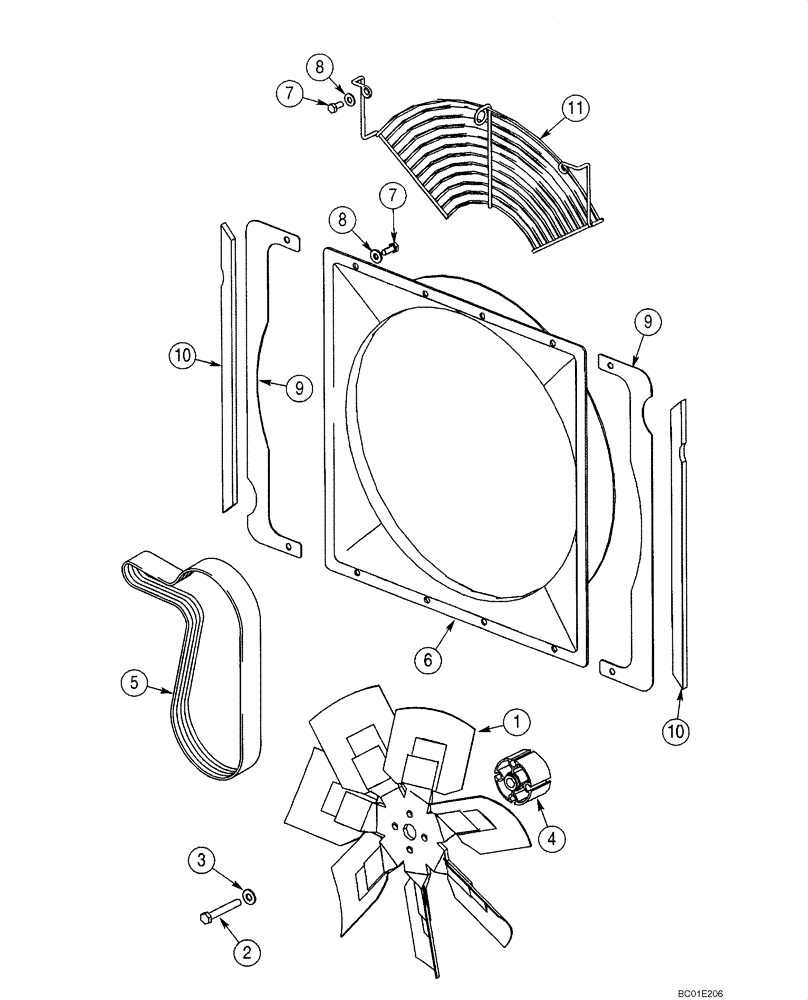

Запчасти Case IH 40XT (02-02) - FAN - FAN BELT (02) - ENGINE

1

301849A1

FAN

1шт.

2

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

4

A184545

SPACER

43 mm

1шт.

5

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan, Europe Only

1шт.

5

J911558

V-BELT,27.92mm W x 1498.6mm L, 8 Ribs

Fan, North America Only

1шт.

6

A171002

DEFLECTOR

1шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

8

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

8шт.

9

394512A1

SEAL

Fan Shroud

2шт.

10

A173165

SEALING STRIP

Side

2шт.

11

394515A1

GUARD

Fan

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
