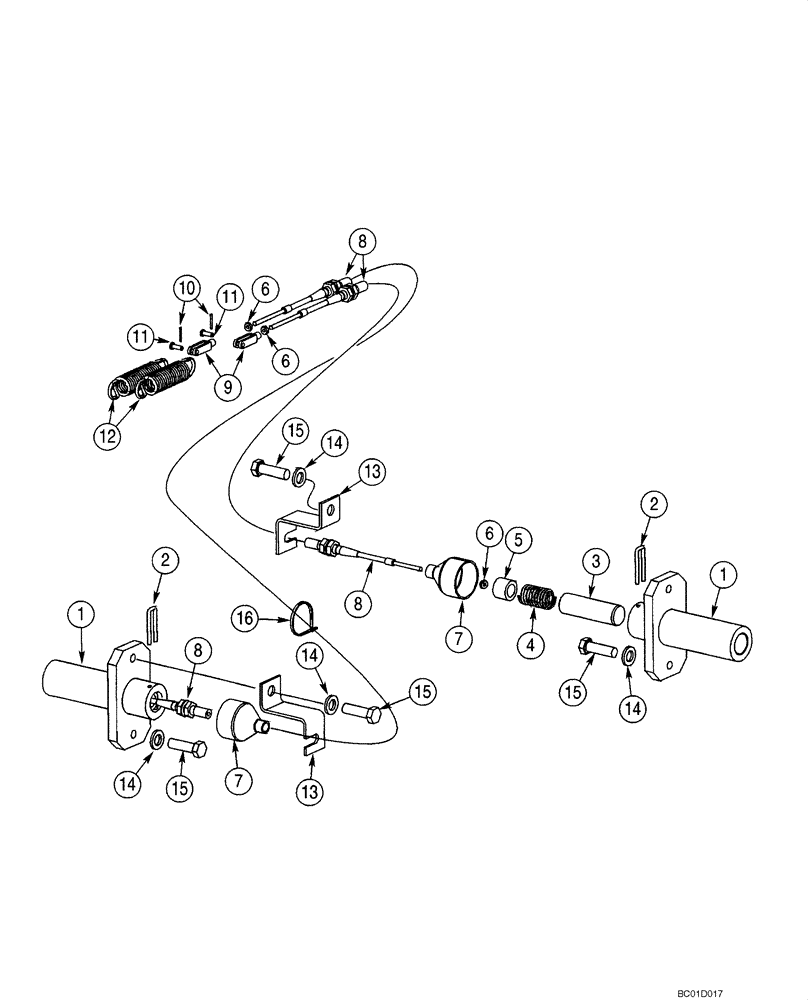

Запчасти Case IH 40XT (07-01) - BRAKE SYSTEM - MECHANICAL, NORTH AMERICAN MODELS (07) - BRAKES

1

367383A2

TUBE,25.78 mm ID

Tube, Brake; Replaces 367383A1

2шт.

2

H438614

CLIP

2шт.

3

368505A1

PIN,25.4mm OD x 84mm L

Use Loctite 222

2шт.

4

D91040

SPRING

2шт.

5

D70742

SPACER

Sleeve

2шт.

6

225-14210

NUT,#10-32

4шт.

7

370165A2

BOOT

2шт.

8

367454A2

CABLE

2шт.

9

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

2шт.

10

432-48

COTTER PIN,1/16" x 1/2"

2шт.

11

427-3058

CLEVIS PIN,3/16" x .580"

2шт.

12

D127347

SPRING

2шт.

13

367453A1

BRACKET

Mounting

2шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Mounting

4шт.

15

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

Mounting

4шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.; Mounting

5шт.
