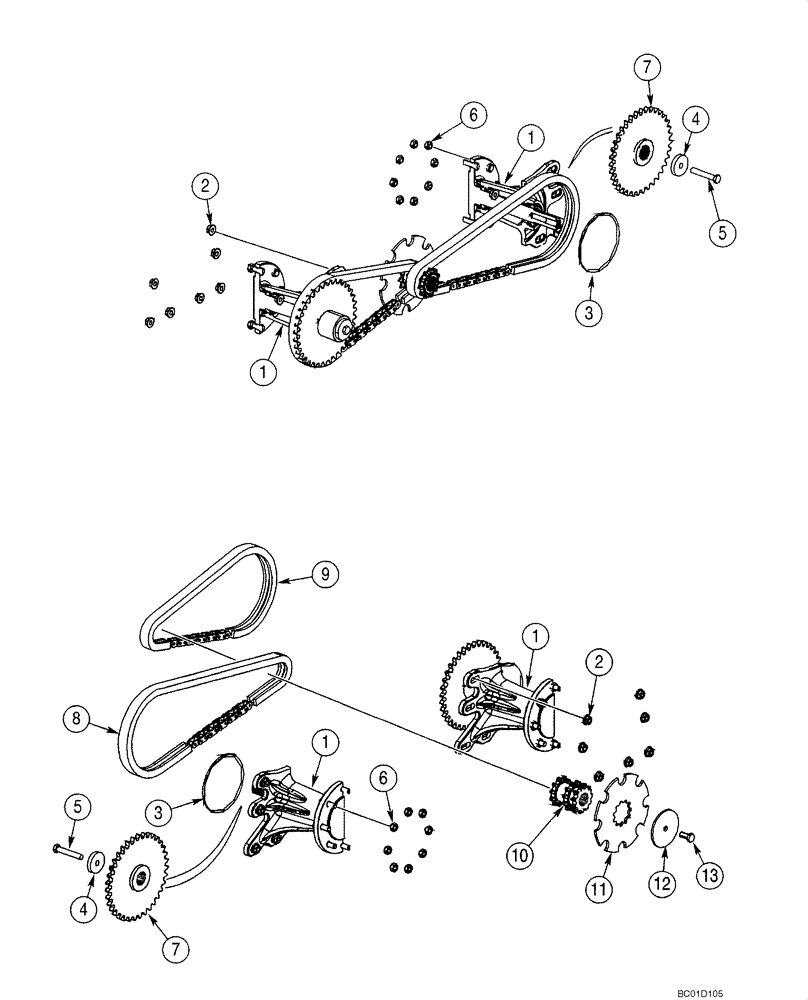

Запчасти Case IH 40XT (06-23) - DRIVE LINE, NORTH AMERICAN MODELS (06) - POWER TRAIN

1

REF

INSTRUCTION

Axle Assy; See Figure 06-25

4шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

Mounting Stud P/N 84162937

1шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.

5

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

Replaces 827-16100

4шт.

6

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

32шт.

7

367851A1

SPROCKET ASSY.

35 Teeth

4шт.

8

378381A1

CHAIN (CE)

80/72P; Left Front Axle Hub, Right Rear Axle Hub

2шт.

9

378382A1

CHAIN (CE)

80/58P; Right Front Axle Hub, Left Rear Axle Hub

2шт.

10

371637A3

SPROCKET ASSY.

Drive, 11 Teeth

2шт.

11

389099A4

Plate; Replaces 389099A3

2шт.

12

369985A2

WASHER,16.27mm ID x 127mm OD x 6.35mm Thk

2шт.

13

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.
