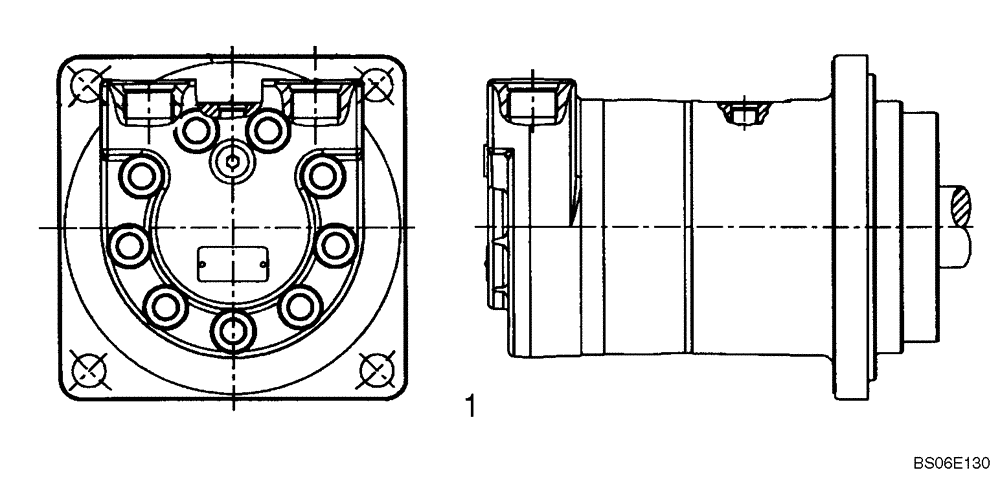

Запчасти Case IH 40XT (06-21B) - MOTOR ASSY, NORTH AMERICAN MODELS WITH MECHANICAL BRAKES (06) - POWER TRAIN

1

87524993

HYDRAULIC MOTOR

Incl. The Following Service Parts; Service Breakdown Art Not Available At Time Of Printing

2шт.

1

87524993R

REMAN-HYD MOTOR,393.29CC

40XT

2шт.

1

87524993C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

140784A1

BALL

1шт.

251506A1

SPRING

Shuttle Valve

2шт.

251511A1

VALVE POPPET

2шт.

282787A1

PLUG

1шт.

282788A1

SHIM

Shim

1шт.

282789A1

SPRING

1шт.

282804A1

PLUG

1шт.

438416A1

VALVE POPPET

1шт.

365475A1

PISTON ASSY.

1шт.

438417A1

SLEEVE

2шт.

438428A1

PLATE

1шт.

438431A1

12 PT SCREW

9шт.

442750A1

DRIVE

1шт.

442751A1

BACK-UP RING

1шт.

87359401

SEAL KIT

1шт.
