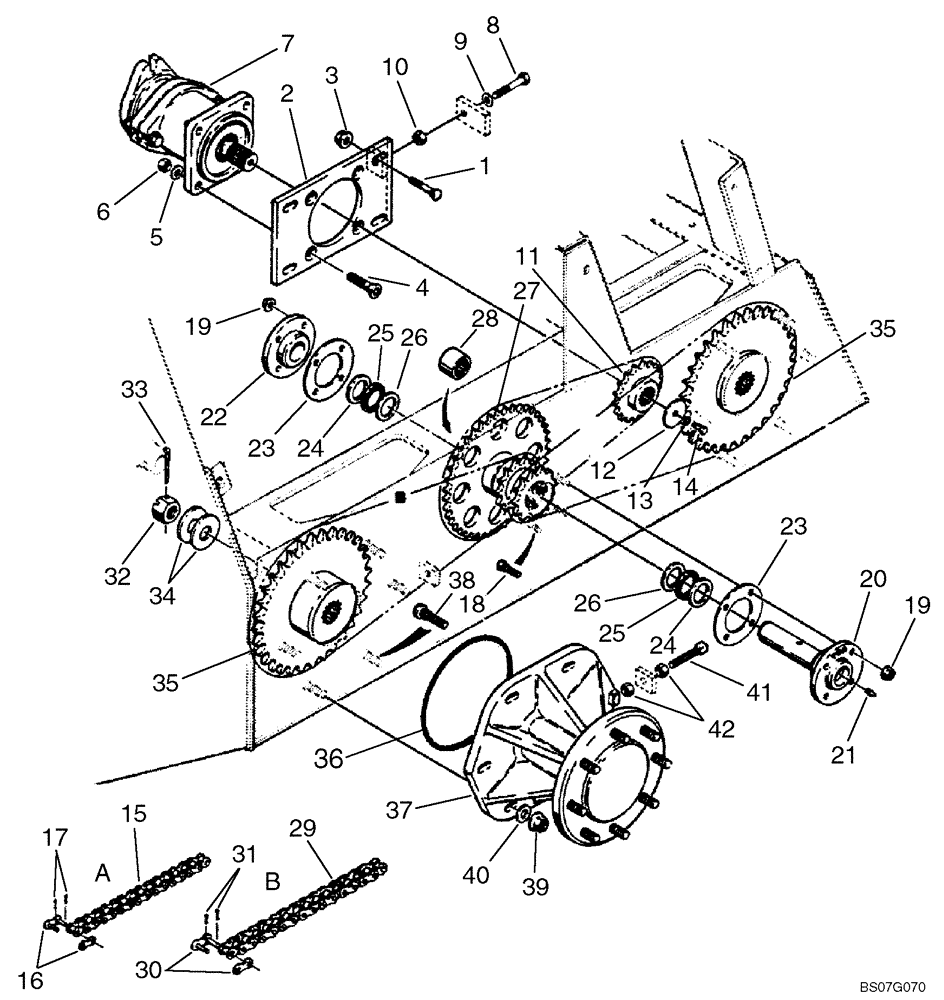

Запчасти Case IH 1845S (186) - DRIVE CHAIN AND GEARS (14) - MAIN GEARBOX & DRIVE

1

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G5

8шт.

2

D65299

PLATE

gear head mount

2шт.

3

131-919

FLANGE NUT,Flg, 1/2"-13, G5

hex flange, 1845 model, 1/2 - 13 NC

8шт.

3

129-177

NUT,1/2"-13, Stainless

hex, flange, stainless, 1845S model, 1/2" x 13 NC

8шт.

4

164-76

HEX SOC SCREW,Flat Hd, 1/2" - 13 x 2 1/4"

BOLT flat head, socket, 1/2" - 13 NC x 2-1/4"

8шт.

5

195-33

WASHER,1/2"

plain, 1/2"

5шт.

6

131-654

LOCK NUT,1/2"-13, GB

NUT hex, lock, 1/2"

8шт.

7

REF

INSTRUCTION

GEAR HEAD ASSEMBLY, parts list Figure 178

2шт.

8

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, 1845 model, 1/2" - 13 NC x 2-1/4"

2шт.

8

113-2422

BOLT,Hex, 1/2" - 13 x 2-1/4", SST

hex head, stainless, 1845S models, 1/2" - 13 NC x 2-1/4"

2шт.

9

195-33

WASHER,1/2"

plain, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

1845 model 1/2"-13, G5

2шт.

10

129-177

NUT,1/2"-13, Stainless

hex, stainless, 1845S model, 1/2" - 13 NC

2шт.

11

D76458

DRIVE SPROCKET

SPROCKET drive, 18 teeth, if used

2шт.

11

D83259

SPROCKET,17T Internal / 17T External

SPROCKET drive, 17 teeth, if used

2шт.

12

T40254

WASHER

plain

2шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

a

D65365

CHAIN (CE)

CHAIN Drive, 70 Pitch, LH, Incl 29 - 30

1шт.

b

D65364

CHAIN (CE)

CHAIN Drive, 56 Pitch, RH, Incl 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY, left hand and right hand

1шт.

16

D83132

LINK

ASSEMBLY, master

1шт.

17

NSS

NOT SOLD SEPARAT

COTTER PIN

1шт.

18

D60070

STEP BOLT

BOLT press in

16шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, flange, 3/8" - 16 NC

16шт.

20

D63780

MOUNTING PARTS

PIN ASSEMBLY, cluster sprocket, Includes Ref. 21

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

22

D64954

MOUNTING PARTS

RING cluster sprocket mounting

2шт.

23

D64971

GASKET

cluster sprocket

4шт.

24

A54031

WASHER,38.15mm ID x 55.3mm OD x 2.41mm Thk

thrust

4шт.

25

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING thrust

4шт.

26

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

WASHER thrust

4шт.

27

D76529

SPROCKET ASSY.

SPROCKET ASSEMBLY, cluster, Includes Ref. 28

2шт.

28

D64175

NEEDLE BEARING,Needle, 47.63mm ID x 38.1mm OD x 33.33mm W

BEARING needle

2шт.

D63143

CHAIN (CE)

CHAIN ASSEMBLY, driven, No. 80, Includes Ref. 29-31

4шт.

29

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY

1шт.

30

D72824

LINK,Master

master

1шт.

31

132-77

COTTER PIN,5/32" x 2"

Pin, Split (Cotter), 5/32" x 2"

1шт.

32

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

4шт.

33

132-77

COTTER PIN,5/32" x 2"

Pin, Split (Cotter), 5/32" x 2"

4шт.

34

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

special

1шт.

35

D76464

DRIVE SPROCKET

SPROCKET driven

4шт.

36

70924143

O-RING,0.139" Thk x 8.234" ID, -267, Cl 5, 75 Duro

; Replaces A28319

4шт.

37

REF

INSTRUCTION

AXLE ASSEMBLY, parts list Figure 188

4шт.

38

E16592

WHEEL BOLT

BOLT press in

24шт.

39

131-915

FLANGE NUT,Flg, 1/2"-20, G5

hex, flange, 1845 model, 1/2" - 20 NF

24шт.

39

131-924

NUT,Flg, 1/2"-20, G5

hex, flange, plated, 1845S model, 1/2" - 20 NF

24шт.

40

D68735

WASHER

hardened, .10" (2.5 mm) thick, use two washers per stud

24шт.

40

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

hardened, .19" (4.8 mm) thick

24шт.

41

85-848

SET SCREW,Sq Hd, 1/2" - 13 x 3"

BOLT square head, cup point, 1845 model, 1/2" -13 NC x 3"

4шт.

41

113-2435

BOLT square head, cup point stainless, 1845S model, 1/2" - 13 NC x 3" Hex, 1/2"-13 x 3", Stainless

4шт.

42

129-105

NUT,Hex, 1/2" - 13, Gr 5

1845 model 1/2"-13, G5

8шт.

42

129-177

NUT,1/2"-13, Stainless

hex, stainless, 1845S model, 1/2" - 13 NC

8шт.
