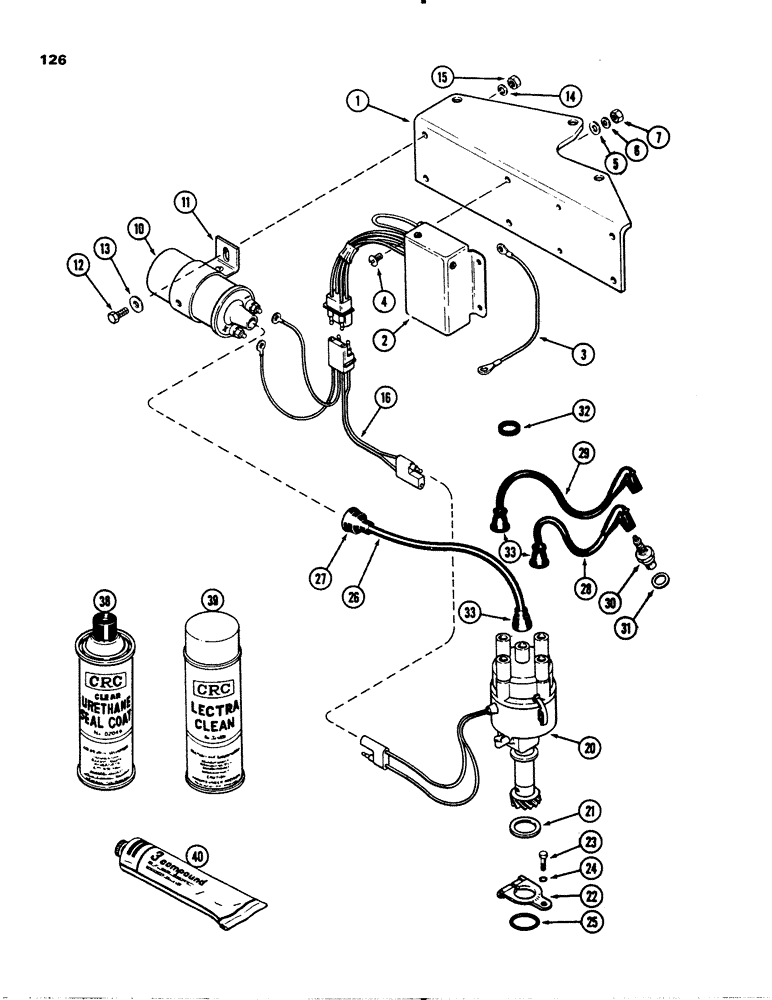

Запчасти Case IH 1845S (126) - INDUCTION DISCHARGE SYSTEM, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

A51042

BRACKET electric pack and coil mounting, retained by cylinder head cover nuts

1шт.

2

A137579

PACKAGE

PACK ASSEMBLY, electronic

1шт.

3

A152140

WIRE ground, 10" long, 254.0 mm

1шт.

4

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

pack to bracket, pan head, #10 x 1/2" NC

4шт.

5

195-101

WASHER,3/16"

1/4" x 9/16" x 1/16", 6.35 mm x 14.29 mm x 1.59 mm

2шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

7

129-17

NUT,Hex, #10 - 24

NUT #10 NC hex

4шт.

10

A45466

COIL

ignition

1шт.

11

G46106

BRACKET

coil clamp and mounting

1шт.

12

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Coil bracket Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

13

195-102

WASHER,1/4"

5/16" x 3/4" x 1/16", 7.94 mm x 19.05 mm x 1.59 mm

2шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

16

A137580

HARNESS

ASSEMBLY, hi-tension wires

1шт.

20

REF

INSTRUCTION

DISTRIBUTION ASSEMBLY, see Figure 130

1шт.

21

A30080

THRUST WASHER

thrust, advance arm

1шт.

22

A29989

ARM

ASSEMBLY, advance

1шт.

23

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

25

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

distributor to block, 1-1/16" x 1-5/16" x 1/8", 26.99 mm x 33.34 mm x 3.17 mm

1шт.

26

A62857

ELECTRICAL WIRE

WIRE, Serial Range: coil-distributor

1шт.

Whenever the distributor cap, plug wires or coil wires are removed ore replaced, use B17400 cleaner and B17401 compound to assemble and M20861 seal coat spray to complete installation.

1шт.

27

G46803

BOOT

NIPPLE wire, at coil

1шт.

28

A51509

CABLE

WIRE distributor to spark plugs, 12" long, 304.8 mm

2шт.

Whenever the distributor cap, plug wires or coil wires are removed ore replaced, use B17400 cleaner and B17401 compound to assemble and M20861 seal coat spray to complete installation.

1шт.

29

A51510

CABLE

WIRE distributor to spark plugs, 8-3/4" long, 222.25 mm

2шт.

Whenever the distributor cap, plug wires or coil wires are removed ore replaced, use B17400 cleaner and B17401 compound to assemble and M20861 seal coat spray to complete installation.

1шт.

30

G44840

SPARK PLUG

PLUG ASSEMBLY, spark, standard, Includes Ref. 31

4шт.

30

A150638

SPARK PLUG

PLUG ASSEMBLY, spark, radio suppression, Includes Ref. 31

4шт.

31

G46839

GASKET

spark plug

1шт.

32

A30109

WASHER

HOLDER hi-tension wires

1шт.

33

A29338

COVER

NIPPLE hi-tension wires, at distributor

5шт.

38

M20861

ADHESIVE

SPRAY seal coat, 16 oz. can, 0.473 liter

1шт.

Whenever the distributor cap, plug wires or coil wires are removed ore replaced, use B17400 cleaner and B17401 compound to assemble and M20861 seal coat spray to complete installation.

1шт.

39

B17400

CLEANER

electrical, 16 oz. can, 0.473 liter

1шт.

Whenever the distributor cap, plug wires or coil wires are removed ore replaced, use B17400 cleaner and B17401 compound to assemble and M20861 seal coat spray to complete installation.

1шт.

40

B17401

COMPOUND potting, 8 oz. tube, 0.237 liter

1шт.

Whenever the distributor cap, plug wires or coil wires are removed ore replaced, use B17400 cleaner and B17401 compound to assemble and M20861 seal coat spray to complete installation.

1шт.
