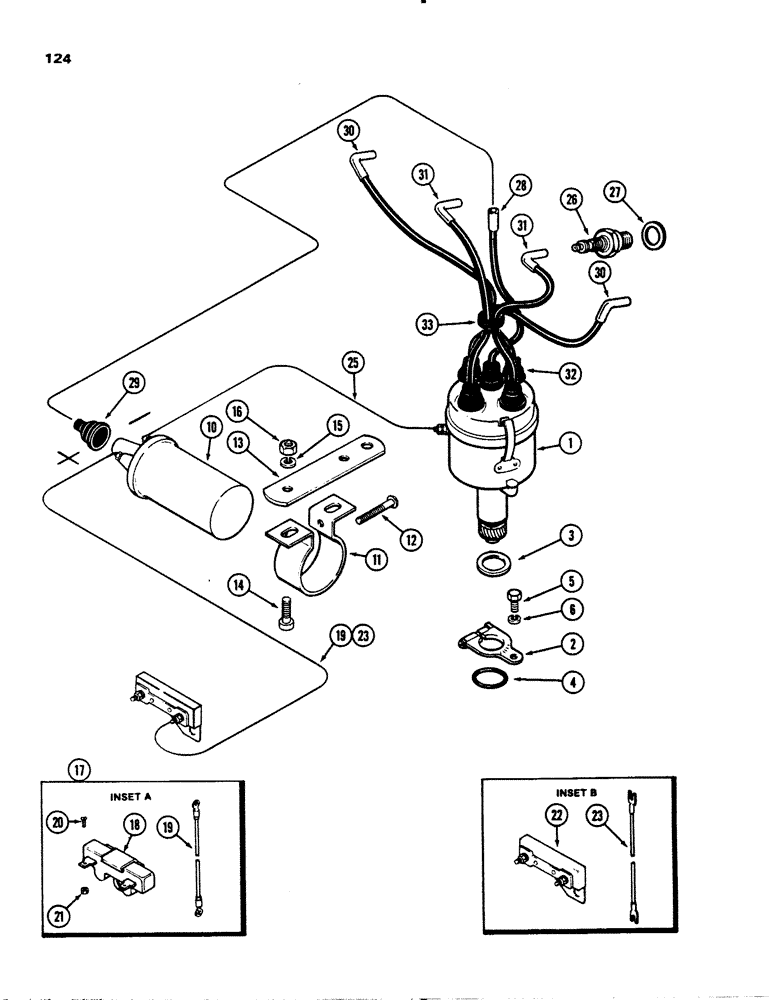

Запчасти Case IH 1845S (124) - STANDARD IGNITION SYSTEM, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

REF

INSTRUCTION

DISTRIBUTOR ASSEMBLY, see Figure 128

1шт.

2

A29989

ARM

ASSEMBLY advance

1шт.

3

A30080

THRUST WASHER

thrust, advance arm

1шт.

4

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

distributor to block, 1-1/16" x 1/5/16" x 1/8", 26.99 mm x 33.34 mm x 3.17 mm

1шт.

5

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Advance arm Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

10

A40778

COIL

ASSEMBLY ignition, 12 volt

1шт.

11

G46106

BRACKET

coil mounting

1шт.

12

187-540

SCREW coil bracket, round head, #10 x 1-1/2"

1шт.

13

G11705

BRACKET

STRAP coil support

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Bracket to strap

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

A46049

WEIGHT

RESISTOR KIT coil, Includes Ref. 18-21

1шт.

18

NSS

NOT SOLD SEPARAT

RESISTOR coil ballast, Eltra #305013, order A46049, see Inset A

1шт.

19

A150039

ELECTRICAL WIRE

WIRE resistor to coil, 7" long with closed terminals, 177.8 mm

1шт.

20

173-278

SCREW,Sl Rnd Hd, #6 - 32 x 3/8", Brass

round head, brass, #6-32 x 3/8"

2шт.

21

193-1003

NUT,Keps, w/LW,#6-32

Keps, #6-32 hex

2шт.

22

A24504

RESISTOR

coil ballast, Eltra #201020, see Inset B

1шт.

23

A38832

ELECTRICAL WIRE

WIRE resistor to coil, 7" long with spade terminals, 177.8 mm

1шт.

25

G13085

ELECTRICAL WIRE

WIRE coil to distributor, 12" long, 304.8 mm

1шт.

26

G44840

SPARK PLUG

PLUG ASSEMBLY, spark, standard, Includes Ref. 23

4шт.

26

A150638

SPARK PLUG

PLUG ASSEMBLY, spark, radio supression, Includes Ref. 23 and 27

4шт.

27

G46839

GASKET

spark plug

1шт.

28

A62857

ELECTRICAL WIRE

WIRE coil to distributor, 12-1/2" long, 317.5 mm

1шт.

29

G46803

BOOT

NIPPLE coil wire, at coil

1шт.

30

A51509

CABLE

WIRE distributor to spark plugs, 12" long, 304.8 mm

2шт.

31

A51510

CABLE

WIRE distributor to spark plugs, 8-3/4" long, 222.25 mm

2шт.

32

A29338

COVER

NIPPLE hi-tension wires, at distribution

5шт.

33

A30109

WASHER

RING tie, hi-tension wires

1шт.
