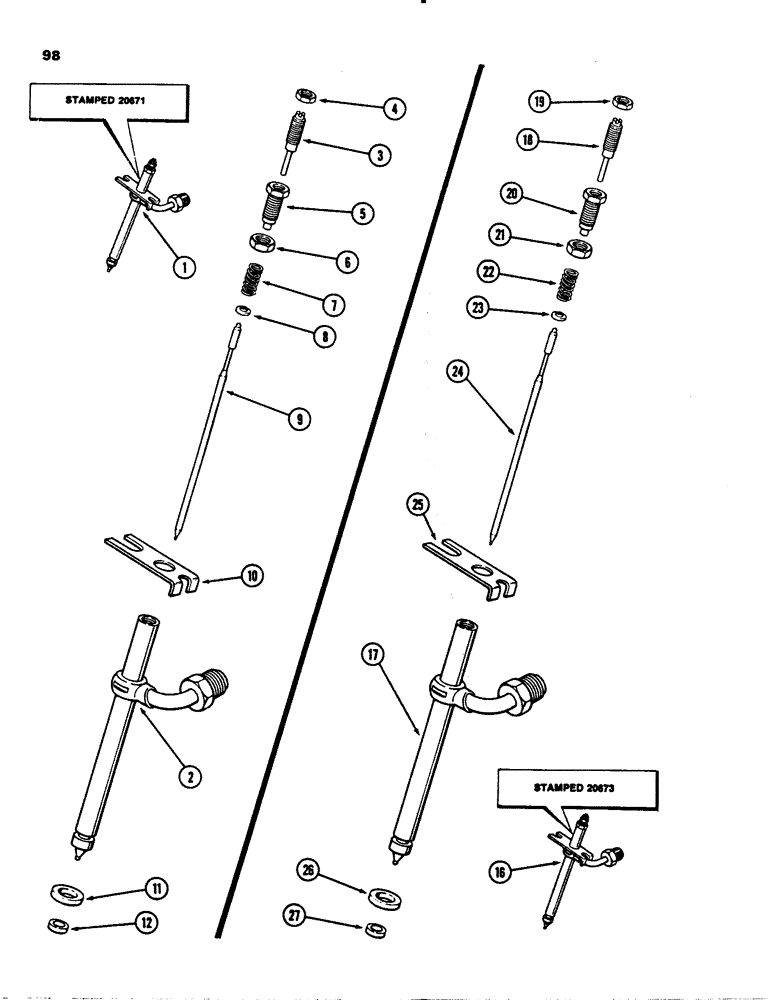

Запчасти Case IH 1845S (098) - INJECTION NOZZLES, (188) DIESEL ENGINE (10) - ENGINE

1

A140829

NOZZLE INJECTION

NOZZLE ASSEMBLY, fuel injector, stamped 20671 on body, white color code, Includes: Ref. 2 - 12

4шт.

Engine Serial No. 2835235 & After

1шт.

Whenever a nozzle is removed from the head, A41403 washer and A41402 seal must be replaced before the nozzle is installed back into the head.

1шт.

A140829R

REMAN-INJECT NOZZLE

1845S, 1845

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW lift adjusting

1шт.

4

A43602

NUT

lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW pressure adjusting

1шт.

6

A42424

LOCK NUT

lock, pressure adjusting screw

1шт.

7

A43733

SPRING

pressure, 9/16" free length with red stain, 14.29 mm

1шт.

8

A44369

SEAT

pressure spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE nozzle

1шт.

10

A43506

PLATE ASSY.

PLATE nozzle hold down

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

nozzle body, nylon, 3/8" x 9/16" x 1/8", 9.52 mm x 14.29 mm x 3.17 mm

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop, teflon, 5/16" x 3/8" x 1/8", 7.94 mm x 9.52 mm x 3.17 mm

1шт.

16

A140828

FUEL SYSTEM INJECTOR

NOZZLE ASSEMBLY, fuel injector, stamped 20673 on body, white and yellow color code, Includes: Ref. 17 - 27, prior to engine serial no. 2835235

4шт.

Prior to Engine Serial No. 2835235

1шт.

Whenever a nozzle is removed from the head, A41403 washer and A41402 seal must be replaced before the nozzle is installed back into the head.

1шт.

A140828R

1845, 1845S Both PRIOR to ENGINE SERIAL NO. 2835235

REMAN-INJECT NOZZLE

4шт.

A140828C

Return Number

CORE-NOZZLE, INJECT

1шт.

17

NSS

NOT SOLD SEPARAT

BODY nozzle, prior to engine serial no. 2835235

1шт.

18

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW lift adjusting, prior to engine serial no. 2835235

1шт.

19

A43602

NUT

lock, lift adjusting screw, prior to engine serial no. 2835235

1шт.

20

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW pressure adjusting, prior to engine serial no. 2835235

1шт.

21

A42424

LOCK NUT

lock, pressure adjusting screw, prior to engine serial no. 2835235

1шт.

22

A43733

SPRING

pressure, 9/16" free length with red stain, 14.29 mm, prior to engine serial no. 2835235

1шт.

23

A44369

SEAT

pressure spring, prior to engine serial no. 2835235

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE nozzle, prior to engine serial no. 2835235

1шт.

25

A43506

PLATE ASSY.

PLATE nozzle hold down, prior to engine serial no. 2835235

1шт.

26

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

nozzle body, nylon, 3/8" x 9/16" x 1/8", 9.52 mm x 14.29 mm x 3.17 mm, prior to engine serial no. 2835235

1шт.

27

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop, teflon, 5/16" x 3/8" x 1/8", 7.94 mm x 9.52 mm x 3.17 mm, prior to engine serial no. 2835235

1шт.
