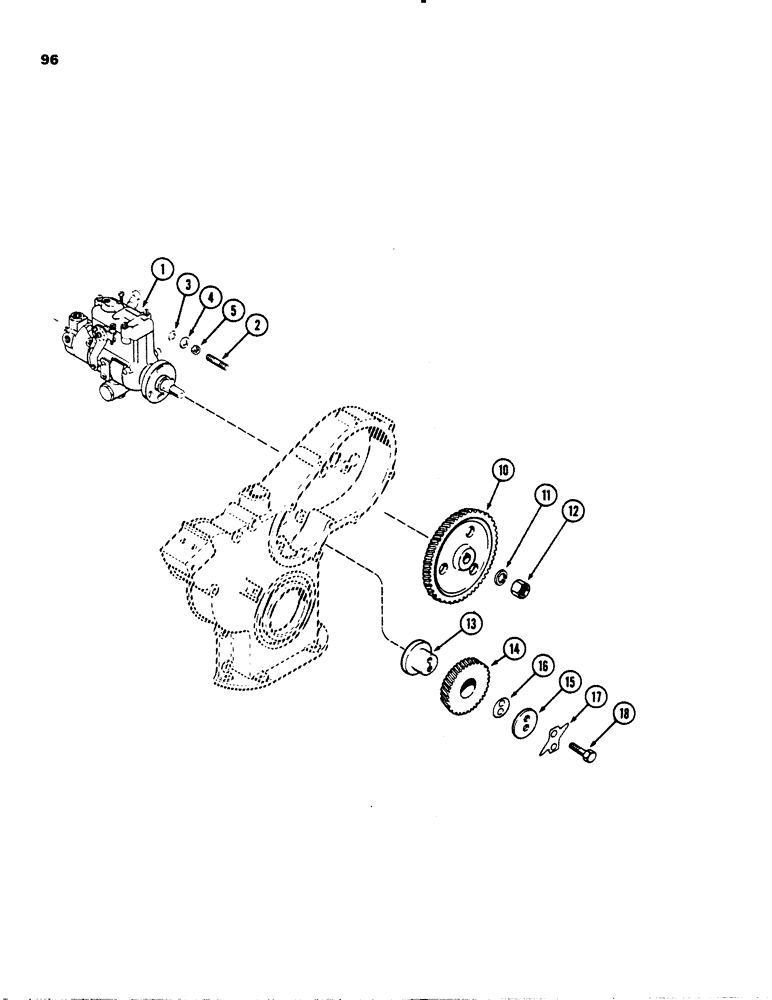

Запчасти Case IH 1845S (096) - INJECTION PUMP DRIVE, (188) DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY, injection, see Figure 94

1шт.

2

G102138

STUD pump mounting, 3/8" NC x 1-7/16"

3шт.

3

A30043

WASHER

3/8" x 7/8" x 1/8", 9.52 mm x 22.22 mm x 3.17 mm

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

3/8" NC hex

3шт.

10

G2076

GEAR

drive, injection pump

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Drive gear 9/16"

1шт.

12

25-159

JAM NUT,Jam, 9/16"-18, G5

jam, 9/16" NF hex

1шт.

13

G11726

HUB

idler gear

1шт.

14

G11852

GEAR

ASSEMBLY, idler, Includes bushing

1шт.

15

G11732

PLATE

thrust, idler gear

1шт.

16

G11728

SHIM,.005" Thk

Idler gear (0.127 mm) .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

Idler gear (0.152 mm) .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

Idler gear (0.178 mm) .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

Idler gear (0.229 mm) .009" Thk

1шт.

17

G11746

PLATE

lock, idler gear

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
