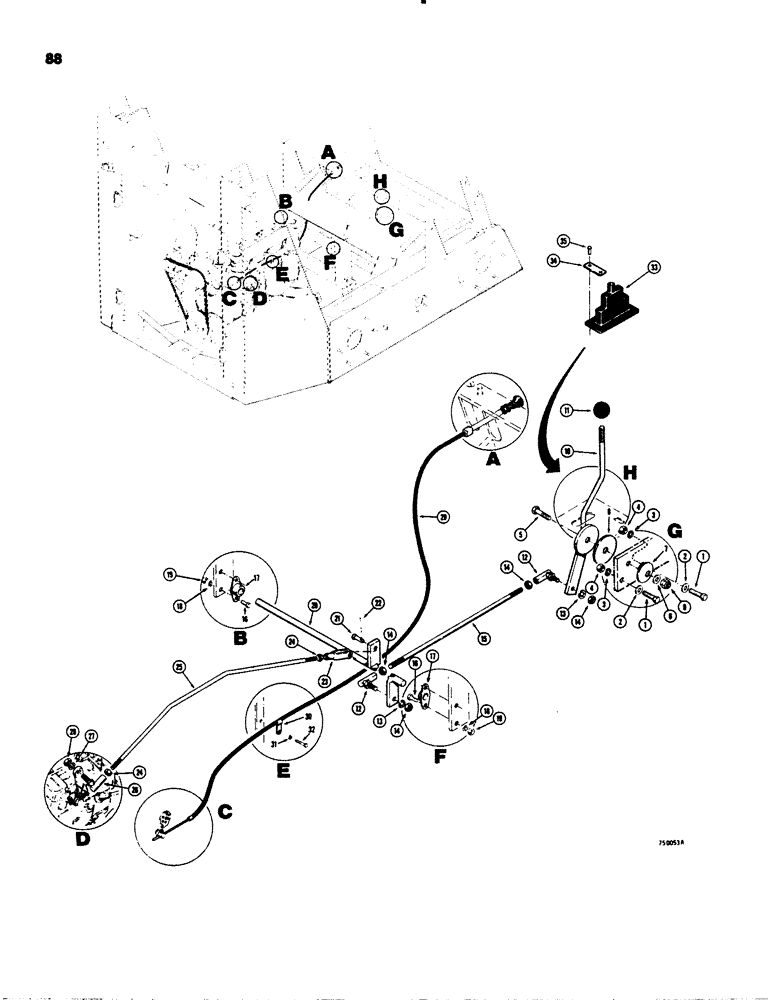

Запчасти Case IH 1845S (088) - ENGINE CONTROLS - DIESEL MODELS, THROTTLE AND FUEL SHUTOFF (10) - ENGINE

1

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

2

195-25

WASHER,3/8"

flat, 3/8"

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-146

JAM NUT,Jam, 3/8"-16, G5

hex, lock, 3/8" - 16 NC

2шт.

5

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

6

195-25

WASHER,3/8"

flat, 3/8"

1шт.

7

R14771

WASHER

Belleville

1шт.

8

R15071

DISC

friction

1шт.

9

131-652

LOCK NUT,3/8"-16, GB

NUT hex, self lock, 3/16" - 16 NC

2шт.

10

D63973

HANDLE

THROTTLE handle

1шт.

11

D59912

KNOB

handle

1шт.

12

A19105

BALL JOINT

5/16"

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

129-122

NUT,5/16"-24, G5

4шт.

15

D63969

ROD

throttle

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

17

D63966

FLANGED BEARING,0.508" ID x 1.12" OD x 0.56"

BEARING flange style

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

19

25-104

NUT,1/4"-20, G5

4шт.

20

D63968

SHAFT cross

1шт.

21

141-2

CLEVIS PIN,1/4" x .770"

1шт.

22

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

23

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS 1/4"

1шт.

24

129-121

NUT,1/4"-28, G5

2шт.

25

D63959

ROD

throttle

1шт.

26

A10329

BALL JOINT,1/4" - 28 x 1"

1/4" - 28 NF

1шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

129-121

NUT,1/4"-28, G5

1шт.

29

D68746

CABLE

shutoff

1шт.

30

A26673

CLIP

CLAMP cable

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

33

D75766

COVER throttle handle, noise reduction

1шт.

34

D76432

TAB cover mounting

2шт.

35

151-538

RIVET,Pop, 3/16" x .575"

POP RIVET 3/16"

4шт.
