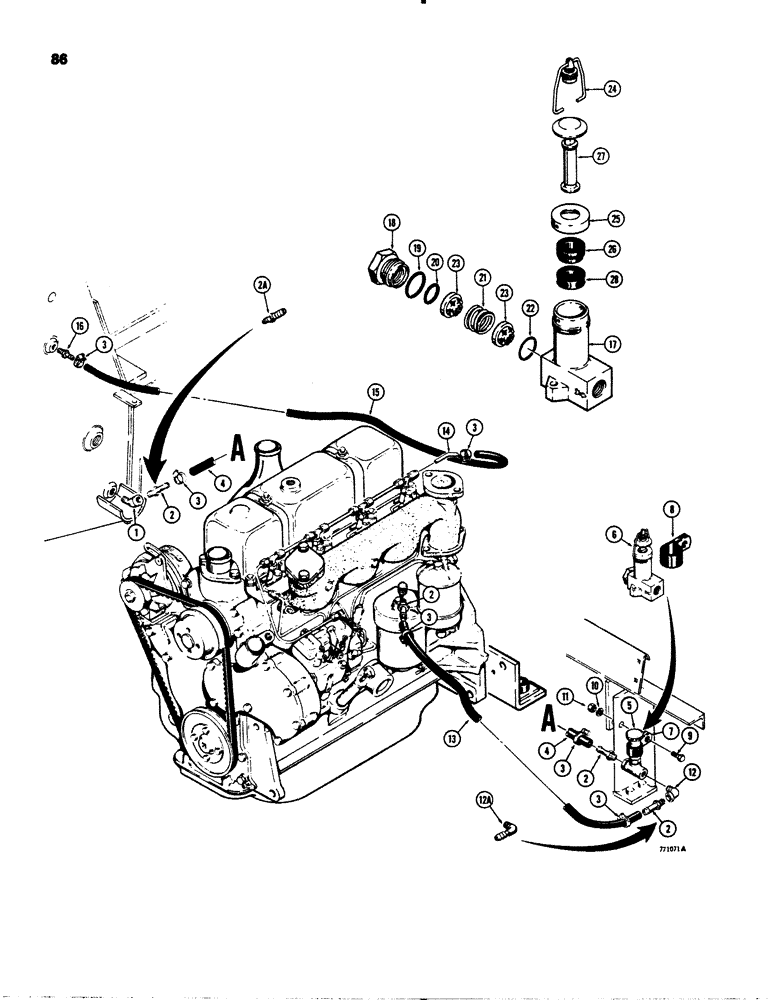

Запчасти Case IH 1845S (086) - FUEL LINES AND HAND PRIMER - DIESEL MODELS / D75092 HAND PRIMER (10) - ENGINE

1

221-402

ELBOW,45 Degree, 1/4"-27, NPT

FITTING 45 degree, 1/4" NPT

1шт.

2

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

straight, hose barb, if used

4шт.

2a

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

straight, hose barb, if used

3шт.

3

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP worm screw type

6шт.

4

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

FUEL HOSE, 6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

5

A60042

PUMP

PRIMER fuel, use D75092 primer

1шт.

5

A60042R

REMAN-FUEL LIFT PUMP

Primer Fuel

1шт.

5

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

6

D75092

PUMP

PRIMER fuel, parts list below

1шт.

7

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

used with A60042 primer

1шт.

8

R21385

CLAMP

used with D75092 primer

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex head, 3/8" - 16 NC x 1"

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

1шт.

12

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING 90 degree, 1/4" pipe, if used

1шт.

12a

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

90 degree, hose barb, if used

1шт.

13

D72349

FUEL HOSE,0.25" ID x 20.00", SAE 30R6 or SAE 30R7

1шт.

14

D67306

TUBE

fuel return

1шт.

15

D64267

FUEL HOSE,0.25" ID x 31.00", SAE 30R7

1шт.

16

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

straight, hose barb

1шт.

D75092

PUMP

PRIMER fuel, Includes: Ref. 17 - 24 and plunger kit

1шт.

17

F10070

BODY

D75092 hand primer

1шт.

18

F10068

NUT

D75092 hand primer

1шт.

19

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL nut, D75092 hand primer

1шт.

20

51200832

SEAL ASSY.

SEAL inner, D75092 hand primer

1шт.

21

D75866

SPRING

D75092 hand primer

1шт.

22

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL outer, D75092 hand primer

1шт.

23

F10076

LOCK VALVE

VALVE, D75092 hand primer

2шт.

24

F10073

CLAMP

BAIL AND CLAMP, D75092 hand primer

1шт.

N7519

KIT

plunger, Includes: Ref. 25 - 28, D75092 hand primer

1шт.

25

D75865

KIT

CAP, D75092 hand primer

1шт.

26

F10072

GUIDE

SLEEVE, D75092 hand primer

1шт.

27

F10074

KIT

PISTON, D75092 hand primer

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL piston, D75092 hand primer

1шт.
