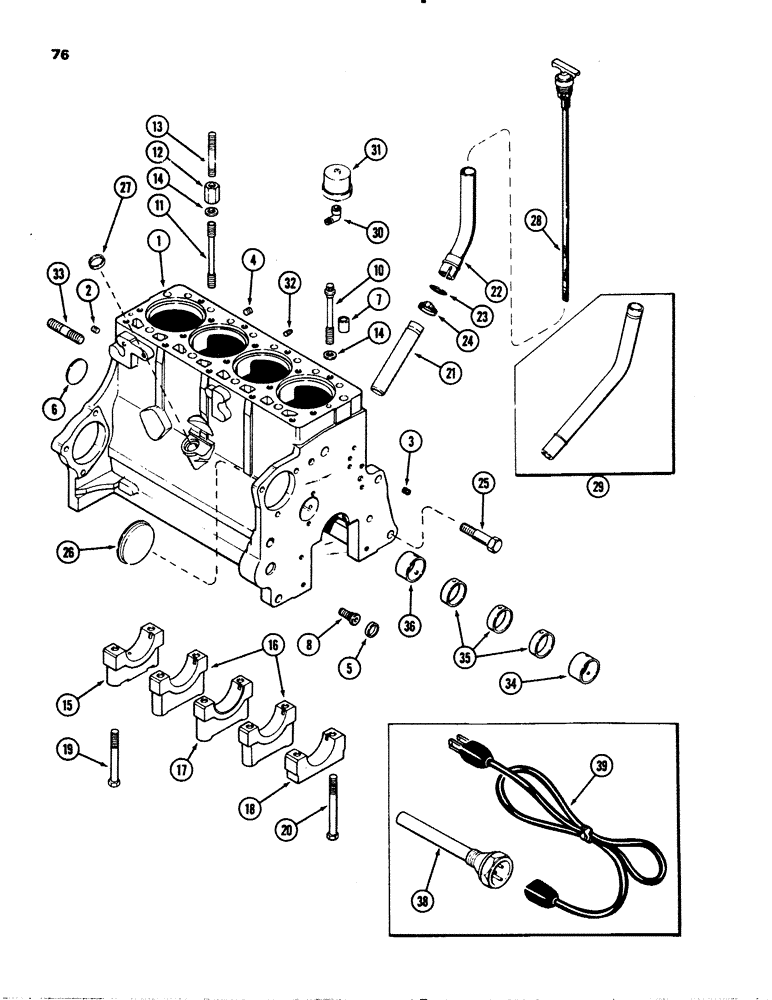

Запчасти Case IH 1845S (076) - CYLINDER BLOCK, (188) DIESEL ENGINE, ENGINE SERIAL NO. 2836084 AND AFTER, BLOCK HEATER (10) - ENGINE

A46352

CRANKCASE

BLOCK ASSEMBLY, short, Includes: stripped block, piston assembly, connecting rods and bearings, crankshaft and bearings, camshaft, oil pump and timing gears, Includes Ref. 1

1шт.

1

A46351

BASIC BLOCK

BLOCK ASSEMBLY, stripped, casting No. A152625, Includes Ref. 2-27

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG, , Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

3

G49070

PLUG

PLUG oil gallery, drilled socket head, 1/4" PT

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG water gallery, socket head, 3/8" PT

1шт.

5

41-1016

PLUG,Cup, 1"

PLUG adapter hole, 1" cup type, 25.4 mm

1шт.

6

41-1030

PLUG,Cup, 1 7/8"

PLUG camshaft hole, 1-7/8" cup type, 47.62 mm

1шт.

7

G49608

RING

RING dowel, head locating

2шт.

8

A153552

ADAPTER

ADAPTER oil filter

1шт.

10

A39047

12 PT SCREW

BOLT cylinder head, 12 point head, 1/2" x 3-1/2" NC

4шт.

10

A39048

12 PT SCREW

BOLT cylinder head, 12 point head, 1/2" x 5-1/8" NC

11шт.

10

A39049

12 PT SCREW

BOLT cylinder head 12 point head, 1/2" x 5-5/8" NC

2шт.

11

A36902

STUD

STUD cylinder head, 1/2" NC x 5-5/8"

2шт.

12

A51114

NUT

NUT cylinder head studs, 1/2" NC and 3/8" NC

2шт.

13

A51271

STUD

STUD cylinder head cover, 3/8" NC x 3-3/4"

2шт.

14

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

WASHER 1/2" x 7/8" x 1/8". 12.7 mm x 22.22 mm x 3.17 mm

19шт.

15

A38385

CAP

CAP main bearing, rear

1шт.

16

G2128

CAP

CAP main bearing, intermediate

2шт.

17

G2127

CAP

CAP main bearing, center

1шт.

18

G2126

CAP

CAP main bearing, front

1шт.

19

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

BOLT bearing caps, 1/2" x 4-1/2" NC hex

8шт.

20

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

BOLT front beairng cap, 1/2" x 5-1/8" NC hex

2шт.

21

A37149

TUBE

TUBE oil filler and dipstick, see Ref, 29, used in repair block only

1шт.

22

A37407

TUBE

EXTENSION oil filler tube, see Ref. 29, used with A37149 oil filler tube only

1шт.

23

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING tube, 1-1/8" x 1-3/8 x 1/8", 28.57 mm x 34.92 mm x 3.17 mm

1шт.

24

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP tube, 1-3/16" to 1-3/4", 30.16 mm x 44.45 mm

1шт.

25

A38303

BOLT

BOLT front support, 5/8" x 3-3/16" NC hex, not used this application

1шт.

26

41-1052

PLUG,Cup, 3 1/4"

COVER auxiliary drive opening, 3-1/4" cup type, 88.9 mm

1шт.

27

A38534

PLUG

PLUG tach drive hole, 1-1/16" cup type, 26.99 mm

1шт.

28

A136379

DIPSTICK

DIPSTICK ASSEMBLY, engine oil level

1шт.

29

NSS

NOT SOLD SEPARAT

TUBE oil filler and dipstick, order separately, used in JI Case installed block only

1шт.

30

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

ELBOW sending unit, 45 degree, Replaces: 221-401

1шт.

31

A35031

SENDER UNIT

SENDER SWITCH sending, engine oil pressure

1шт.

32

221-662

PLUG,Hex Hd, 1/4"-18

PLUG drain, cylinder block, hex head, 1/4" PT

1шт.

33

A51412

STUD

STUD 5/8" NF x 1-3/4"

1шт.

34

A41230

BUSHING,44.45mm ID x 47.75mm OD x 31.06mm L

BUSHING camshaft front, 1-1/4" wide, 31.75 mm

1шт.

35

A41231

BUSHING,44.5mm ID x 47.78mm OD x 12.45mm L

BUSHING camshaft intermediate, 1/2" wide, 12.7 mm

3шт.

36

A151068

BUSHING,44.51mm ID x 47.92mm OD x 24.64mm L

BUSHING camshaft rear, 31/32" wide, 24.61 mm

1шт.

38

A44815

HEATER

HEATER ASSEMBLY, cylinder block, Includes Ref. 39, block heater

1шт.

39

A44814

ELECTRIC CABLE

CORD heater, 12" long, 304.8 mm, block heater

1шт.
