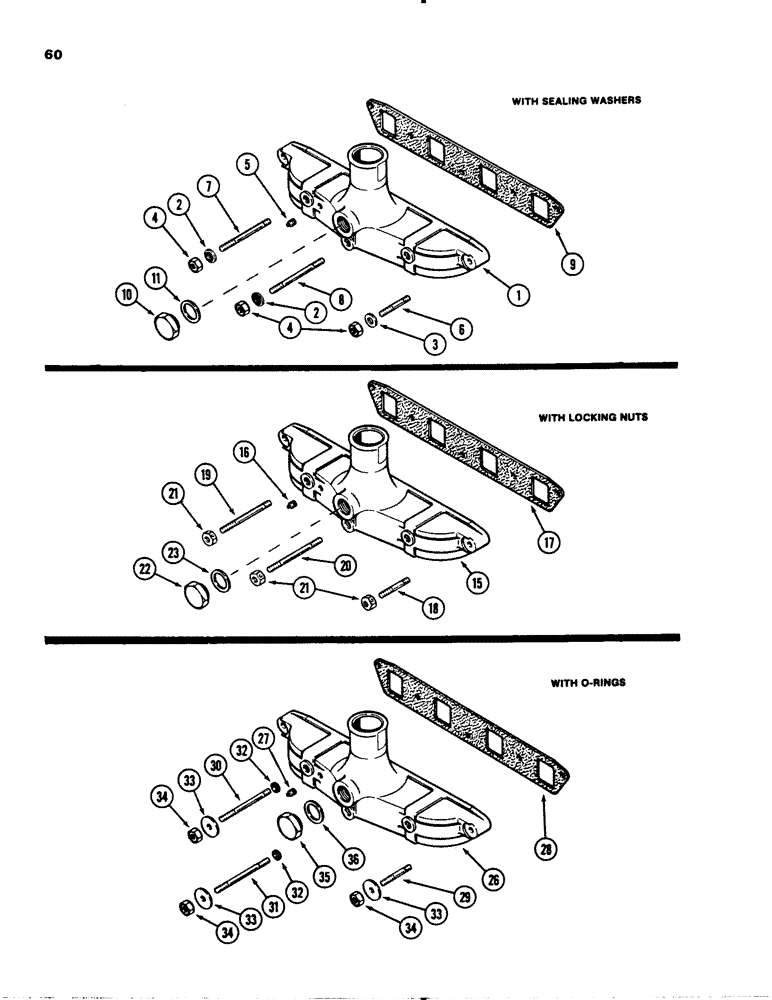

Запчасти Case IH 1845S (060) - INTAKE MANIFOLD, 188 DIESEL ENGINE, WITH SEALING WASHERS, WITH LOCKING NUTS, WITH O-RINGS (10) - ENGINE

1

A152536

MANIFOLD

ASSEMBLY, intake, Includes Ref. 2-5

1шт.

2

A50694

DISC

WASHER sealing, with rubber insert, for intermediate and center stud holes

3шт.

3

195-25

WASHER,3/8"

end stud holes, x 13/16" x 1/16", 9.52 mm x 20.64 mm x 1.59 mm 3/8"

2шт.

4

25-166

NUT,3/8"-16, G5, Hvy

3/8" NC hex

5шт.

5

221-11

PLUG,Sq Hd, 1/8"-27

square head, 1/8" PT

1шт.

6

A140924

STUD

manifold end holes, 3/8" NC x 2-7/16"

2шт.

7

A153248

STUD

manifold intermediate holes, 3/8" NC x 4-13/16"

2шт.

8

A51500

STUD

manifold center hole, 3/8" NC x 5-5/16"

1шт.

9

G46871

GASKET

, Serial Range: manifold-head

1шт.

10

A20917

PLUG

manifold, heater hole

1шт.

11

A20916

MANIFOLD GASKET

GASKET plug

1шт.

15

A152536

MANIFOLD

intake, with locking nuts

1шт.

16

221-11

PLUG,Sq Hd, 1/8"-27

square head, 1/8" PT, with locking nuts

1шт.

17

G46871

GASKET

manifold to head, with locking nuts

1шт.

18

A140924

STUD

manifold end holes, 3/8" NC x 2-7/16", with locking nuts

2шт.

19

A51499

STUD

manifold intermediate holes, 3/8" NC x 4-5/16", with locking nuts

2шт.

20

A51500

STUD

manifold center hole, 3/8" NC x 5-5/16", with locking nuts

1шт.

21

131-206

NUT,3/8"-16

NUT lock, with nylon insert, 3/8" NC, with locking nuts

5шт.

22

A20917

PLUG

manifold, heater hole, with locking nuts

1шт.

23

A20916

MANIFOLD GASKET

GASKET plug, with locking nuts

1шт.

26

A51876

MANIFOLD

ASSEMBLY, intake, order A152536, Includes Ref. 27, with o-rings

1шт.

27

221-11

PLUG,Sq Hd, 1/8"-27

square head, 1/8" PT, with o-rings

1шт.

28

G46871

GASKET

manifold to head, with o-rings

1шт.

29

A140924

STUD

manifold end holes, 3/8" NC x 2-7/16", with o-rings

2шт.

30

A51499

STUD

manifold intermediate holes, 3/8" NC x 4-5/16", with o-rings

2шт.

31

A51500

STUD

manifold center hole, 3/8" NC x 5/16, with o-rings

1шт.

32

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

center and intermediate studs, 3/8" x 9/16" x 3/32", 9.52 mm x 14.29 mm x 2.38 mm, with o-rings

3шт.

33

D41740

WASHER

3/8" x 1" x 1/8", 9.52 mm x 25.4 mm x 3.17 mm, with o-rings

5шт.

34

25-106

NUT,3/8"-16, G5

3/8" NC hex, with o-rings

6шт.

36

A20916

MANIFOLD GASKET

GASKET plug, with o-rings

1шт.
