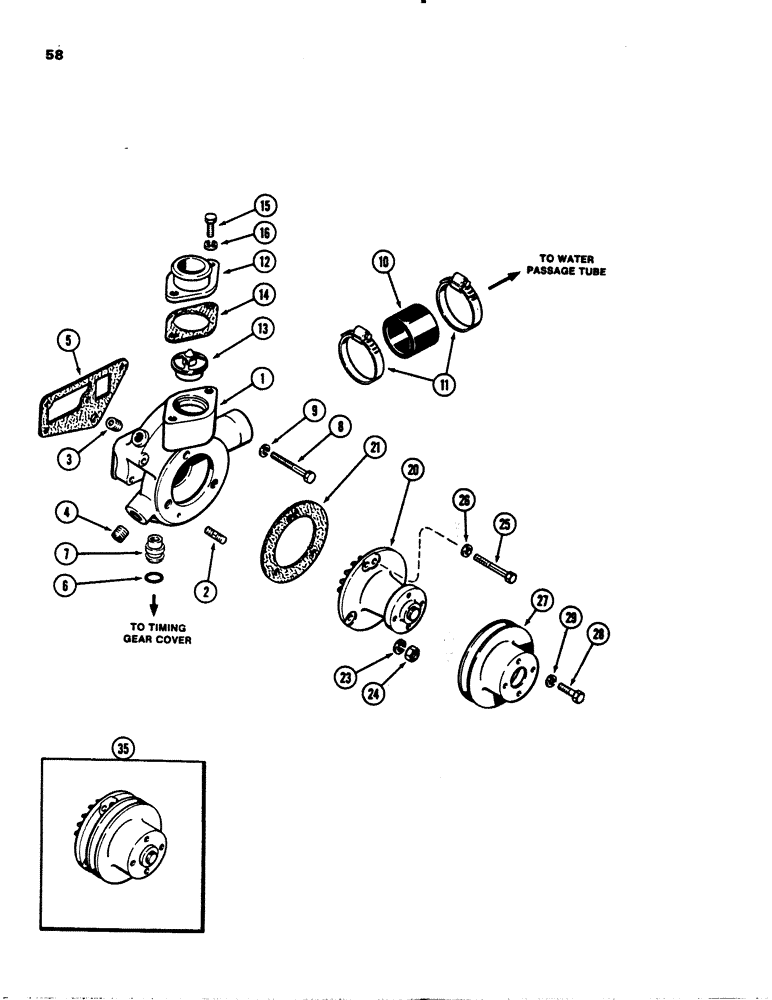

Запчасти Case IH 1845S (058) - WATER PUMP AND THERMOSTAT, (188) DIESEL ENGINE (10) - ENGINE

1

A152801

BODY

BODY ASSEMBLY, water pump, Replaces: A51735 and A144054, Includes Ref. 2-4

1шт.

2

A29433

STUD

STUD water pump to body, 3/8" NC x 1"

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

PLUG hex socket head, 3/8" PT

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

PLUG hex socket head, 1/2" PT

1шт.

5

A38084

GASKET,1.27mm Thk

GASKET pump body to cylinder head

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING body to cover, 3/4" x 1" x 1/8", 19.05 mm x 25.4 mm x 3.17 mm

1шт.

7

A152715

COUPLING

FITTING water pump body inlet

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Body to cylinder head Hex, 3/8"-16 x 2", G5

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT body to cylinder head, 3/8" x 2-3/4" NC hex

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

10

A7249

HOSE

HOSE body to water passage tube, 2" ID x 1-3/4", 50.8 mm x 44.45 mm

1шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, (46.04 mm to 69.85 mm) #36, 1.81/2.75 Type F Worm

2шт.

12

G2144

FITTING

HOUSING thermostat

1шт.

13

A57641

THERMOSTAT

RHERMOSTAT 180 degree F, 82 degree C

1шт.

14

G46907

GASKET

GASKET thermostat housing

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Housing Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

20

A146584

PUMP, WATER

PUMP ASSEMBLY, water, Replaces: A39074, this application only, also see Ref. 35, Includes Ref. 21 and 22

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

A38083

GASKET

GASKET, Serial Range: pump-body

1шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT pulley to pump, 5/16" x 1-1/4" NC hex. if required

4шт.

23

92-6

LOCK WASHER,3/8"

LOCK WASHER, , pump stud 3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

NUT pump stud, 3/8" NC hex

2шт.

25

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT pump to body, 3/8" x 2-3/4" NC hex

1шт.

26

A7085

WASHER

WASHER copper, 3/8" x 9/16" x 1/32", 9.52 mm x 14.29 mm x 0.79 mm

1шт.

27

G11339

PULLEY

PULLEY fan

1шт.

28

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, , Pulley Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

29

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

35

A51767

PUMP

PUMP ASSEMBLY, water, Includes fan pulley, for optional noise control package

1шт.
