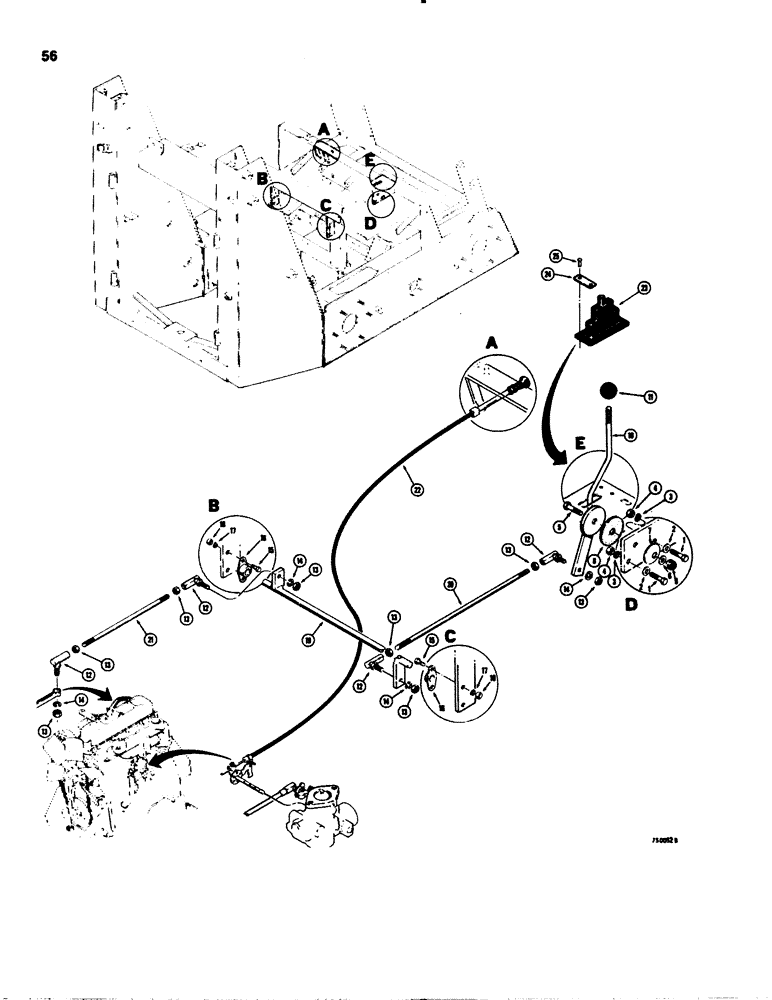

Запчасти Case IH 1845S (056) - ENGINE CONTROLS - GASOLINE MODELS, THROTTLE AND CHOKE (10) - ENGINE

1

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

2

195-25

WASHER,3/8"

flat, 3/8"

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-146

JAM NUT,Jam, 3/8"-16, G5

hex, lock, 3/8" - NC

2шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex head, 3/8" - 16 NC x 1-1/2"

1шт.

6

195-25

WASHER,3/8"

flat, 3/8"

1шт.

7

R14771

WASHER

Belleville

1шт.

8

R15071

DISC

friction

1шт.

9

131-652

LOCK NUT,3/8"-16, GB

NUT hex, self lock, 3/8" - 16 NC

1шт.

10

D63973

HANDLE

THROTTLE handle

1шт.

11

D59912

KNOB

handle

1шт.

12

A19105

BALL JOINT

BALLJOINT 5/16"

4шт.

13

129-122

NUT,5/16"-24, G5

8шт.

14

92-5

LOCK WASHER,5/16"

4шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

16

D63966

FLANGED BEARING,0.508" ID x 1.12" OD x 0.56"

BEARING flange style

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

25-104

NUT,1/4"-20, G5

4шт.

19

D63967

SHAFT cross

1шт.

20

D63969

ROD

throttle

1шт.

21

D73385

ROD

throttle

1шт.

22

D68745

CABLE

choke

1шт.

23

D75766

COVER throttle handle, noise reduction

1шт.

24

D76432

TAB cover mounting

2шт.

25

151-538

RIVET,Pop, 3/16" x .575"

POP RIVET 3/16"

4шт.
