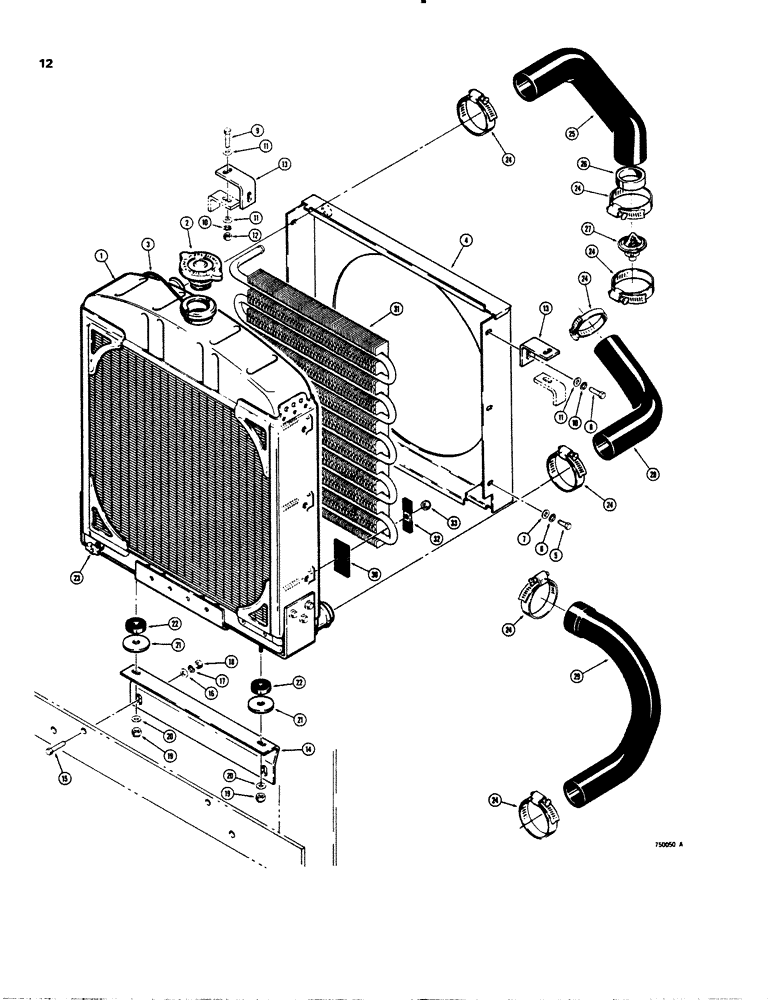

Запчасти Case IH 1845S (012) - RADIATOR AND HOSES, USED BEFORE TRACTOR SN 9836051 (10) - ENGINE

D71089

RADIATOR

ASSEMBLY, 1845 model

1шт.

D71091

RADIATOR ASSEMBLY, 1854S model, Includes Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR

1шт.

2

F23120

CAP

radiator

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE overflow

1шт.

4

D71090

SHROUD

radiator

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

195-25

WASHER,3/8"

flat, 3/8"

4шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

195-25

WASHER,3/8"

flat, 3/8"

6шт.

12

25-106

NUT,3/8"-16, G5

hex, 3/8"-16 NC

2шт.

13

D70538

ANGLE

radiator support

2шт.

14

D72261

BRACKET

radiator mounting, bottom

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex head, 3/8"-16 NC x 1-1/2"

2шт.

16

195-25

WASHER,3/8"

flat, 3/8"

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

hex, 3/8"-16 NC

2шт.

19

131-6

LOCK NUT,3/8"-16, GC

NUT hex, self lock, 3/8"-16 NC

2шт.

20

195-25

WASHER,3/8"

flat, 3/8"

2шт.

21

195-2036

WASHER,13/32" x 2" x .109"

plain, 3/8"

2шт.

22

D59705

MOUNTING PARTS

WASHER rubber

2шт.

23

217-103

COCK, DRAIN

VALVE drain

1шт.

24

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP worm screw type

4-5шт.

25

D68786

RADIATOR HOSE,2.00" ID x 8.95", SAE 20R4 CLASS R GRADE 1A

Upper 2.00" ID x 8.95", SAE 20R4 CLASS R GRADE 1A

1шт.

26

D53507

SUPPORT

hose, thermostat, gas models

1шт.

27

G11065

CASE

THERMOSTAT gas models

1шт.

28

D70723

RADIATOR HOSE,1.75" ID x 6.92", SAE 20R4 CLASS R GRADE 1A

Lower (Gas Models) 1.75" ID x 6.92", SAE 20R4 CLASS R GRADE 1A

1шт.

29

D68788

RADIATOR HOSE,49.20 mm ID x 241.30 mm, SAE 20R4 CLASS R GRADE 1A

Lower (Diesel Models) 49.20 mm ID x 241.30 mm, SAE 20R4 CLASS R GRADE 1A

1шт.

30

D70567

PAD

isolation

6шт.

31

D70554

COOLER

oil, 1845 model

1шт.

31

D71058

COOLER

oil, 1845S model

1шт.

32

D54416

CLAMP

cooler

6шт.

33

131-540

NUT hex, self lock, 5/16"-18 NC

6шт.
