Запчасти Case IH 1845S (284) - DECALS - DIESEL MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

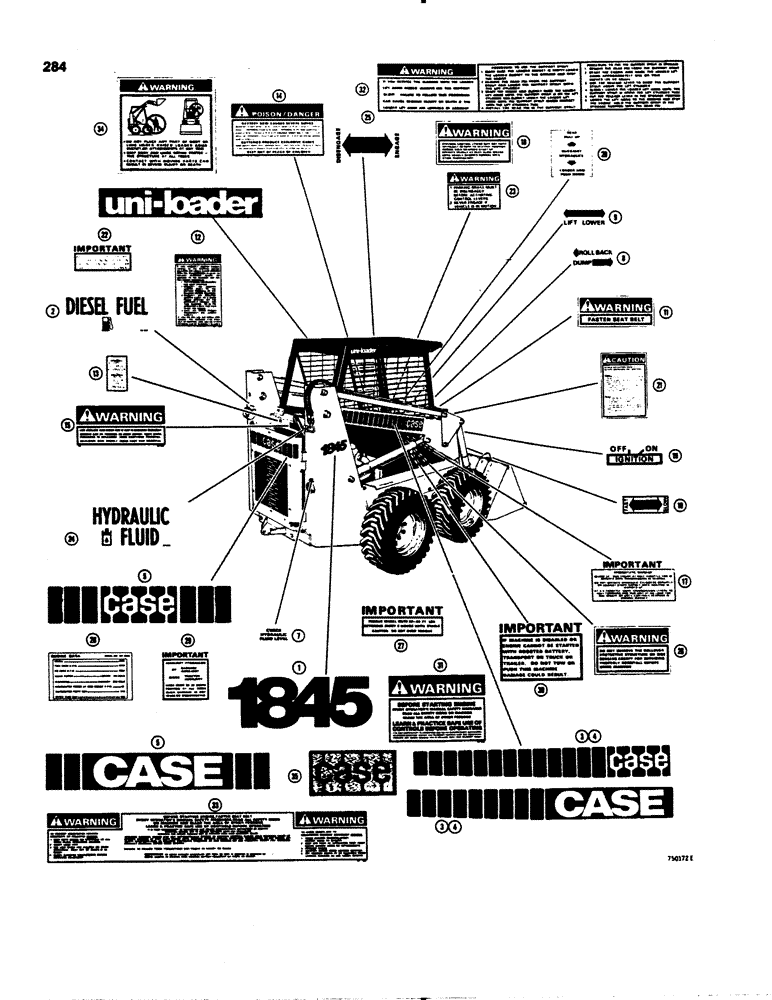

Схема запчастей Case IH 1845S - (284) - DECALS - DIESEL MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS
34
15
14
4
35
3
24
17
9
12
7
29
5
22
18
19
2
27
25
28
26
5
33
23
11
10
8
32
30
4
21
20
31
13
3
1

Артикул

Название

Примечание

Количество

D71236

DECAL

KIT decal, used before tractor sn 9842113

1шт.

D88768

KIT

decal, used on tractor sn 9842113 and after, Includes Ref. 1-34

1шт.

1

321-3153

DECAL

1845

2шт.

2

321-6374

DECAL

diesel fuel

1шт.

3

321-3157

DECAL

"Case", left hand 5", 127 mm high, used before tractor sn 9842113, except 9842105, 9842110, 9842111, 9842112

1шт.

3

321-5081

DECAL

"Case", left hand, 5", 127 mm high, used on tractor sn 9842105, 9842110, 9842111 thru 9842113 and after

1шт.

4

321-3156

DECAL

"Case", right hand, 5", 127 mm high, used before tractor sn 9842113, except 9842105, 9842110, 9842111, 9842112

1шт.

4

321-5080

DECAL

"Case", right hand, 5", 127 mm high, used on tractor sn 9842105, 9842110, 9842111 thru 9842113 and after

1шт.

5

321-3076

DECAL

"Case", 6", 152.4 mm high, used before tractor sn 9842113, except 9842105, 9842110, 9842111, 9842112

1шт.

5

321-5082

DECAL

"Case", 5", 127 mm high, used on tractor sn 9842105, 9842110, 9842111 thru 9842113 and after

1шт.

6

321-3150

DECAL

"uni-loader"

2шт.

7

321-2733

DECAL

hydraulic fluid

1шт.

8

321-2506

DECAL

rollback-dump

1шт.

9

321-2509

DECAL

lift-lower

1шт.

10

321-3171

DECAL

slow-fast

1шт.

11

321-3060

DECAL

warning, seat belt, if used

1шт.

12

321-5974

DECAL

jump start

1шт.

13

321-1061

DECAL

important, alternator

1шт.

14

321-2996

DECAL

danger, poison

1шт.

15

321-5734

DECAL

caution, remove cap slowly

1шт.

16

RESERVED

1шт.

17

321-4197

DECAL

warm-up instructions

1шт.

18

321-3062

DECAL

warning, steering control levers, if used

1шт.

19

321-2507

DECAL

ignition

1шт.

20

321-3158

DECAL

auxiliary hydraulics

1шт.

21

321-3059

DECAL

"caution", if used

1шт.

22

321-2101

DECAL

oil filter

1шт.

23

321-2599

DECAL

parking brake

1шт.

24

321-6376

DECAL

hydraulic fluid

1шт.

25

321-3174

DECAL

"disengage-engage"

1шт.

26

321-3064

DECAL "warning"

1шт.

27

321-2973

DECAL

torque wheel nuts

2шт.

28

321-2941

DECAL

engine data, used before engine sn 2836084

1шт.

28

321-2559

DECAL

engine data, used engine sn 2836084 and after

1шт.

29

321-2757

DECAL

auxiliary hydraulics, up-down

1шт.

30

321-3385

DECAL

towing and pushing, if used

1шт.

31

321-3705

DECAL

warning, before operation of machine, if used

1шт.

32

321-6214

DECAL

warning, safety strut, used on models with safety strut

1шт.

D55216

PAD,2" x 9"

PAD non slip, not shown

2шт.

33

321-6460

DECAL

warning, used in place of Ref. 11, 18, 21, 30, and 31 on later model tractors

1шт.

34

D120889

DECAL

warning

1шт.

35

321-4739

EMBLEM

MEDALLION Case mark, used on tractor sn 9842105, 9842110, 9842111 thru 9132113 and after

1шт.

36

131-431

PUSH-ON NUT,Self, Threading, 1/4"

PALNUT medallion, not shown, used on tractor sn 9842105, 9842110, 9842111 thru 9132113 and after

2шт.

Выбрано товаров: 43
