Запчасти Case IH 1845S (278) - ROPS ENCLOSURE, REAR WINDOW AND RELATED PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

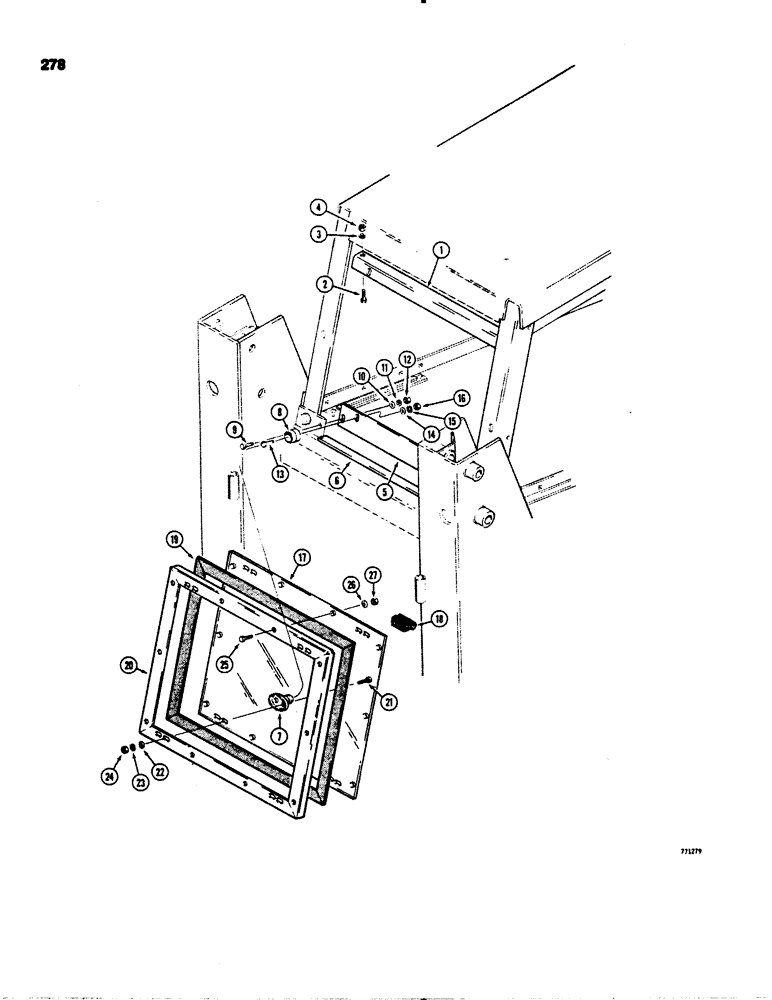

Схема запчастей Case IH 1845S - (278) - ROPS ENCLOSURE, REAR WINDOW AND RELATED PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
14
6
7
25
8
21
26
27
20
22
9
16
3
18
10
19
11
13
17
5
1
23
4
15
12
24

Артикул

Название

Примечание

Количество

1

D72868

ANGLE rear window, upper

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

D72869

BAR

SUPPORT rear window, lower

1шт.

6

D54740

SEALING STRIP

INSULATION support

1шт.

F93104

HOLDER

rear window

4шт.

7

NSS

NOT SOLD SEPARAT

HOLDER male

1шт.

8

NSS

NOT SOLD SEPARAT

HOLDER female

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

10

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

11

195-20

WASHER

lock, plated, 5/16"

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

plated, 1/4" - 20 NC x 1"

4шт.

14

195-518

WASHER,1/4", SAE

flat, plated, 1/4"

4шт.

15

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER lock, external-internal tooth, plated, 1.4"

4шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

17

D72930

WINDOW rear

1шт.

18

D73552

SEAL, GLASS

SEAL weather strip

1шт.

19

D73553

SEALING STRIP

window mount, 60 ft (18.3 metre) roll

1шт.

20

D72927

FRAME ASSY

FRAME rear window

1шт.

21

171-244

SCREW,Sl Flat Hd, #10 - 24 x 1"

No. 10-24 NC x 1", plated

8шт.

22

195-513

WASHER,#10

flat, plated, No. 10

8шт.

23

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

8шт.

24

129-17

NUT,Hex, #10 - 24

NUT hex, No. 10-24 NC, plated

8шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

10шт.

26

195-521

WASHER,5/16", SAE

flat, 5/16"

10шт.

27

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self lock, plated, 5/16" - 18 NC

10шт.

Выбрано товаров: 28
