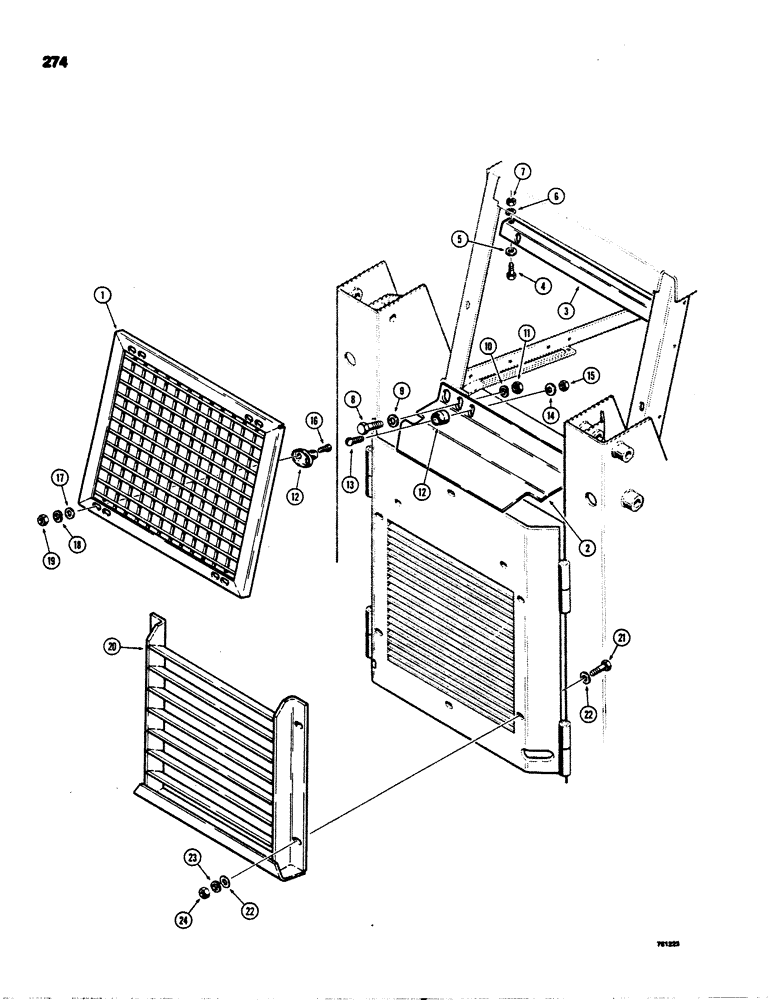

Запчасти Case IH 1845S (274) - REAR SCREENS FOR FORESTRY MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D72953

DOOR rear

1шт.

2

D72990

SHIELD

counterweight, swing out

1шт.

3

D72868

ANGLE suppoprt, rear door

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

5

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

F93104

HOLDER

door, rear

4шт.

13

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

plated, 1/4" - 20 NC x 1"

4шт.

14

195-518

WASHER,1/4", SAE

flat, plated, 1/4"

4шт.

15

193-1006

NUT,Keps, w/LW, 1/4"-20

self, 1/4" - 20 NC

4шт.

16

171-244

SCREW,Sl Flat Hd, #10 - 24 x 1"

No. 10-24 NC x 1", plated

8шт.

17

195-513

WASHER,#10

flat, no. 10, plated

8шт.

18

D78732

WASHER

special

8шт.

19

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

SCREW No. 10-24 NC x 1/2"

8шт.

20

D79957

GUARD counterweight, swing out

1шт.

21

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

22

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

8шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
