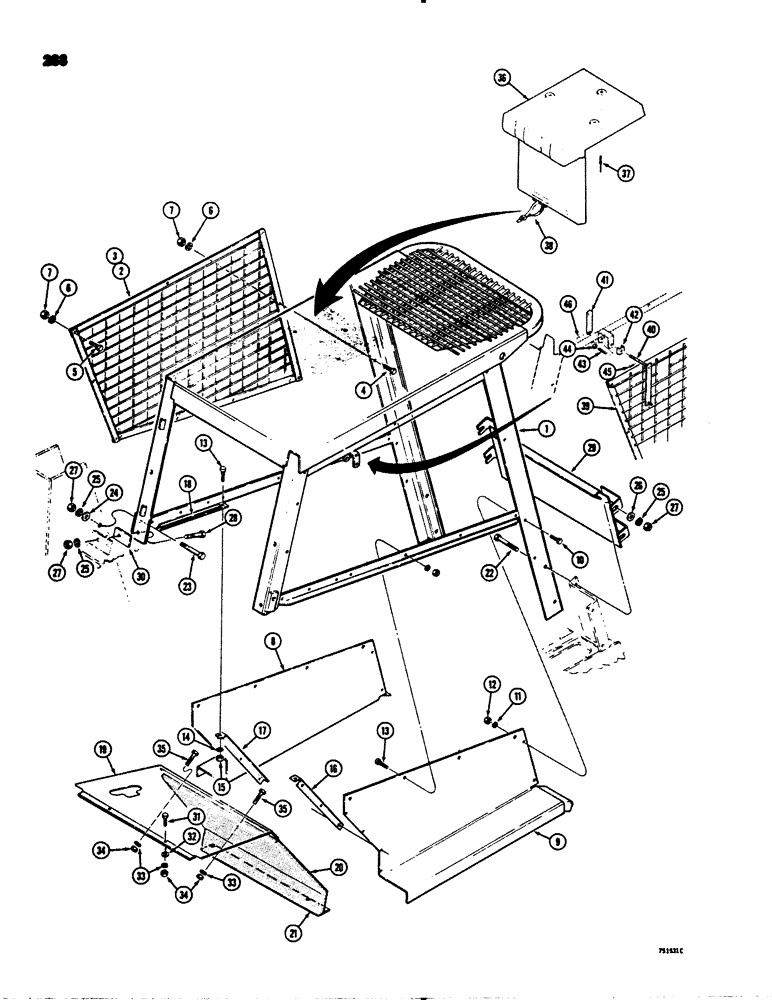

Запчасти Case IH 1845S (268) - ROLL-OVER PROTECTION STRUCTURE, LATE PRODUCTION - SEE ITEMS 15,19 & 20 FOR IDENTIFICATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F93692

ROPS

FRAME ROPS

1шт.

Part of ROPS service kit D72185

1шт.

2

D90230

SCREEN

right hand

1шт.

Part of ROPS service kit D72185

1шт.

3

F93699

SCREEN

left hand

1шт.

Part of ROPS service kit D72185

1шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

5

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

7

9635082

NUT,5/16" - 18, Gr 5

7шт.

Part of ROPS service kit D72185

1шт.

8

D72187

KIT

CLOSURE left hand

1шт.

Part of ROPS service kit D72185

1шт.

9

D72186

KIT

CLOSURE right hand

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

10шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

12

9635082

NUT,5/16" - 18, Gr 5

10шт.

13

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

12шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

15

9635082

NUT,5/16" - 18, Gr 5

12шт.

16

D72551

SUPPORT

closure, right hand

1шт.

17

D72550

SUPPORT

closure, left hand

1шт.

18

D72506

PAD

2шт.

19

D71087

HOOD

SHIELD ASSEMBLY, heat, upper

1шт.

20

D72928

GUARD

SHIELD ASSEMBLY, heat, lower, Includes Ref. 21

1шт.

21

REF

INSTRUCTION

PAD 28-1/4", 717.55 mm x 1", 25.4 mm, cut from D59897

2шт.

22

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

If used Hex, 1/2"-13 x 3 1/4", G5

4шт.

22

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

hex head, plated, if used, 1/2" - 13 NC x 3-3/4"

4шт.

23

113-477

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5, Full Thd

hex head, plated, 1/2" - 13 NC x 3-1/2"

4шт.

24

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

4шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

26

D78732

WASHER

special, if used

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

28

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

29

D81727

GUARD

foot

1шт.

30

D71955

SHIM,.059" Thk

1шт.

Part of ROPS service kit D72185

1шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

32

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

35

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

D72185

KIT

ROPS Service, Includes items 1, 2, 3, 7, 8, 30 hardware and instructions

1шт.

36

R38893

CASE

BOX manual, if used

1шт.

37

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET

3шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE nylon

1шт.

39

D90230

SCREEN

right hand, used on models with delatch support strut

1шт.

40

D89220

ARM

support strut, used on models with delatch support strut

1шт.

41

D89708

LEVER

support strut, used on models with delatch support strut

1шт.

42

D80803

BRACKET

support strut, used on models with delatch support strut

1шт.

43

D79941

SPRING

support strut, used on models with delatch support strut

1шт.

44

195-2028

WASHER,.391" x 5/8" x .065"

flat, 3/8", used on models with delatch support strut

1шт.

45

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Used on models with delatch support strut 1/8" x 5/8", Slotted

1шт.

46

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Used on models with delatch support strut 1/8" x 1", Slotted

1шт.

D59897

PADDING

PAD bulk, 54", 1371.6 mm x 36", 914.4 mm x 1", 25.4 mm, used on models with delatch support strut

1шт.
