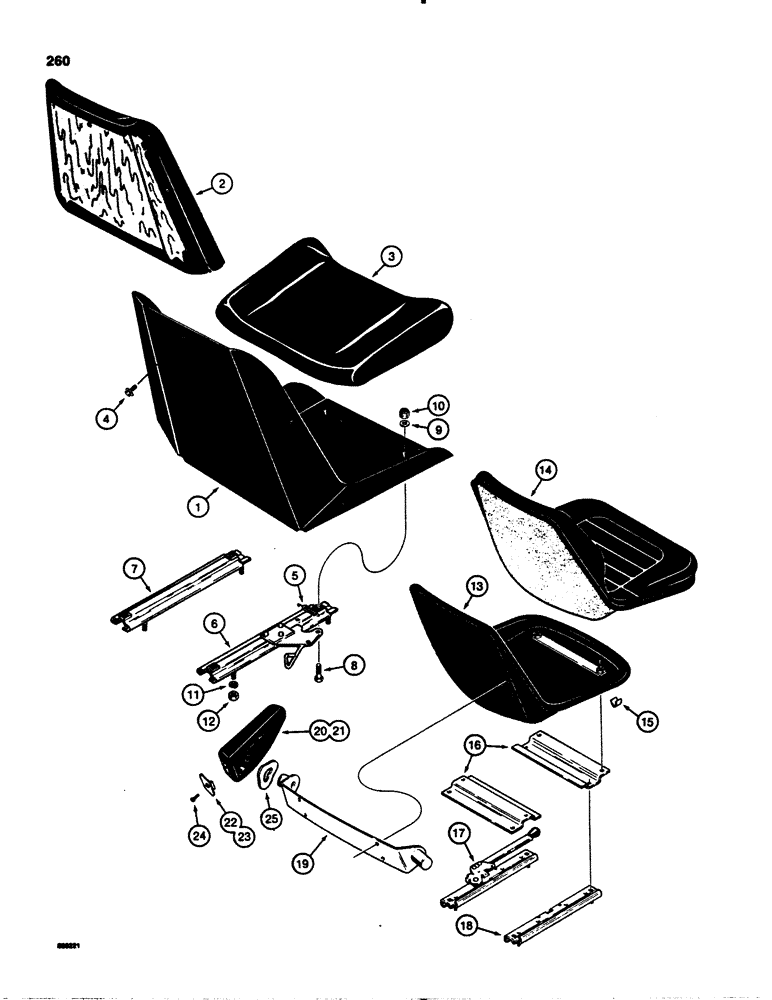

Запчасти Case IH 1845S (260) - OPERATORS SEAT, DELUXE OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

D56576

SEAT

ASSEMBLY, operator, Includes Ref. 1-12

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL seat

1шт.

2

D53583

CUSHION

back

1шт.

3

D53584

CUSHION

bottom

1шт.

4

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

MACHINE SCREW hex head, with internal lockwasher, zinc plated, 1-4" - 20 NC x 3/4"

5шт.

5

D55954

SPRING

return, adjuster

1шт.

6

D53585

CUSHION

SLIDE seat, adjuster

1шт.

7

D53586

SLIDE

seat, non adjusting

1шт.

8

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

4шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

flat, 5/16"

4шт.

10

131-31

LOCK NUT,5/16"-24, G8

NUT hex, self lock, 5/16" - 24 NF

4шт.

11

92-5

LOCK WASHER,5/16"

4шт.

12

129-122

NUT,5/16"-24, G5

4шт.

D82233

SEAT

ASSEMBLY, operator, Sears, Includes Ref. 13-25

1шт.

13

N6672

SEAT

SHELL seat, deluxe operators seat

1шт.

14

N6673

CUSHION ASSY.

CUSHION seat, deluxe operators seat

1шт.

15

N6674

CLIP

seat, deluxe operators seat

1шт.

16

N6675

BRACKET

slide mounting, deluxe operators seat

2шт.

17

S114284

SLIDE

RAIL slide, with handle, deluxe operators seat

1шт.

18

N6676

RAIL

slide, deluxe operators seat

1шт.

19

N6677

BRACKET

armrest, deluxe operators seat

1шт.

20

A45488

ARMREST

left hand, deluxe operators seat

1шт.

21

A45489

ARMREST

right hand, deluxe operators seat

1шт.

22

A45583

PLATE

cover, left hand, deluxe operators seat

1шт.

23

A45584

COVER

PLATE cover, right hand, deluxe operators seat

1шт.

24

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest, Deluxe operators seat Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

25

A47352

WASHER

spring, deluxe operators seat

2шт.
