Запчасти Case IH 1845S (258) - SEAT MOUNTING PARTS AND SEAT BELTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

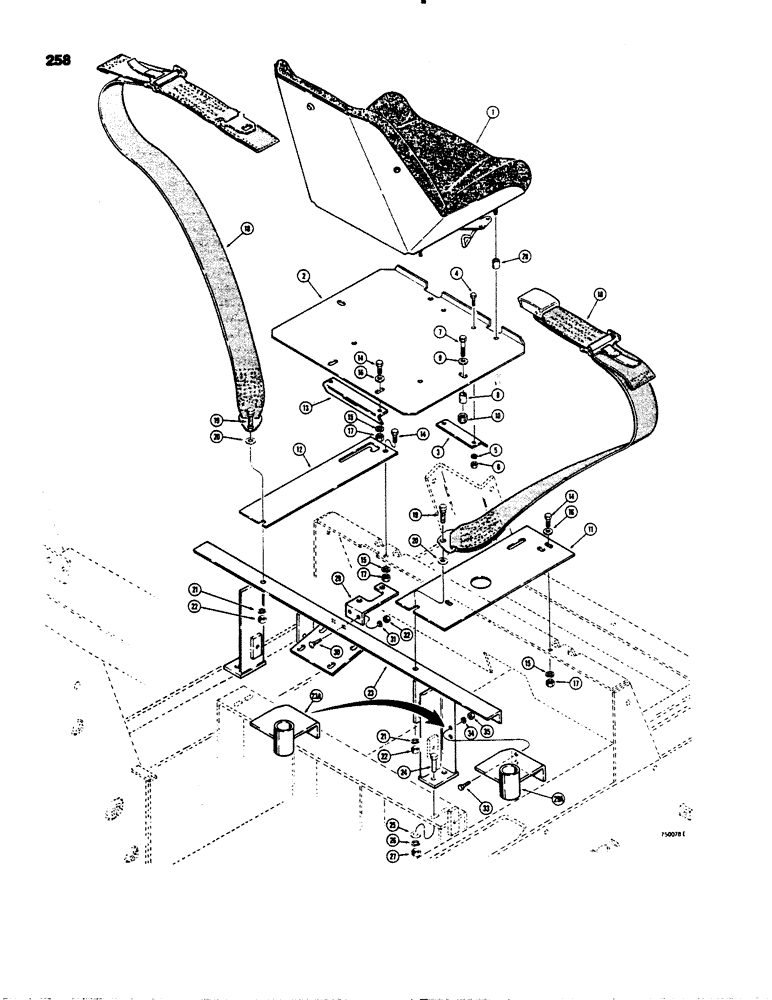

Схема запчастей Case IH 1845S - (258) - SEAT MOUNTING PARTS AND SEAT BELTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
22
22
15
16
8
20
24
27
20
17
4
9
16
18
33
23
2
17
32
10
17
14
30
5
29a
15
21
3
11
7
19
23
18
21
25
19
34
26
1
6
15
12
31
28
13
35
14
14
29

Артикул

Название

Примечание

Количество

1

D56576

SEAT

ASSEMBLY, parts list Figure 260

1шт.

2

D64963

PLATE ASSY.

PLATE seat

1шт.

3

D65236

BRACKET

ANGLE seat retainer, front

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

2шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex head, 3/8" - 16 NC x 1-1/2"

2шт.

8

195-25

WASHER,3/8"

flat, 3/8"

2шт.

9

D95554

SPACER

seat plate

2шт.

10

131-652

LOCK NUT,3/8"-16, GB

NUT hex, lock, 3/8" - 16 NC

2шт.

11

D70428

PLATE

PANEL closure, right hand

1шт.

12

D70427

PLATE

PANEL closure, left hand

1шт.

13

D65012

BRACKET

ANGLE seat plate, rear

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

195-25

WASHER,3/8"

flat, 3/8"

6шт.

17

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

18

D60614

SEAT BELT

BELT ASSEMBLY, seat, set, 3 inch, 76 mm

1шт.

18

D75997

SAFETY BELT ,1.80" W

1.80" W

1шт.

19

F42236

STEP BOLT

BOLT shoulder, special, plated

2шт.

20

195-104

WASHER,3/8"

flat, special

2шт.

21

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

22

425-117

NUT,7/16"-20, G5

hex, plated, 7/16" - 20 NC

2шт.

23

D72867

SUPPORT

seat, 1845 models with bolt on filter bracket, used before sn 9843888

1шт.

23

D72866

SUPPORT

seat, 1845S models with bolt on filter bracket, used before sn 9843888

1шт.

23

D89733

SUPPORT

seat, 1845 and 1845S models with bolt on brackets, used on sn 9843888 and after, see ref. 29 D72969 BRACKET - filter and 29A D89309 BRACKET - precleaner

1шт.

23a

D64998

SUPPORT seat, 1845 models with weld on filter bracket, not shown, used before sn 9843888

1шт.

23a

D71032

SUPPORT seat, 1845S models with wld on filter bracket, used before sn 9843888

1шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

25

195-33

WASHER,1/2"

flat, 1/2"

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

28

D33551

BUSHING

SPACER seat

4шт.

29

D72969

BRACKET filter, bolt on

1шт.

29a

D83909

BRACKET

precleaner, bolt, used on sn 9843888 and after

1шт.

30

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

31

92-5

LOCK WASHER,5/16"

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

2шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

34

92-5

LOCK WASHER,5/16"

2шт.

35

9628503

NUT,3/8"-16, G5

hex, 5/16" - 18 NC

2шт.

Выбрано товаров: 41
