Запчасти Case IH 1845S (256) - NOISE CONTROL PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

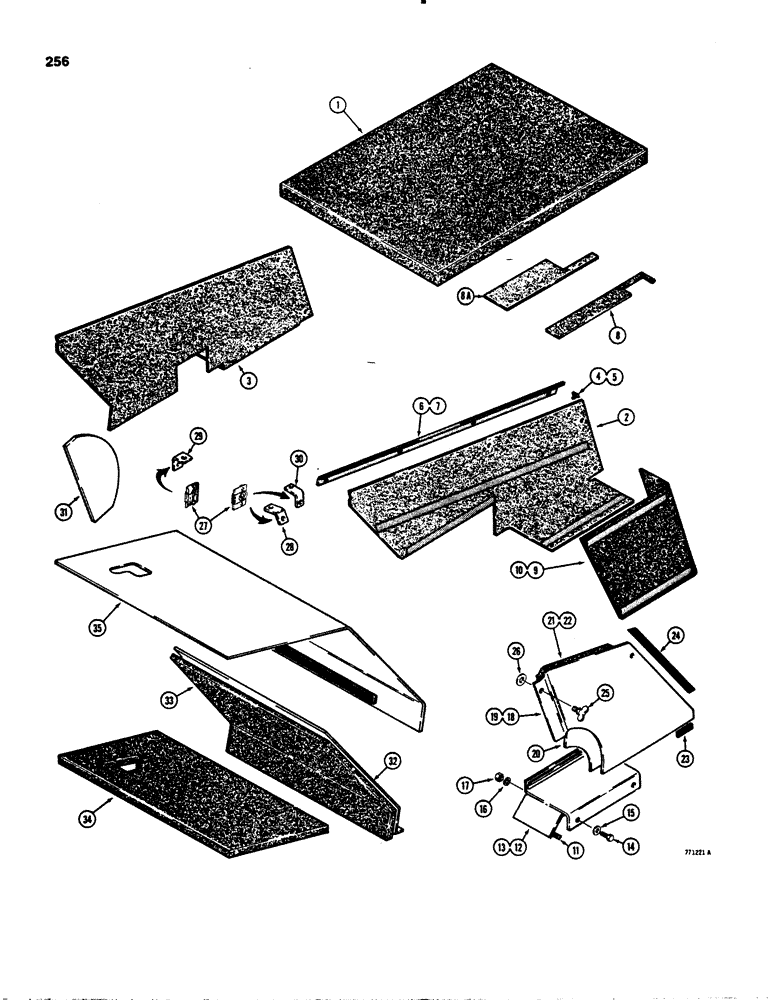

Схема запчастей Case IH 1845S - (256) - NOISE CONTROL PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
7
1
4
11
31
25
29
23
16
18
13
34
9
19
8
21
24
15
8a
22
14
5
12
27
28
17
20
10
2
35
33
30
3
32
26

Артикул

Название

Примечание

Количество

1

D73167

LINING

HEADLINER ROPS

1шт.

2

D87363

PADDING

PAD side panel, right hand

1шт.

3

D87362

PADDING

PAD side panel, left hand

1шт.

4

D76884

STRIP

trim, right hand front

1шт.

5

D76883

STRIP

trim, left hand front

1шт.

6

D76817

STRIP

trim, right hand top

1шт.

7

D76818

STRIP

trim, left hand top

1шт.

8

D76876

PAD front closure panel, right hand

1шт.

8a

D86787

PAD

front closure panel, left hand

1шт.

9

D76819

RUBBER PAD

PAD fender, right hand

1шт.

10

D76820

RUBBER PAD

PAD fender, left hand

1шт.

11

D66072

SEALING STRIP

insulation

2шт.

12

D75661

PANEL

rear closure, right hand

1шт.

13

D72936

PANEL rear closure, left hand

1шт.

14

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

15

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

4шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

17

9635082

NUT,5/16" - 18, Gr 5

4шт.

18

D75007

PANEL

engine, right hand

1шт.

19

D75006

PANEL

engine, left hand

1шт.

20

D76785

PLATE

CLOSURE engine panel

2шт.

21

D74701

LARGE PLATE

PAD engine panel, right hand

1шт.

22

D74702

LARGE PLATE

PAD engine panel, left hand

1шт.

23

D66072

SEALING STRIP

insulation

2шт.

24

D66071

SEALING STRIP

insulation

2шт.

25

D79733

STUD

wing

4шт.

26

D77754

GROMMET

RETAINER stud

4шт.

27

D77757

HOLDER

RECEPTACLE stud

4шт.

28

D72931

BRACKET

engine panel, right hand

1шт.

29

D72932

BRACKET

engine panel, left hand

1шт.

30

D77246

BRACKET

TAB engine panel mounting

2шт.

31

D76786

PLATE

CLOSURE engine panel, on frame

2шт.

32

D71088

SHIELD heat, lower

1шт.

33

D74720

PADDING

PAD lower heat shield

1шт.

34

D74722

PAD upper heat shield

1шт.

35

D73165

PLATE ASSY.

BARRIER heat shield

1шт.

Выбрано товаров: 36
