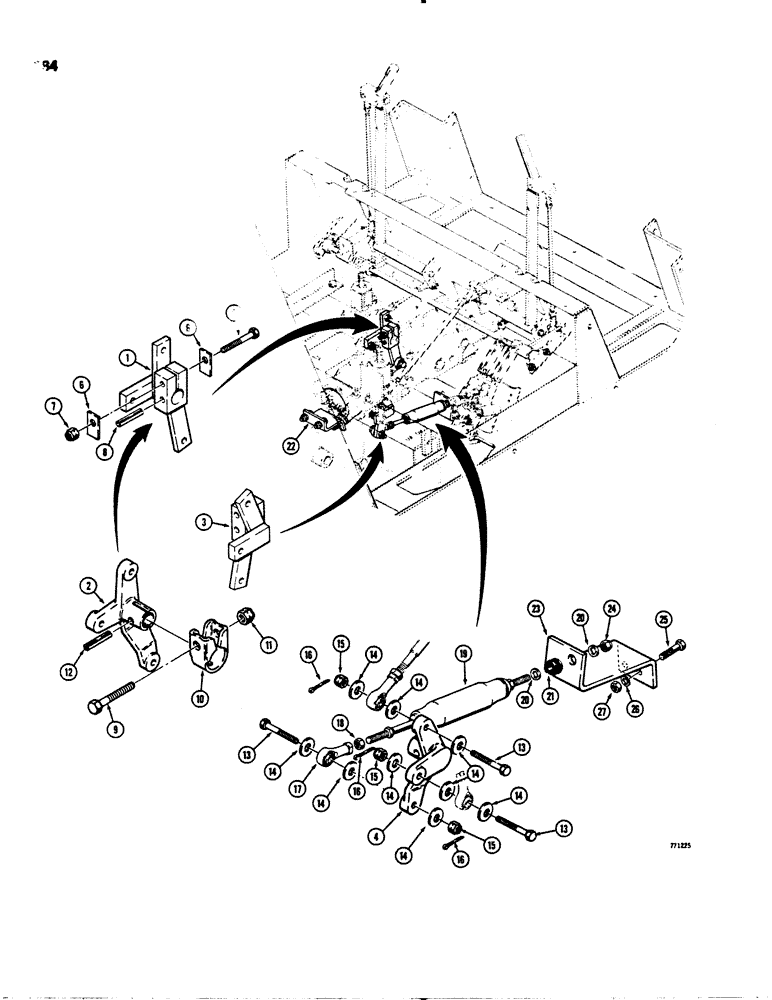

Запчасти Case IH 1845S (184) - CONTROLS - FORWARD AND REVERSE, PUMP LEVERS, SHOCK ABSORBERS, AND MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D73393

LEVER

pump, welded assembly, left hand, for service use Ref. 2, 9, 10, 11 and 12

1шт.

2

D77927

LEVER

pump, cast piece, left hand

1шт.

3

D73394

LEVER

pump, welded assembly, right hand, for service use Ref. 4, 9, 10, 11 and 12

1шт.

4

D77928

LEVER

pump, cast piece, right hand

1шт.

5

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

D73393 and D73394 levers Hex, 3/8"-16 x 2 1/4", G5

2шт.

6

D66770

BRACKET

PLATE pin retaining, D73393 and D73394 levers

4шт.

7

131-6

LOCK NUT,3/8"-16, GC

NUT hex, self lock, D73393 and D73394 levers, 3/8" - 16 NC

2шт.

8

138-174

LOCK PIN,3/8" x 1 1/2", Slotted

PIN, , D73393 and D73394 levers 3/8" x 1 1/2", Slotted

2шт.

9

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

hex head,D77927 and D77928 levers, 5/8" - 11 NC x 2-1/2"

2шт.

Ref #9, part number 14-1040, should be 13-1040, bj 11-6-96

1шт.

10

D72703

CLAMP

pin retaining, D77927 and D77928 levers

2шт.

11

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , D77927 and D77928 levers 5/8"-11, GC

2шт.

12

138-173

LOCK PIN,3/8" x 1 3/8", Slotted

PIN, , D77927 and D77928 levers 3/8" x 1 3/8", Slotted

2шт.

13

D77933

BOLT

hex head special

6шт.

14

D41740

WASHER

hardened

18шт.

15

131-6

LOCK NUT,3/8"-16, GC

NUT hex, self lock, 3/8" - 16 NC

6шт.

16

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

6шт.

17

D66834

BALL

JOINT female, 3/8" - 26 NF

2шт.

18

25-116

NUT,Hex, 3/8"-24, G5

hex, 1845 models, 3/8" - 24 NF

2шт.

18

129-535

NUT,5/16"-24, Stainless

hex, stainless, 1845S models, 3/8" - 24 NF

2шт.

19

D66538

SHOCK ABSORBER

2шт.

20

195-25

WASHER,3/8"

flat, 3/8"

4шт.

21

49566

GROMMET

rubber

2шт.

22

D65918

BRACKET

left hand shock absorber

1шт.

23

D66038

BRACKET

right hand shock absorber

1шт.

24

131-528

LOCK NUT,3/8"-24

NUT, LOCK, 3/8"-24

2шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.
