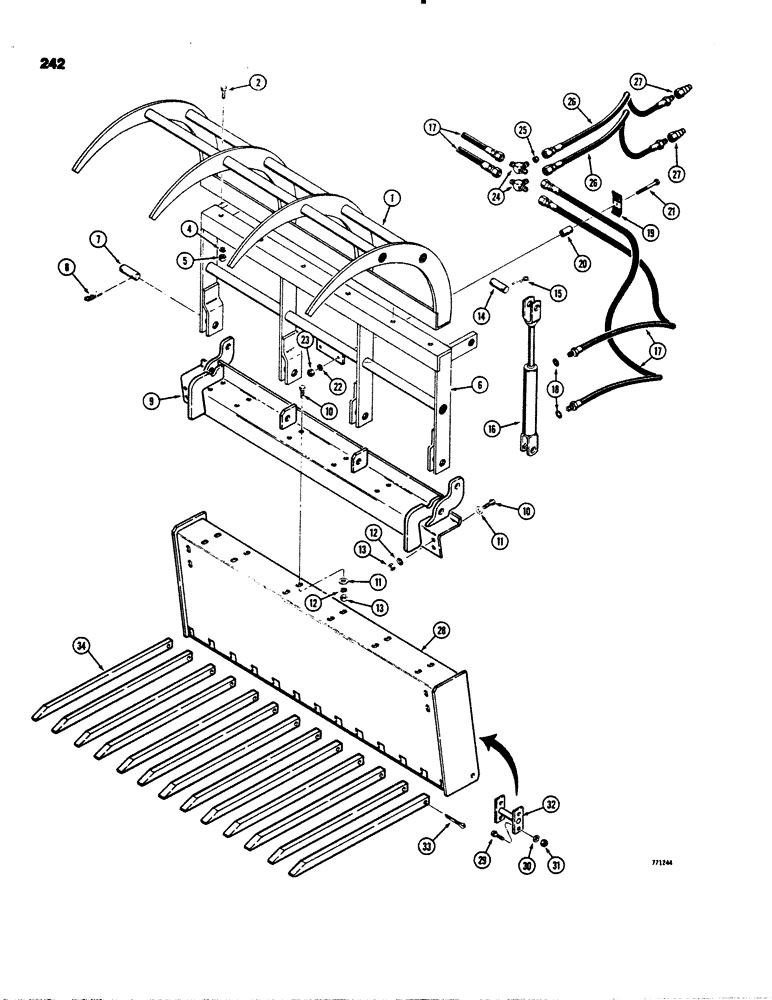

Запчасти Case IH 1845S (242) - MANURE FORK AND GRAPPLE (89) - TOOLS

1

T41575

TINE

FORK grapple

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

3

RESERVED

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

6

D70960

FRAME

grapple mounting

1шт.

7

D61036

PIN

mounting, Serial Range: frame-upright

4шт.

8

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair Int, 7/16" x .177"

8шт.

Ref. 8, Replaced by 1978738C1, 06/30/97

1шт.

9

D72307

FRAME

upright

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

16шт.

11

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

16шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

14

D61036

PIN

mounting, cylinder

4шт.

15

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair Int, 7/16" x .177"

8шт.

16

D71057

CYLINDER

grapple, see parts list Figure 226

2шт.

17

D70254

HOSE,9.53mm ID x 762mm L, SAE 100R2

at cylinders, 30", 762 mm long, Includes Ref. 18

4шт.

19

D40236

CLAMP

hose

2шт.

20

D34244

SPACER

hose

2шт.

21

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex head, plated, 3/8" - 16 NC x 1-1/2"

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

218-594

TEE,3/4"-16, 37 Degree

FITTING male, 3 way

2шт.

25

D71629

FITTING

RESTRICTOR

1шт.

26

D72087

HOSE

to coupling, 48", 1219 mm long

2шт.

27

D60708

COUPLING, BREAK AWAY

COUPLING quick disconnect, male

2шт.

28

D66170

FRAME

BACK manure fork

1шт.

29

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

30

D43266

WASHER

hardened

8шт.

31

129-107

NUT,5/8"-11, G5

8шт.

32

D71787

PIN

tool tach

2шт.

33

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

13шт.

34

T40795

TINE

manure

13шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
