Запчасти Case IH 1845S (240) - PALLET FORK AND BRICK GUARD, D18536 PALLET FORK - ID PLATE ON BACK OF FRAME (89) - TOOLS

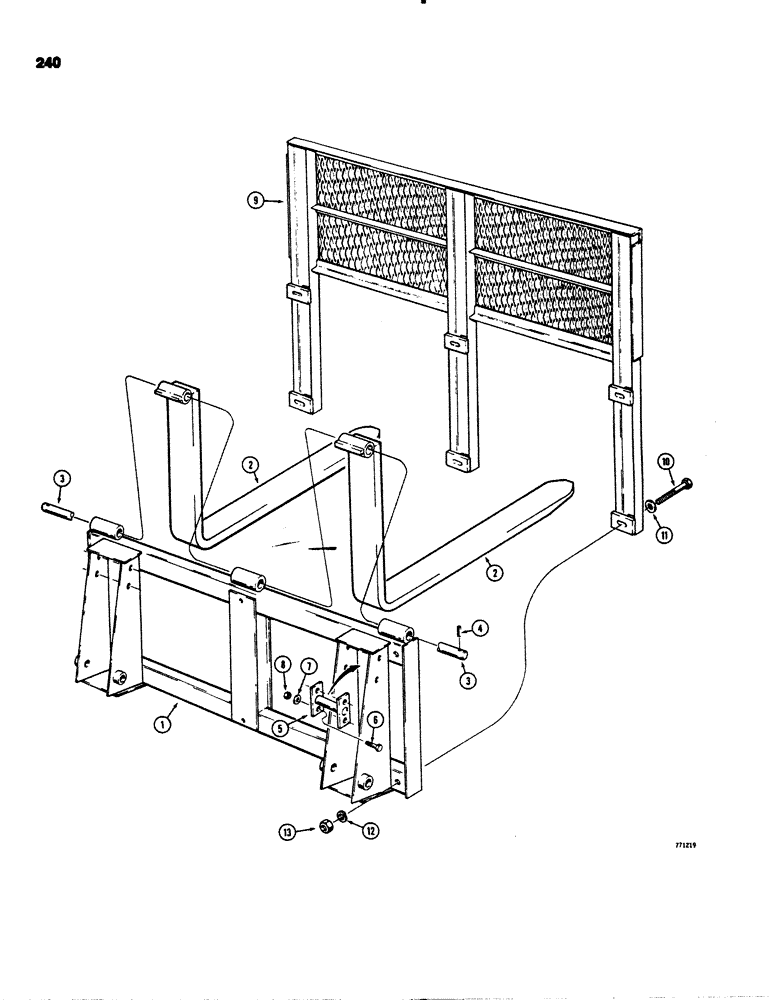

Схема запчастей Case IH 1845S - (240) - PALLET FORK AND BRICK GUARD, D18536 PALLET FORK - ID PLATE ON BACK OF FRAME (89) - TOOLS
9
2
7
4
3
6
12
2
11
8
5
13
1
3
10

Артикул

Название

Примечание

Количество

1

D74197

FRAME ASSY

FRAME pallet fork, see Figure 2 for ordering machinery item

1шт.

2

D77683

FORK

pallet

2шт.

3

T41522

ROD

fork mounting

1шт.

4

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

5

D71787

PIN

tool tach

2шт.

6

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER heat treated, 5/8"

8шт.

8

129-107

NUT,5/8"-11, G5

8шт.

9

MACHITEM

GUARD brick, see Figure 2 for ordering

1шт.

10

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

6шт.

11

195-106

WASHER,1/2"

plain, plated, 1/2"

6шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

Выбрано товаров: 13
