Запчасти Case IH 1845S (238) - PALLET FORK AND BRICK GUARD, D18294 PALLET FORK - IDENTIFICATION PLATE ON BACK OF FRAME (89) - TOOLS

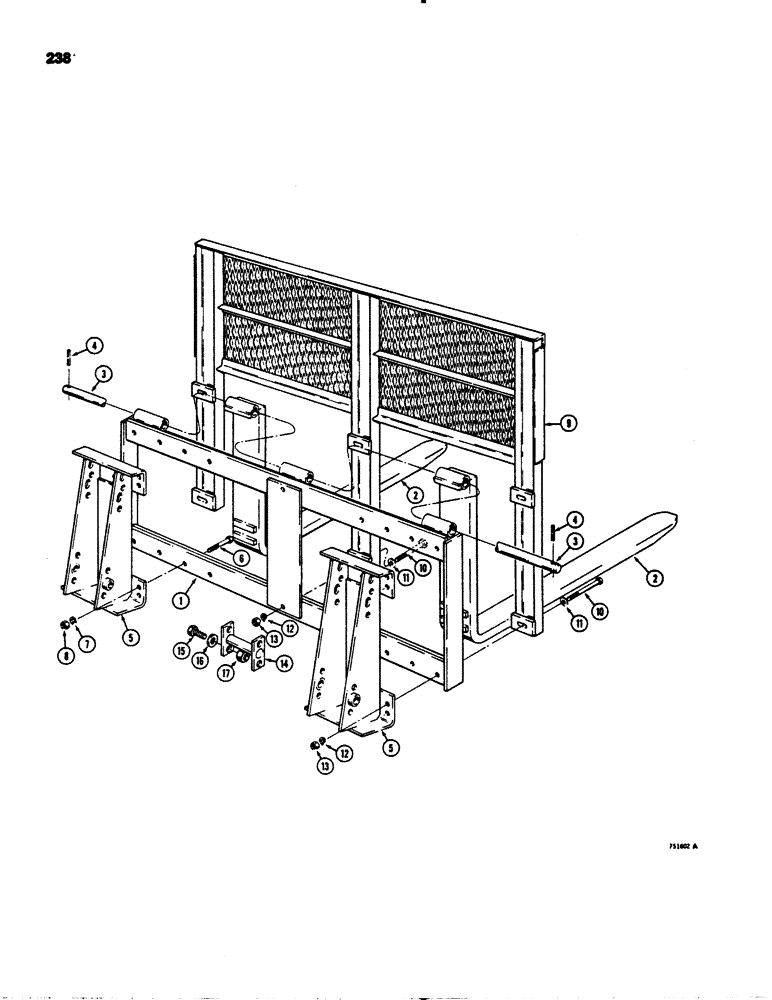

Схема запчастей Case IH 1845S - (238) - PALLET FORK AND BRICK GUARD, D18294 PALLET FORK - IDENTIFICATION PLATE ON BACK OF FRAME (89) - TOOLS
16
13
17
2
12
8
9
4
6
15
13
11
14
10
3
11
12
5
5
7
3
1
4
2
10

Артикул

Название

Примечание

Количество

1

MACHITEM

FRAME pallet fork, see Figure 2 for ordering

1шт.

2

D77683

FORK

pallet

2шт.

3

T41522

ROD

fork mounting

1шт.

4

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

5

D71728

NO LONGER SERVICED

EAR mounting

2шт.

6

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

6шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

9

MACHITEM

GUARD brick, see Figure 2 for ordering

1шт.

10

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

6шт.

11

195-106

WASHER,1/2"

flat, plated, 1/2"

6шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

14

D71787

PIN

tool tach

2шт.

15

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

hex head, 5/8" - 11 NC x 1-1/2"

8шт.

16

NLS

NO LONGER SERVICED

hardened

8шт.

17

129-107

NUT,5/8"-11, G5

8шт.

Выбрано товаров: 17
