Запчасти Case IH 1845S (236) - 4-IN-1 LOADER BUCKET (82) - FRONT LOADER & BUCKET

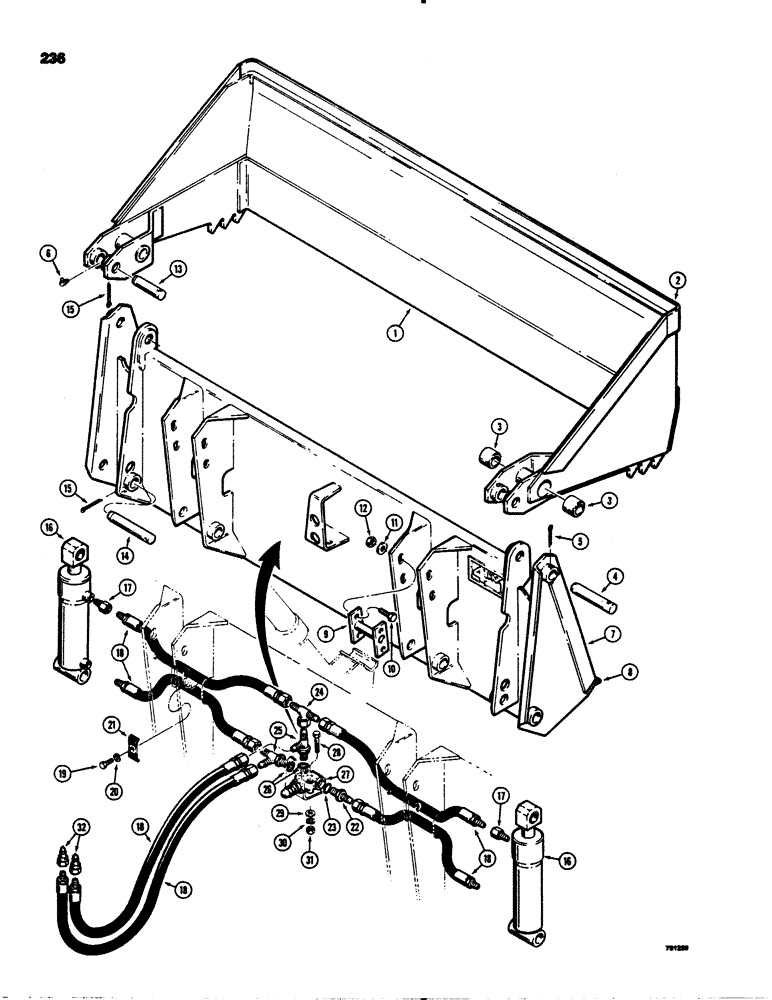

Схема запчастей Case IH 1845S - (236) - 4-IN-1 LOADER BUCKET (82) - FRONT LOADER & BUCKET
15
27
3
9
15
14
7
5
26
24
21
13
12
18
16
3
32
28
16
18
4
10
17
19
30
23
29
22
8
31
25
18
11
2
1
18
6
20
17

Артикул

Название

Примечание

Количество

D19122

BUCKET

ASSEMBLY, 4-in-1, machinery item, see Figure 2, Includes P/N D77868, Ref. 4-30

1шт.

D77868

CLAMP

CLAM ASSEMBLY bucket, Includes Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM bucket

1шт.

2

D65097

EDGE, CUTTING

CUTTING EDGE clam

1шт.

3

D34203

BUSHING

clam pivot

4шт.

4

T42228

PIN

Pivot, Serial Range: Clam-blade

2шт.

5

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

D79117

BLADE ASSEMBLY, bucket, Includes Ref. 7-8

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE bucket

1шт.

8

D77870

BLADE

CUTTING EDGE blade

1шт.

9

D71787

PIN

tool tach

2шт.

10

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

11

D43266

WASHER

hardened

8шт.

12

25-1010

NUT,5/8"-11, G5

8шт.

13

T42227

PIN

Cylinder mounting, Upper

2шт.

14

T42234

PIN

cylinder mounting, lower

2шт.

15

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

4шт.

16

G33748

CYLINDER

clam, parts list Figure 222

2шт.

17

217-1012

ADAPTER,1/4" - 18 Male NPTF x 3/8" - 18 Female NPTF

straight, male, female

2шт.

18

D4009

HOSE hydraulic, 33-1/2", 851 mm long

6шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

D40236

CLAMP

hose

2шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Straight, Male, Incl. Ref 22 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

24

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

FITTING male, female, 3 way

1шт.

25

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING male, 3 way, adjustable, Includes Ref. 26

2шт.

27

D77897

VALVE

relief, parts list Figure 212

1шт.

28

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

29

195-18

WASHER,1/4"

flat, 1/4"

2шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

25-104

NUT,1/4"-20, G5

2шт.

32

D60708

COUPLING, BREAK AWAY

COUPLING quick disconnect, male

2шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

fitting

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

fitting

1шт.

Выбрано товаров: 35
