Запчасти Case IH 1845S (234) - BUCKETS, FERTILIZER AND GRAIN BUCKET, STOCKYARD BUCKET, SNOW AND LITTER BUCKET (82) - FRONT LOADER & BUCKET

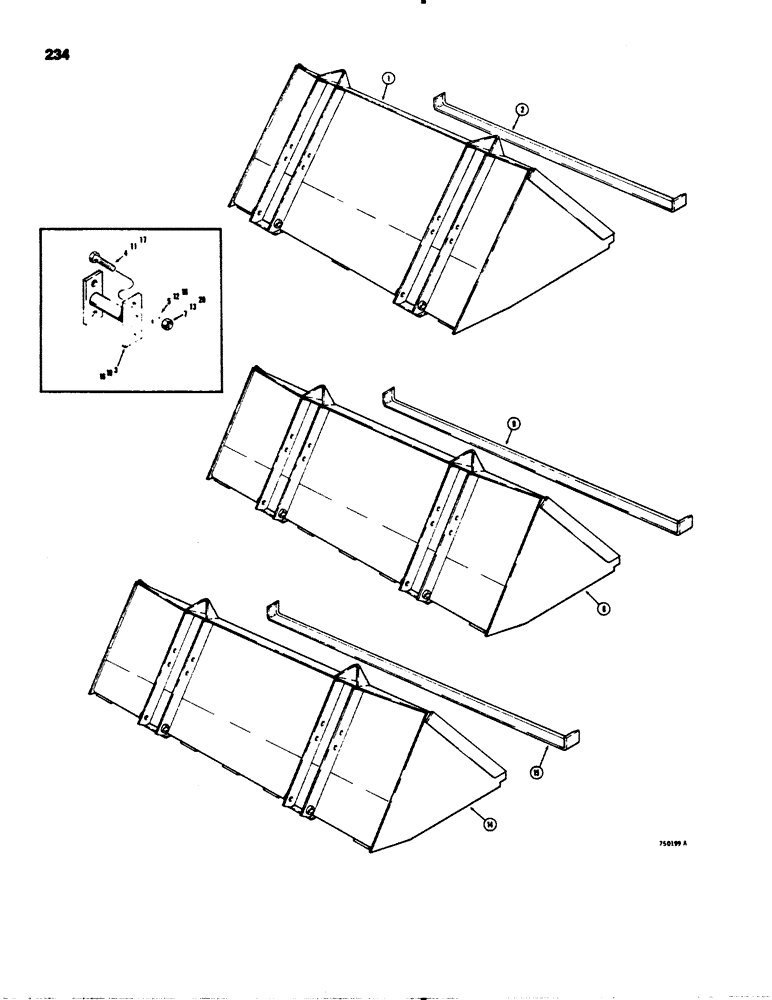

Схема запчастей Case IH 1845S - (234) - BUCKETS, FERTILIZER AND GRAIN BUCKET, STOCKYARD BUCKET, SNOW AND LITTER BUCKET (82) - FRONT LOADER & BUCKET
10
20
11
5
16
14
4
9
18
2
3
7
12
15
8
1
17
13

Артикул

Название

Примечание

Количество

D17935

BUCKET 63", 1600.2 mm wide, machinery item, see Figure 2, Includes Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET fertilizer and grain

1шт.

2

D63750

EDGE, CUTTING

EDGE cutting

1шт.

3

D17187

PIN tool tach

2шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

5

D53266

WASHER hardened

8шт.

6

RESERVED

1шт.

7

129-107

NUT,5/8"-11, G5

8шт.

D17933

BUCKET 80", 2032 mm wide, machinery item, see Figure 2, stockyard bucket

1шт.

8

NSS

NOT SOLD SEPARAT

BUCKET stockyard, Includes Ref. 9-13

1шт.

9

D67972

EDGE, CUTTING

EDGE cutting, stockyard bucket

2шт.

10

D71787

PIN

tool tach, stockyard bucket

2шт.

11

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Stockyard bucket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER hardened, stockyard bucket

8шт.

13

129-107

NUT,5/8"-11, G5

Stockyard bucket 5/8"-11, G5

8шт.

D17934

BUCKET 80", 2032 mm wide, machinery item, see Figure 2, Includes Ref. 14-20

1шт.

14

NSS

NOT SOLD SEPARAT

BUCKET snow and litter bucket

1шт.

15

D67972

EDGE, CUTTING

EDGE cutting, snow and litter bucket

1шт.

16

D71787

PIN

tool tach, snow and litter bucket

2шт.

17

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Snow and litter bucket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

18

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER hardened, snow and litter bucket

8шт.

19

RESERVED, snow and litter bucket

1шт.

20

129-107

NUT,5/8"-11, G5

Snow and litter bucket 5/8"-11, G5

8шт.

Выбрано товаров: 23
