Запчасти Case IH 1845S (232) - BUCKETS, DIRT BUCKET, UTILITY BUCKETS (82) - FRONT LOADER & BUCKET

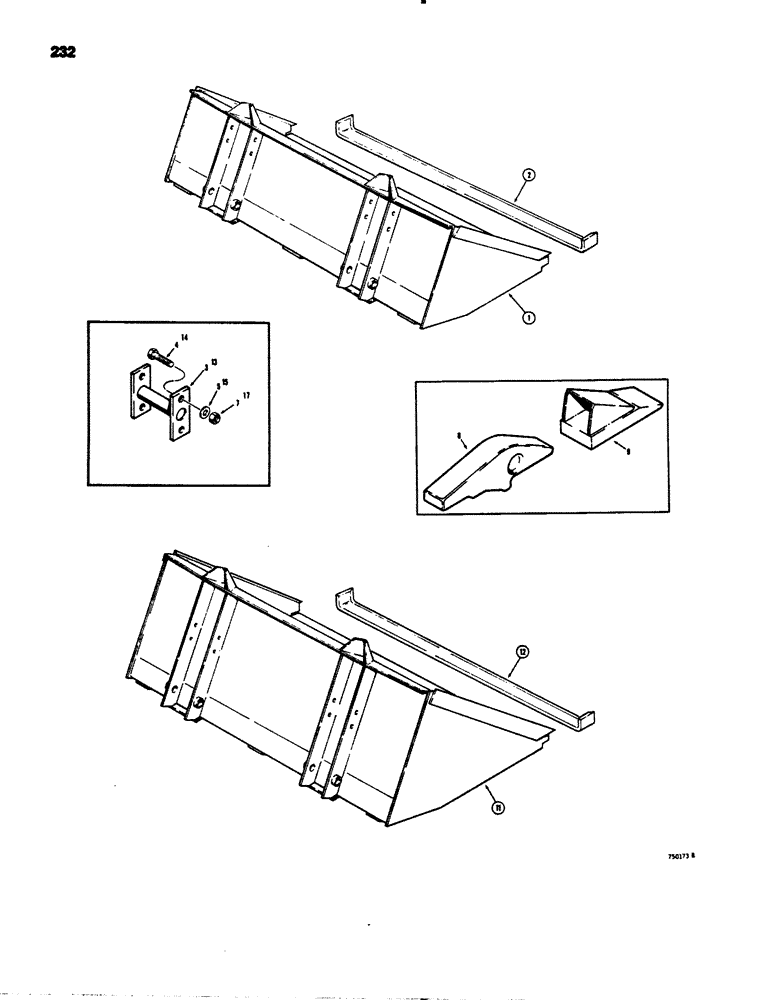

Схема запчастей Case IH 1845S - (232) - BUCKETS, DIRT BUCKET, UTILITY BUCKETS (82) - FRONT LOADER & BUCKET
3
7
1
15
5
4
13
17
8
9
12
11
14
2

Артикул

Название

Примечание

Количество

D17617

BUCKET 63", 1600.2 mm wide, machinery item, see Figure 2, Includes Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt

1шт.

2

D63750

EDGE, CUTTING

EDGE cutting

1шт.

3

D71787

PIN

tool tach

2шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

5

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER hardened

8шт.

6

RESERVED

1шт.

7

129-107

NUT,5/8"-11, G5

8шт.

T40472

TOOTH

ASSEMBLY, Includes Ref. 8-9

8шт.

8

T41165

TOOTH

SHANK tooth

1шт.

9

T41166

TOOTH

POINT tooth

1шт.

10

RESERVED

1шт.

D17618

BUCKET 73", 1854.2 mm wide, machinery item, see Figure 2, Includes Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt

1шт.

2

D65097

EDGE, CUTTING

EDGE cutting

1шт.

3

D71787

PIN

tool tach

2шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

5

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER hardened

8шт.

6

RESERVED

1шт.

7

129-107

NUT,5/8"-11, G5

8шт.

T40472

TOOTH

ASSEMBLY, Includes Ref. 8-9

8шт.

8

T41165

TOOTH

SHANK tooth

1шт.

9

T41166

TOOTH

POINT tooth

1шт.

10

RESERVED

1шт.

D17619

BUCKET 63", 1600.2 mm wide, machinery item, see Figure 2, Includes Ref. 11-17

1шт.

11

NSS

NOT SOLD SEPARAT

BUCKET utility

1шт.

12

D63759

EDGE cutting

1шт.

13

D71787

PIN

tool tach

2шт.

14

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

15

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER hardened

8шт.

16

RESERVED

1шт.

17

129-107

NUT,5/8"-11, G5

8шт.

D17620

BUCKET 73", 1854.2 mm wide, machinery item, see Figure 2, Includes Ref. 11-17

1шт.

11

NSS

NOT SOLD SEPARAT

BUCKET utility

1шт.

12

D65097

EDGE, CUTTING

EDGE cutting, utility buckets

1шт.

13

D71787

PIN

tool tach, utility buckets

2шт.

14

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Utility buckets Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

15

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER hardened, utility buckets

8шт.

16

RESERVED, utility buckets

1шт.

17

129-107

NUT,5/8"-11, G5

Utility buckets 5/8"-11, G5

8шт.
