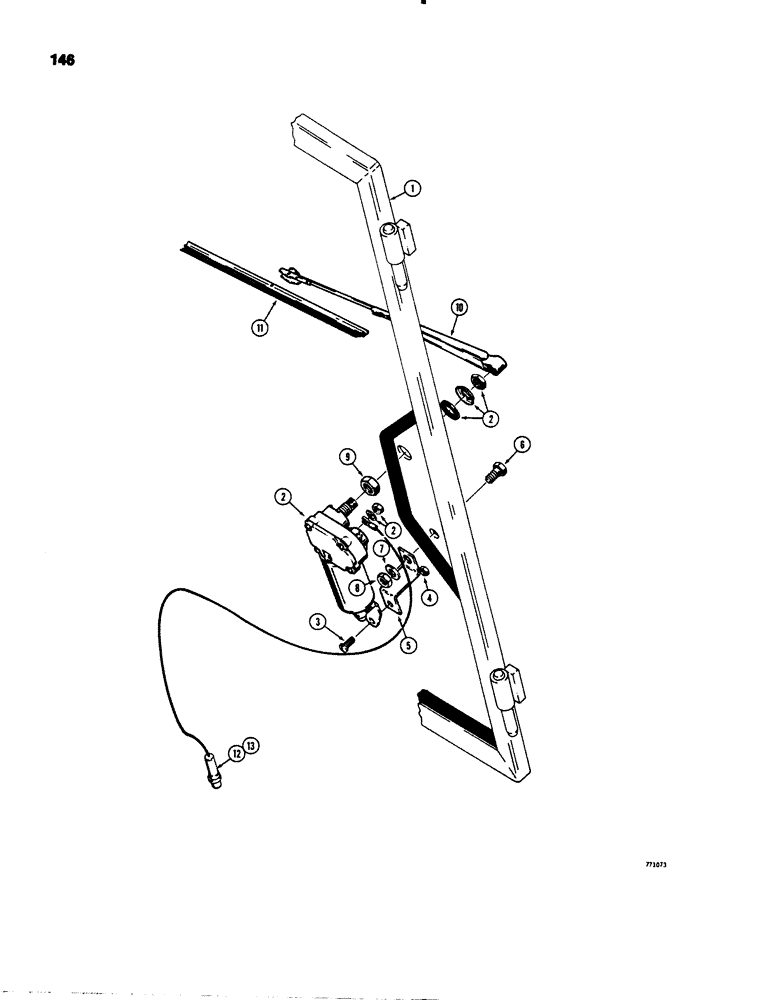

Запчасти Case IH 1845S (146) - WINDSHIELD WIPER (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

DOOR operator's cab, see Figure 276

1шт.

2

F93758

WIPER MOTOR

MOTOR wiper

1шт.

3

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

No. 10 - 24 NC x 1/2"

1шт.

4

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT self lock, No. 10 - 24 NC

1шт.

5

F43463

SUPPORT

wiper motor

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

1шт.

9

D74631

NUT

hex, special, 5/8" - 24

1шт.

10

D78019

WIPER ARM

ARM wiper, adjustable

1шт.

11

F43574

WIPER BLADE

BLADE wiper, 14 inches, 356 mm

1шт.

12

D73932

FUSE HOLDER AND WIRE 9 amp fuse, Includes Ref. 13

1шт.

13

223-9

FUSE,9 Amp, Type SFE

9 amp SFE

1шт.
