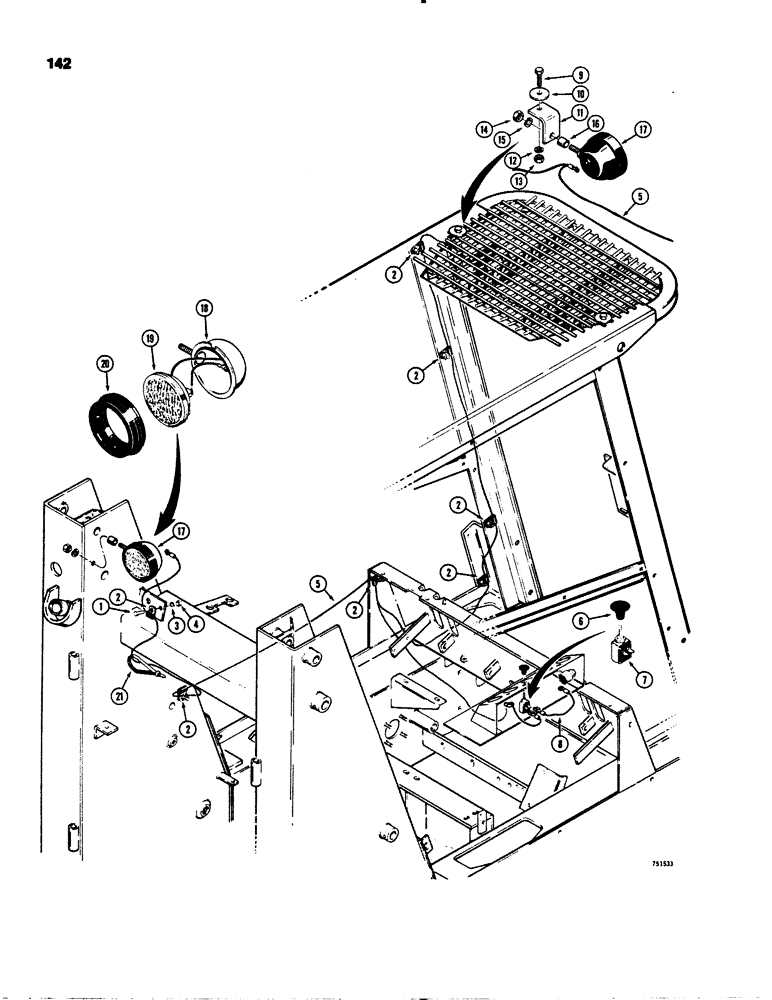

Запчасти Case IH 1845S (142) - LIGHTS (55) - ELECTRICAL SYSTEMS

1

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

2

D43839

CLAMP

P-style

6шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

D71560

HARNESS

light

1шт.

6

D95781

BUTTON

KNOB switch

1шт.

7

D67146

SWITCH

lights

1шт.

8

D71564

ELECTRICAL WIRE

WIRE jumper

1шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

T40254

WASHER

flat

2шт.

11

D70114

BRACKET

MOUNT angle

2шт.

12

195-525

WASHER,3/8", SAE

lock, plated, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

16

Y214

BUSHING

SPACER light

3шт.

17

D70483

HEADLIGHT

LIGHT ASSEMBLY, 12V, Includes Ref. 18-20

3шт.

18

NSS

NOT SOLD SEPARAT

BODY

3шт.

19

A42294

SEALED BEAM UNIT

LAMP sealed beam, No. 4406

1шт.

20

A25213

RETAINER

rubber

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP

1шт.
