Запчасти Case IH 1845S (140) - INSTRUMENT PANEL, GAUGES AND SWITCH (55) - ELECTRICAL SYSTEMS

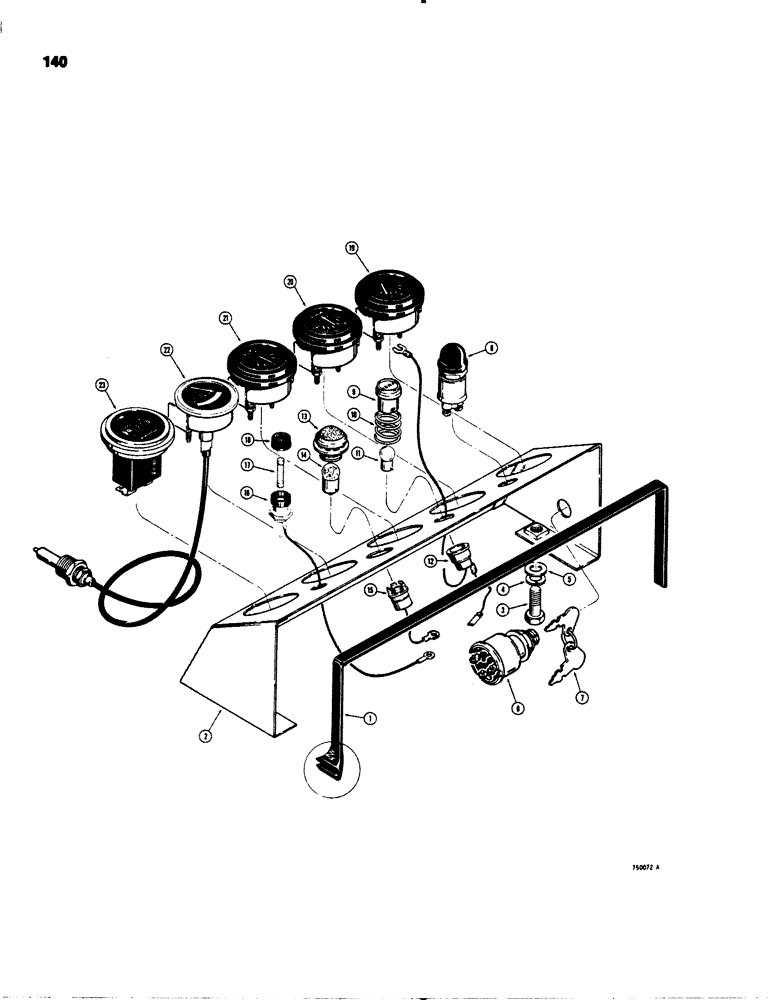

Схема запчастей Case IH 1845S - (140) - INSTRUMENT PANEL, GAUGES AND SWITCH (55) - ELECTRICAL SYSTEMS
12
20
18
2
15
6
19
7
16
4
10
17
11
5
22
8
3
9
23
13
1
14
21

Артикул

Название

Примечание

Количество

1

D69173

CHANNEL

TRIM panel

1шт.

2

D68730

PANEL

instrument, if used

1шт.

2

D88044

PANEL

instrument, without temperature gauge, not shown

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

195-25

WASHER,3/8"

flat, 3/8"

2шт.

6

D35092

SWITCH

ignition, Includes hardware, Includes Ref. 7

1шт.

7

D36822

KEY

set of 2

1шт.

8

D122244

SWITCH

push button, Includes A18414 O-ring

1шт.

D64385

LAMP

LIGHT fuel, Includes Ref. 9-12

1шт.

9

NSS

NOT SOLD SEPARAT

LENS light

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING light

1шт.

11

A25454

PULLEY

BULB light, No. 1895R

1шт.

12

NSS

NOT SOLD SEPARAT

BODY light

1шт.

D53892

LIGHT

ignition, diesel models only, if used, Includes Ref. 13-15

1шт.

13

NSS

NOT SOLD SEPARAT

LENS

1шт.

14

71421

BULB,R5W, 12V, 5W

No. 67

1шт.

15

NSS

NOT SOLD SEPARAT

BODY AND HARDWARE

1шт.

D56988

HOLDER

FUSE HOLDER, Includes Ref. 16-18

1шт.

16

NSS

NOT SOLD SEPARAT

BODY AND HARDWARE

1шт.

17

223-31

FUSE,10 Amp, Type 3AG

30 amp, AGC 30

1шт.

18

A10958

CAP

holder

1шт.

19

A19346

ELECTRICAL GAUGE

GAUGE oil pressure

1шт.

20

D78516

ELECTRICAL GAUGE

GAUGE water temperature

1шт.

21

A19348

ELECTRICAL GAUGE

AMMETER

1шт.

22

D66565

ELECTRICAL GAUGE

GAUGE transmission temperature, Includes a reducer bushing, if used

1шт.

COLOR ZONE, GREEN, 100DEG/F TO 235DEG/F

1шт.

23

D53047

GAUGE

HOURMETER

1шт.

COLOR ZONE, RED, 260DEG/F UP

1шт.

COLOR ZONE, YELLOW, 235DEG/F TO 260DEG/F

1шт.

Выбрано товаров: 30
