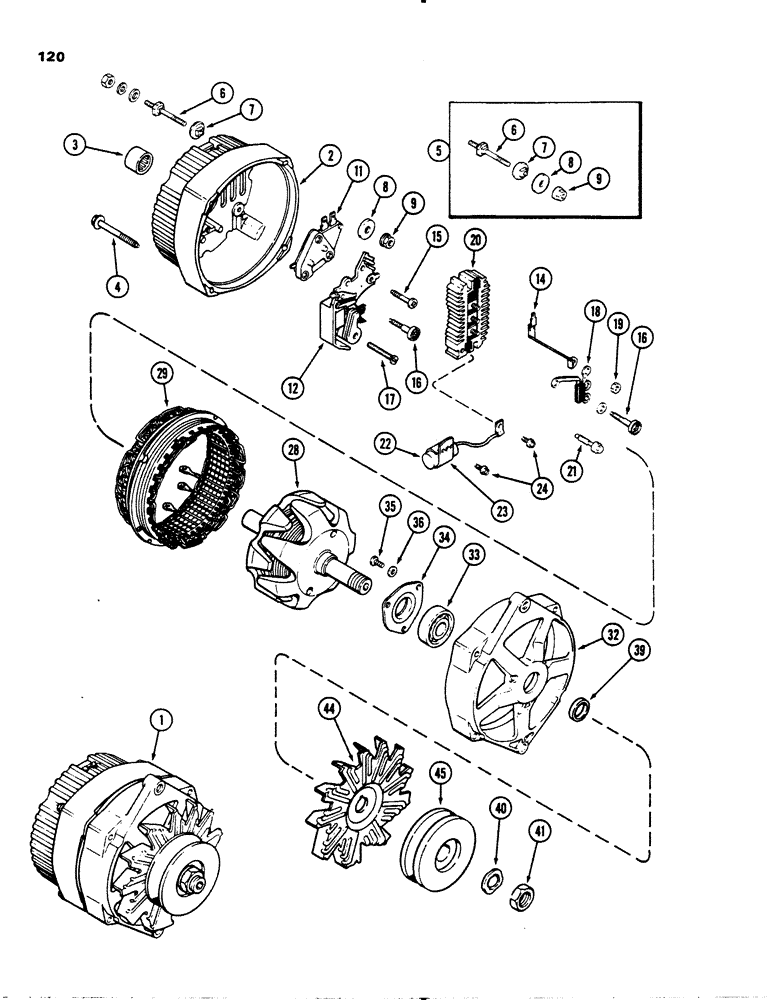

Запчасти Case IH 1845S (120) - L102693 ALTERNATOR, (USES METRIC HARDWARE) (55) - ELECTRICAL SYSTEMS

1

L102693

ALTERNATOR ASSEMBLY, Delco-Remy #1103125, JI Case installed, order A47623 alternator, A43384 fan and A51561 pulley

1шт.

A47623

ALTERNATOR

ALTERNATOR ASSEMBLY, Delco-Remy #1103133, used for repairs only, Includes Ref. 2-41

1шт.

87746858

REMAN-ALTERNATOR

1845, 1845S Skid Steer Loader

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 35 AMP Alternator

1шт.

2

A47595

FRAME

FRAME ASSEMBLY, slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT through, hex head with washer, #10-24 x 1-3/4"

4шт.

5

A47597

TERMINAL CONNECTOR

TERMINAL KIT battery, Includes Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER insulating

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY

2шт.

11

A45213

REGULATOR

REGULATOR voltage

2шт.

12

A47042

HOLDER

HOLDER ASSEMBLY, brush, Includes P/N A47626

1шт.

A47626

COMMUTATOR BRUSH

BRUSH alternator, order A47987

2шт.

14

A47045

TERMINAL CONNECTOR

TERMINAL relay

1шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW brush holder, insulated

2шт.

17

182-558

SCREW,Slotted Pan Hd, #8-32 x 1 1/4"

SCREW brush holder attaching

1шт.

18

A45219

DIODE ELEMENT

DIODE trio

1шт.

19

129-16

NUT,#8-32

NUT, , Trio diode to rectifier bridge #8-32

3шт.

20

A45394

RECTIFIER

RECTIFIER BRIDGE

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW rectifier bridge attaching

1шт.

22

A45017

CAPACITOR

CAPACITOR

1шт.

23

A45227

CLAMP

BRACKET capacitor mounting

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW capacitor bracket and lead

2шт.

28

A47047

ROTOR

ROTOR ASSEMBLY

1шт.

29

A47048

ARMATURE

STATOR ASSEMBLY

1шт.

32

A47596

FRAME

FRAME drive end

1шт.

33

A47579

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

BEARING ball, drive end

1шт.

34

A44433

PLATE

PLATE bearing retaining

1шт.

35

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW bearing plate retaining

3шт.

36

195-512

WASHER,#10

WASHER 7/32" x 7/16" x 1/16", 5.56 mm x 11.11 mm x 1.59 mm

3шт.

38

A47577

FRAME

COLLAR rotor shaft

1шт.

40

R16171

SPRING WASHER

WASHER lock, pulley nut

1шт.

41

A25546

NUT

NUT pulley and fan retaining

1шт.

44

A43384

FAN

FAN ventilating

1шт.

45

A51561

PULLEY

PULLEY drive

1шт.
