Запчасти Case IH 1845S (118) - D77810 ALTERNATOR, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

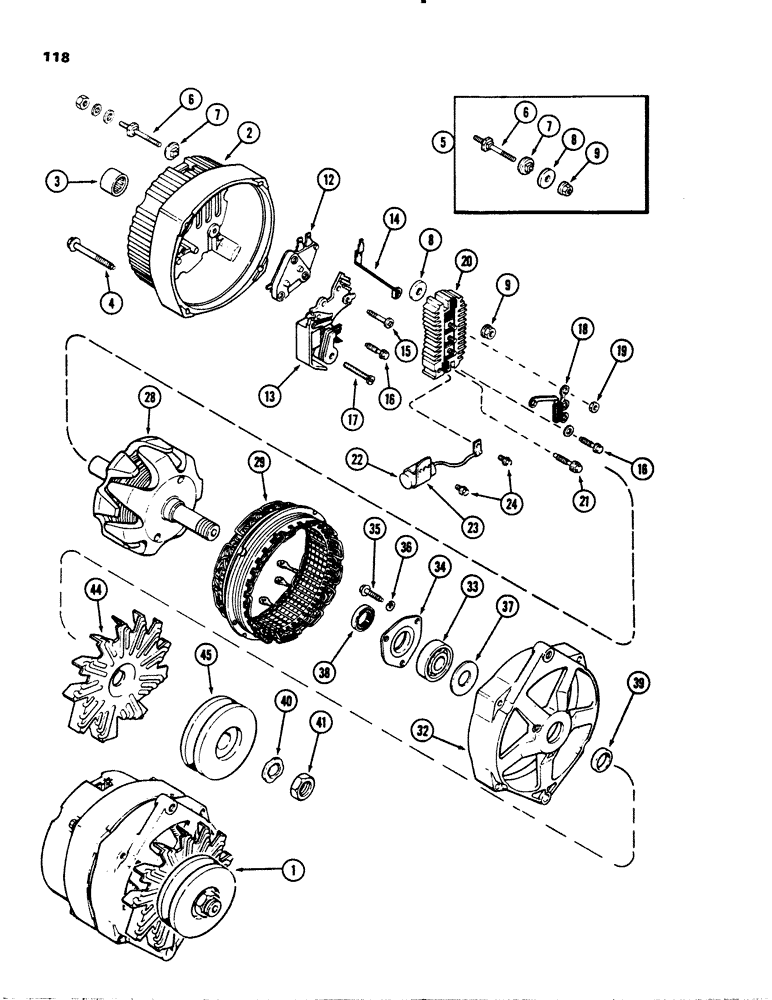

Схема запчастей Case IH 1845S - (118) - D77810 ALTERNATOR, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS
21
8
7
13
41
36
38
18
22
6
2
33
17
24
14
40
1
8
44
6
5
4
23
20
28
45
7
9
3
9
37
18
15
34
39
12
19
32
16
29
35

Артикул

Название

Примечание

Количество

1

D77810

ALTERNATOR ASSEMBLY, Delco-Remy #1102927, JI Case installed, order 1-D78005 alternator, 1-A43384 fan and 1-A51561 pulley

1шт.

A47436

ALTERNATOR

ALTERNATOR ASSEMBLY, remanufactured

1шт.

103799A1R

REMAN-ALTERNATOR

Reman for New P/N A47436

1шт.

A47437

CORE-ALTERNATOR

Return Part Number use this part no. to return alternator for credit

1шт.

A46932

ALTERNATOR

Alternator, 12 volts 63 ampere

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volts 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 61 ampere

1шт.

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

D78005

ALTERNATOR

ALTERNATOR ASSEMBLY, new, Delco-Remy #1102920, used for repairs only, less pulley and fan, Includes Ref. 2-41

1шт.

For repairs, order A47623 alternator, 814-8025 bolt, 892-1108 washer, 892-1106 washer and 825-1106 nut.

1шт.

103801A1R

REMAN-ALTERNATOR

Reman for New PN D78005

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman for New PN D78005

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87746858

REMAN-ALTERNATOR

1845, 1845S Skid Steer Loader

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 35 AMP Alternator

1шт.

2

A47595

FRAME

FRAME ASSEMBLY, slip ring end, Replaces: A47041

1шт.

3

A47046

ROLLER BEARING,0.6699" ID x 0.9375" OD x 0.67"

BEARING roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT through, hex head with washer, #10-24 x 1-3/4"

4шт.

5

A45225

MULTIPOLE CONNECTOR

TERMINAL KIT battery, Includes Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER insulating

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY

2шт.

12

A45213

REGULATOR

REGULATOR voltage

2шт.

13

A47042

HOLDER

HOLDER ASSEMBLY, brush, Includes brushes

1шт.

14

A47045

TERMINAL CONNECTOR

TERMINAL relay

1шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW brush holder, insulated

2шт.

17

182-558

SCREW,Slotted Pan Hd, #8-32 x 1 1/4"

SCREW brush holder attaching

1шт.

18

A45219

DIODE ELEMENT

DIODE trio

1шт.

19

129-16

NUT,#8-32

NUT, , Trio diode to rectifier bridge #8-32

3шт.

20

A45394

RECTIFIER

RECTIFIER BRIDGE

1шт.

2

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW rectifier bridge attaching

1шт.

22

A45017

CAPACITOR

CAPACITOR

1шт.

23

A45227

CLAMP

BRACKET capacitor mounting

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW capacitor bracket and lead

2шт.

28

A47047

ROTOR

ROTOR ASSEMBLY

1шт.

29

A47048

ARMATURE

STATOR ASSEMBLY

1шт.

32

A45229

FRAME

FRAME drive end, order A47577

1шт.

33

A45230

BEARING ASSY

BEARING ball, drive end

1шт.

34

A44433

PLATE

PLATE bearing retaining

1шт.

35

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW bearing plate retaining

3шт.

36

195-512

WASHER,#10

WASHER 7/32" x 7/16" x 1/16", 5.56 mm x 11.11 mm x 1.59 mm

3шт.

37

A45232

WASHER

WASHER grease slinger, bearing

1шт.

38

A43693

SEAL

SEAL oil

1шт.

39

A72047

COLLAR

COLLAR rotor shaft

1шт.

40

R16171

SPRING WASHER

WASHER lock, pulley nut

1шт.

41

A25546

NUT

NUT pulley and fan retaining

1шт.

44

A43384

FAN

FAN ventilating

1шт.

45

A51561

PULLEY

PULLEY drive

1шт.

Выбрано товаров: 54
