Запчасти Case IH 1845S (116) - A38815 ALTERNATOR, (159) SPARK AND (188) DIESEL ENGINES PRESTOLITE (55) - ELECTRICAL SYSTEMS

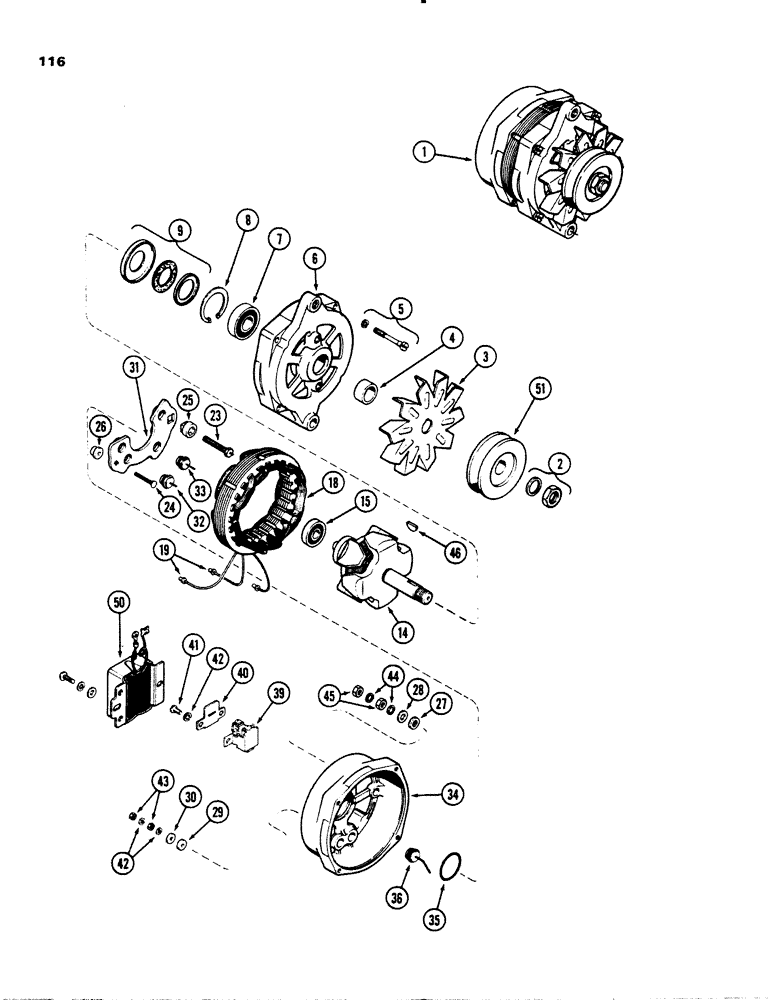

Схема запчастей Case IH 1845S - (116) - A38815 ALTERNATOR, (159) SPARK AND (188) DIESEL ENGINES PRESTOLITE (55) - ELECTRICAL SYSTEMS
30
8
43
24
6
46
4
19
42
44
14
23
51
42
45
26
35
41
25
31
15
1
28
50
18
3
33
34
27
7
29
5
9
39
36
32
2
40

Артикул

Название

Примечание

Количество

1

A38815

ALTERNATOR

ALTERNATOR ASSEMBLY, Prestolite #ALK-7314, JI Case installed, order 1-A45324 alternator, 1-A42777 pulley and 1-A44543 regulator

1шт.

A47438

ALTERNATOR

ALTERNATOR ASSEMBLY, remanufactured

1шт.

104025A1R

REMAN-ALTERNATOR

Reman For New P/N A47438

1шт.

A47439

CORE-ALTERNATOR

Return Part Number used this part no. to return alternator core for credit

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 61 Ampere

1шт.

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR ASSEMBLY, new, Prestolite #ALK-6322-S, service only, without pulley or regulator, Replaces: A42776, Includes Ref. 2-46

1шт.

103801A1R

REMAN-ALTERNATOR

Reman for New PN A45324

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman for New PN A45324

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87746858

REMAN-ALTERNATOR

1845, 1845S Skid Steer Loader, N.A. Only

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 35 AMP Alternator

1шт.

2

A40581

KIT

PACKAGE nut and washer, pulley and fan retaining

1шт.

3

A41066

FAN

FAN ventilating

1шт.

4

A41078

BUSHING

SPACER fan

1шт.

5

A41081

SPARE PART PACKAGE through bolt, set of 4

1шт.

6

A42262

HEAD

SPARE PART HEAD ASSEMBLY, drive end, Includes Ref. 7-9

1шт.

7

A42263

BALL

BEARING ball, order A45230

1шт.

8

NSS

NOT SOLD SEPARAT

RING sanp, bearing retaining

1шт.

9

A42268

KIT

PACKAGE retainer and seal

1шт.

14

A45326

ROTOR

ROTOR ASSEMBLY, Includes Ref. 15

1шт.

15

A42270

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING ball, rotor shaft

1шт.

18

A41079

STATOR

STATOR ASSEMBLY

1шт.

19

A41065

KIT

PACKAGE eyelets, package of 6

1шт.

A42771

STUD

PACKAGE terminal studs, Includes Ref. 23-30

1шт.

23

NSS

NOT SOLD SEPARAT

STUD battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD auxilairy terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING insulation, auxiliary terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER insulation, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER battery terminal, outer

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER insulating, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER auxilairy terminal, outer

1шт.

A42773

HEAD (CYLINDER)

RECTIFIER ASSEMBLY, Includes Ref. 31-33

1шт.

31

NSS

NOT SOLD SEPARAT

HEAT SINK

1шт.

32

A41075

DIODE

DIODE positive, color code, red mark

3шт.

33

A42261

DIODE

DIODE output, color code, black mark

1шт.

34

A45318

HEAD (CYLINDER)

HEAD ASSEMBLY, slip ring end, Includes Ref. 35-36

1шт.

35

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

O-RING sealing

1шт.

36

A44180

KIT

DIODE negative, color code, black mark

4шт.

39

A43952

HOLDER

HOLDER ASSEMBLY, brush, order A45467

1шт.

40

A41073

COVER

INSULATION brush holder cover

1шт.

41

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW brush holder, round head, #10-24 x 3/8"

2шт.

42

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

43

129-667

NUT,#10-32, LH

NUT auxiliary terminal stud, jam, #10 NF hex

2шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

45

131-903

NUT,3/8"-16

NUT battery terminal stud, 1/4"-28 hex

2шт.

46

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

50

A44543

REGULATOR

REGULATOR ASSEMBLY, voltage

1шт.

51

A42777

PULLEY

PULLEY drive

1шт.

Выбрано товаров: 52
