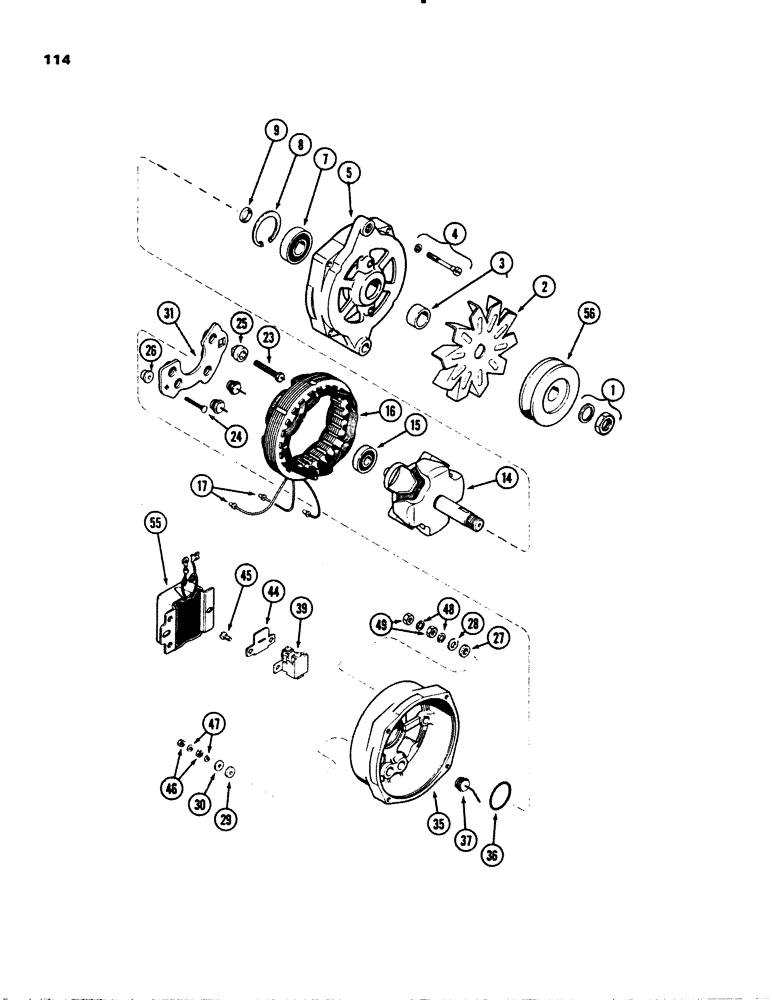

Запчасти Case IH 1845S (114) - D55127 ALTERNATOR, (159) SPARK IGNITION ENGINE, INDUCTION DISCHARGE SYSTEM (55) - ELECTRICAL SYSTEMS

D55127

ALTERNATOR

ALTERNATOR ASSEMBLY, Eltra #ANC-7620-S, JI Case installed, order 1-A45330 alternator, 1-A42777 pulley and 1-A41955 regulator

1шт.

A47442

SPARE PART ALTERNATOR ASSEMBLY, remanufactured

1шт.

A47444

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

A47443

CORE-ALTERNATOR

Return Part Number use this part no. to return alternator core for credit

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 61 ampere

1шт.

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

A45330

ALTERNATOR

ALTERNATOR ASSEMBLY, new, Eltra #ANC-6620-S, less pulley and regulator, repairs only, Replaces: A43942, Includes Ref. 1-56

1шт.

103801A1R

REMAN-ALTERNATOR

Reman For New P/N A45330

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A45330

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87746858

REMAN-ALTERNATOR

1845, 1845S Skid Steer Loader

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 35 AMP Alternator

1шт.

1

A40581

KIT

NUT AND WASHER KIT pulley and fan retaining

1шт.

2

A41373

FAN

FAN ventilating

1шт.

3

A43948

SPARE PART SPACER fan

1шт.

4

A41094

BOLT

BOLT KIT through, set of 4

1шт.

5

A43944

SPARE PART HEAD ASSEMBLY, drive end, Includes Ref. 7-8

1шт.

7

A41068

BALL BEARING

BEARING ball

1шт.

8

A43945

SPARE PART RING snap, bearing retaining

1шт.

9

A40579

SPARE PART RETAINER seal

1шт.

14

A45332

ROTOR

ROTOR ASSEMBLY, Includes Ref. 15

1шт.

15

A41077

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING ball, rotor shaft

1шт.

16

A43949

STATOR

STATOR ASSEMBLY

1шт.

17

A41065

KIT

EYELET KIT wire ends, set of 6

1шт.

A43950

SPARE PART STUD KIT terminals, Includes Ref. 23-30

1шт.

23

NSS

NOT SOLD SEPARAT

STUD battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING insulation, auxiliary terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER insulating, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER insulating, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER plain, auxiliary terminal

1шт.

31

A44701

PLATE

HEAT SINK ASSEMBLY, with positive diodes

1шт.

35

NLS

NO LONGER SERVICED

ASSEMBLY, slip ring end, Includes Ref. 36-49

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

O-RING sealing

1шт.

37

A44180

KIT

DIODE KIT negative, package of 3

1шт.

39

A45467

BUSHING

HOLDER ASSEMBLY, brushes, complete

1шт.

44

A43943

SPARE PART INSULATION cover, brush holder

1шт.

45

182-1012

SCREW,Rnd Hd, #10 - 24 x 3/8"

SCREW round head, #10-24 x 3/8"

1шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

NUT jam, #10 NF hex

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

NUT hex 1/4"-28

2шт.

55

A41955

REGULATOR

REGULATOR ASSEMBLY, voltage

1шт.

56

A42777

PULLEY

PULLEY alternator drive

1шт.
