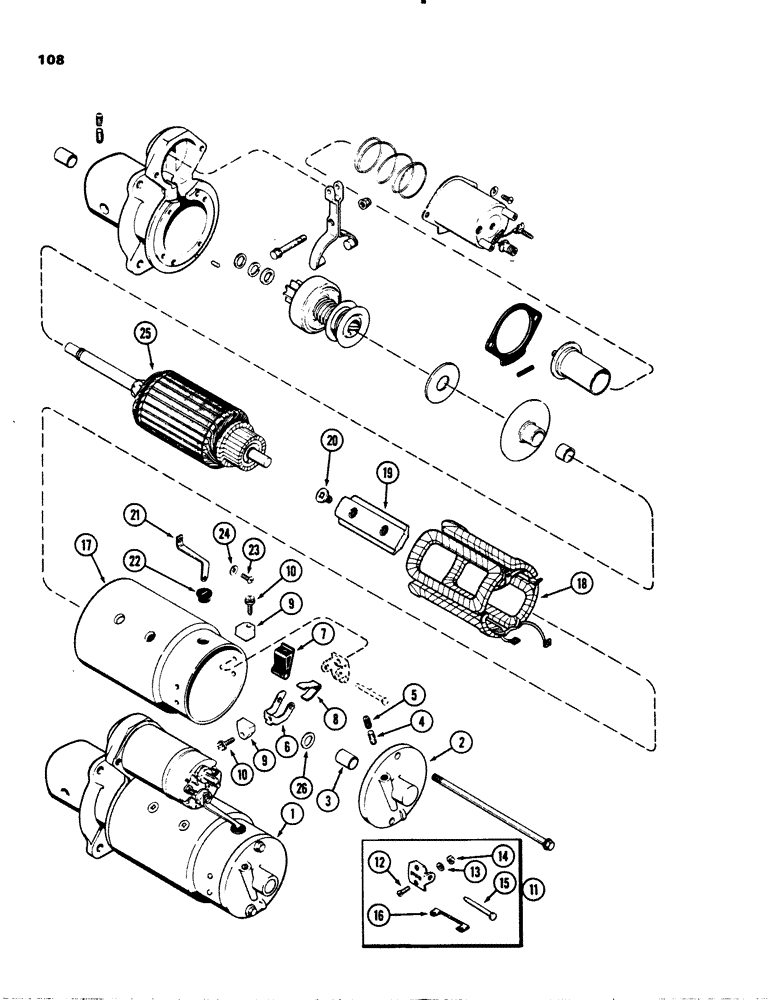

Запчасти Case IH 1845S (108) - R29870 STARTER, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

A47494

STARTING MOTOR

STARTER ASSEMBLY, remanufactured

1шт.

A47495

CORE-STARTER

Return Part Number use this part no. to return starter core for credit

1шт.

1

R29870

STARTING MOTOR

STARTER ASSEMBLY, Delco-Remy #1109149, Includes Ref. 2-26

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSEMBLY, commutator end, Includes Ref. 3-5

1шт.

3

A45152

BUSHING

BUSHING 9/16" x 11/16" x 3/4", 14.29 mm x 17.46 mm x 19.05 mm

1шт.

4

A41979

WICK

WICK oil

1шт.

5

221-1041

PLUG

PLUG oil wick hole, slotted head, 1/8" PT

1шт.

6

A40217

HOLDER

HOLDER brush, grounded

2шт.

7

R15027

HOLDER

HOLDER brush, insulated

2шт.

8

A25359

SPRING

SPRING brush pressure

2шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW ASSEMBLY, brush, slotted head, #8-32 x 13/16"

4шт.

11

A25379

KIT

SUPPORT KIT brush holder, Includes Ref. 12-16

2шт.

12

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW round head, #10-24 x 1/2"

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT hex #10-24

2шт.

15

R15035

PIN

PIN brush holder

1шт.

16

A42494

ELECTRICAL WIRE

WIRE LEAD brush ground

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME

1шт.

18

A25548

COIL

COIL ASSEMBLY, field

1шт.

19

A25391

SHOE

SHOE pole

4шт.

20

74-612

SCREW,3/8" - 24 x 3/4"

SCREW pole shoes, flat head, 3/8" x 5/8" NF

8шт.

21

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR, Serial Range: field-solenoid

1шт.

22

A41980

GROMMET

GROMMET connector insulating, in frame

1шт.

23

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW connector to coil, round head, #10-32 x 7/16"

1шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

25

A25547

ARMATURE

ARMATURE

1шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER thrust, at commutator end

1шт.

The R29870 subs to 104202A2R

1шт.

This starter changed from a 10 tooth gear to a 9 tooth gear for faster cranking speed. This changed the nose piece in the area of the offset. Megavolt gets more cores in on the 10 tooth gear and the offset is only .050 diff. between the two gears. at times the nose pieces get mixed up and the result is the starter gear won't mesh with the ring gear unless the starter mounting bolts are loose. On 2/26/96 (MEGA-VOLT) is in process of designing a fixture to readily identify the different nose pieces. byTS

1шт.
