Запчасти Case IH 1845S (106) - A39839 STARTER, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

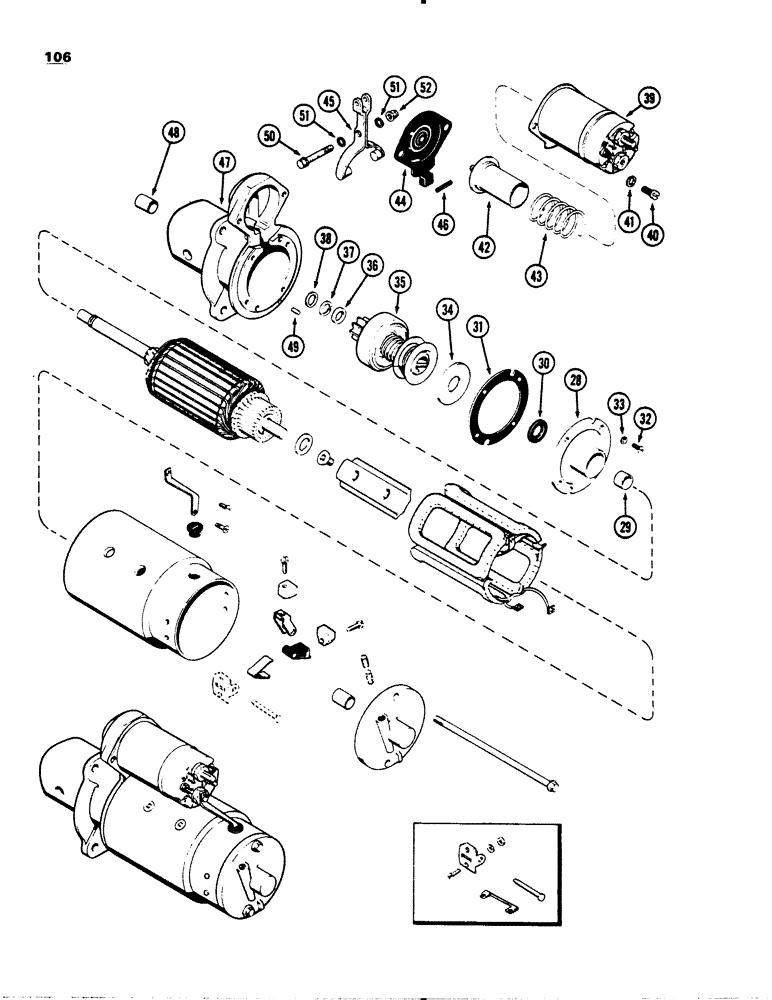

Схема запчастей Case IH 1845S - (106) - A39839 STARTER, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS
52
44
47
39
48
29
35
36
30
46
41
51
51
33
34
31
28
49
43
40
45
42
37
32
50
38

Артикул

Название

Примечание

Количество

A39839

STARTING MOTOR

STARTER ASSEMBLY, continued from Figure 105, Includes Ref. 28-52

1шт.

A40223

PLATE

PLATE ASSEMBLY, center bearing, Includes Ref. 28-31

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE center bearing

1шт.

29

A41982

BUSHING

BEARING 3/4" x 1-1/4" x 7/16", 19.05 mm x 31.75 mm x 11.11 mm

1шт.

30

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

SEAL oil, 3/4" x 1-1/4" x 7/16", 19.05 mm x 31.75 mm x 6.35 mm, Replaces: A40228

1шт.

31

A41981

GASKET

GASKET center bearing

1шт.

32

A41959

SCREW,#10 - 32 x 3/8"

SCREW center bearing to drive housing

4шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

34

R15043

WASHER

WASHER thrust, center bearing

1шт.

35

A45565

DRIVE

ASSEMBLY, starter pinion, Replaces: A43652

1шт.

35

87421540

REMAN-STARTER DRIVE

1845, 1845S, Both CASE UNI-LOADER SKID STEER LOADER, ASSEMBLY, Reman for New PN A45565

1шт.

35

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

36

R15049

COLLAR

COLLAR stop, pinion drive

1шт.

37

R15048

RING

RING snap, collar retaining

1шт.

38

A25385

WASHER

WASHER thrust, starter drive

1шт.

39

REF

INSTRUCTION

SOLENOID ASSEMBLY, see Figure113

1шт.

40

A42023

SCREW,#10 - 32 x 1/2"

SCREW solenoid to drive housing

2шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

42

A40218

PLUNGER

PLUNGER solenoid

1шт.

43

A40221

SPRING

SPRING plunger return

1шт.

44

A40222

BOOT

BOOT solenoid cover

1шт.

45

A40220

LEVER

LEVER shift

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , plunger to shift lever 3/16" x 13/16", Slotted

1шт.

47

A43653

HOUSING

HOUSING ASSEMBLY, drive end, Includes Ref. 48-49

1шт.

48

A40227

BUSHING

BUSHING 1/2" x 9/16" x 3/4", 12.7 mm x 14.29 mm x 19.05 mm

1шт.

49

R15041

SPARE PART PIN drive end housing locating

1шт.

50

A40520

BOLT

PIVOT shift lever

1шт.

51

A41984

WASHER

SEAL pivot stud

2шт.

52

131-4

LOCK NUT,5/16"-18, GB

NUT pivot stud

1шт.

Выбрано товаров: 29
