Запчасти Case IH 1845S (104) - A39839 STARTER, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

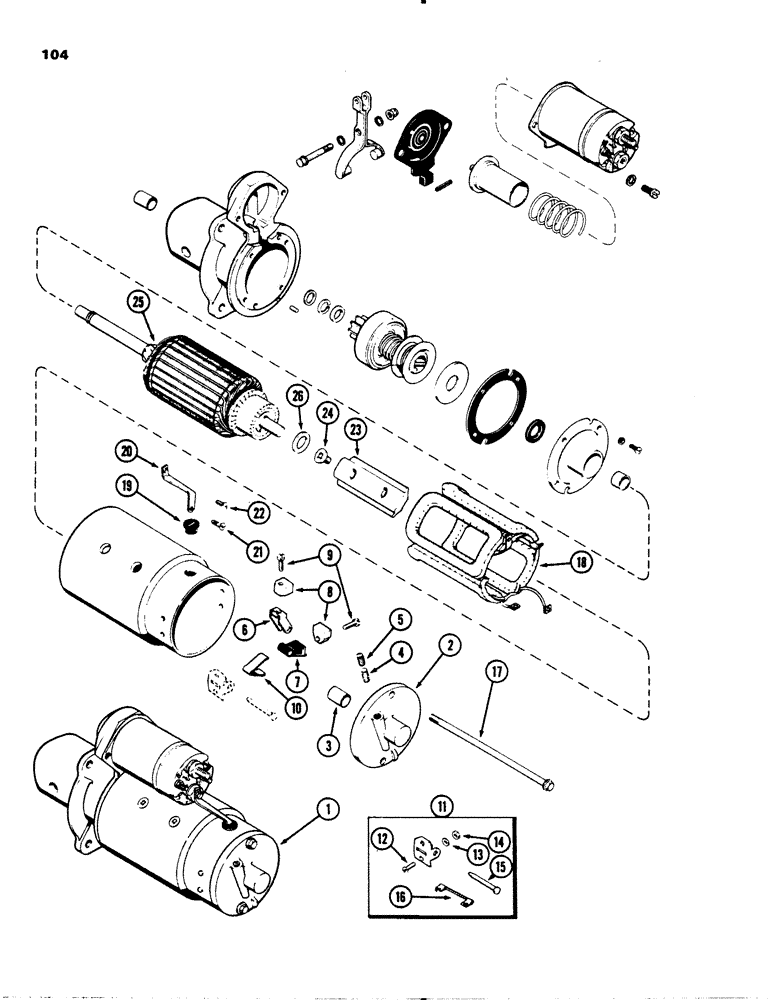

Схема запчастей Case IH 1845S - (104) - A39839 STARTER, (188) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS
13
16
23
10
4
25
7
8
22
20
6
2
15
1
9
19
17
21
26
3
14
5
11
18
24
12

Артикул

Название

Примечание

Количество

A47460

STARTING MOTOR

STARTER ASSEMBLY, remanufactured

1шт.

A47461

THERMOSTAT

RETURN NUMBER use this part no. to return starter core for credit

1шт.

1

A39839

STARTING MOTOR

STARTER ASSEMBLY, Delco-Remy #1109143, Includes Ref. 2-26

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A41870

FRAME

HEAD ASSEMBLY, commutator end, Includes Ref. 3-5

1шт.

3

A45152

BUSHING

BUSHING 9/16" x 11/16" x 7/8", 14.29 mm x 17.46 mm x 22.22 mm

1шт.

4

A41979

WICK

WICK oil

1шт.

5

221-1041

PLUG

PLUG slotted head, 1/8" PT

1шт.

6

A40217

HOLDER

HOLDER brush, grounded

2шт.

7

R15027

HOLDER

HOLDER brush, insulated

2шт.

8

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH starter

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW brush to insulated holder

2шт.

9

A42124

SCREW,#8 - 32 x 5/8"

SCREW brush to grounded holder

2шт.

10

A25359

SPRING

SPRING brush tension

2шт.

11

A25379

KIT

SUPPORT KIT brush holder, Includes Ref. 12-16

2шт.

12

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW round head, #10 x 1/2" NC

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT #10 NC hex

2шт.

15

A41983

PIN

PIN, Serial Range: holder-support

1шт.

16

A42494

ELECTRICAL WIRE

WIRE LEAD brush ground

1шт.

17

A25552

BOLT

BOLT through

2шт.

18

A25548

COIL

COIL ASSEMBLY, field

1шт.

19

A41980

GROMMET

GROMMET coil connector, in frame

1шт.

20

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR, Serial Range: coil-solenoid

1шт.

21

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW round head, #10 x 7/16" NF

1шт.

22

A42023

SCREW,#10 - 32 x 1/2"

SCREW, Serial Range: connector-solenoid

1шт.

23

A25391

SHOE

SHOE pole

4шт.

24

A42127

SCREW,3/8" - 24 x 0.20"

SCREW pole shoes

8шт.

25

A25547

ARMATURE

ARMATURE

1шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER brake, commutator end

1шт.

Выбрано товаров: 33
