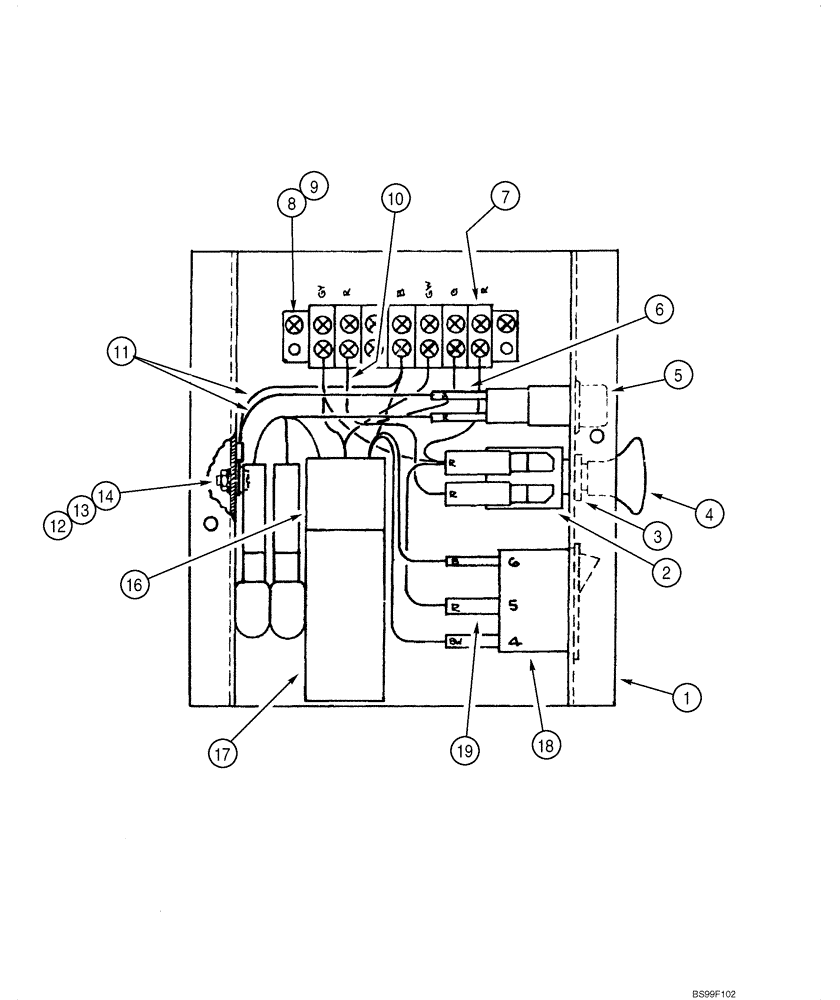

Запчасти Case IH 1845C (04-14A) - SWITCH ASSY - LAMPS, ROAD, JAF0253480 - (04) - ELECTRICAL SYSTEMS

NSS

NOT SOLD SEPARAT

Switch; Incl. 1 - 19

1шт.

1

336723A1

COVER

Lamp Switch

1шт.

2

D74330

SWITCH

Lamp; Incl. 3

1шт.

3

N7557

NUT

3/8 NF

1шт.

4

108314A1

BUTTON

1шт.

5

H603852

LIGHT

1шт.

6

223-95

TERMINAL CONNECTOR,Female, 14 - 16

1шт.

7

322628A1

JUNCTION BOX

1шт.

8

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

9

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

10

E99177

ELECTRICAL WIRE

WIRE

1шт.

11

E99229

ELECTRICAL WIRE

WIRE Ground

2шт.

12

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

1шт.

13

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

1шт.

14

493-41020

LOCK WASHER,Ext Tooth, #10

1шт.

16

336721A1

HARNESS

Flasher

1шт.

17

D147166

FLASHER UNIT

1шт.

18

122736A1

FLASHER SWITCH

Rocker; Hazard

1шт.

19

336722A1

ELECTRICAL WIRE

WIRE, Serial Range: Flasher-Lamp

1шт.
