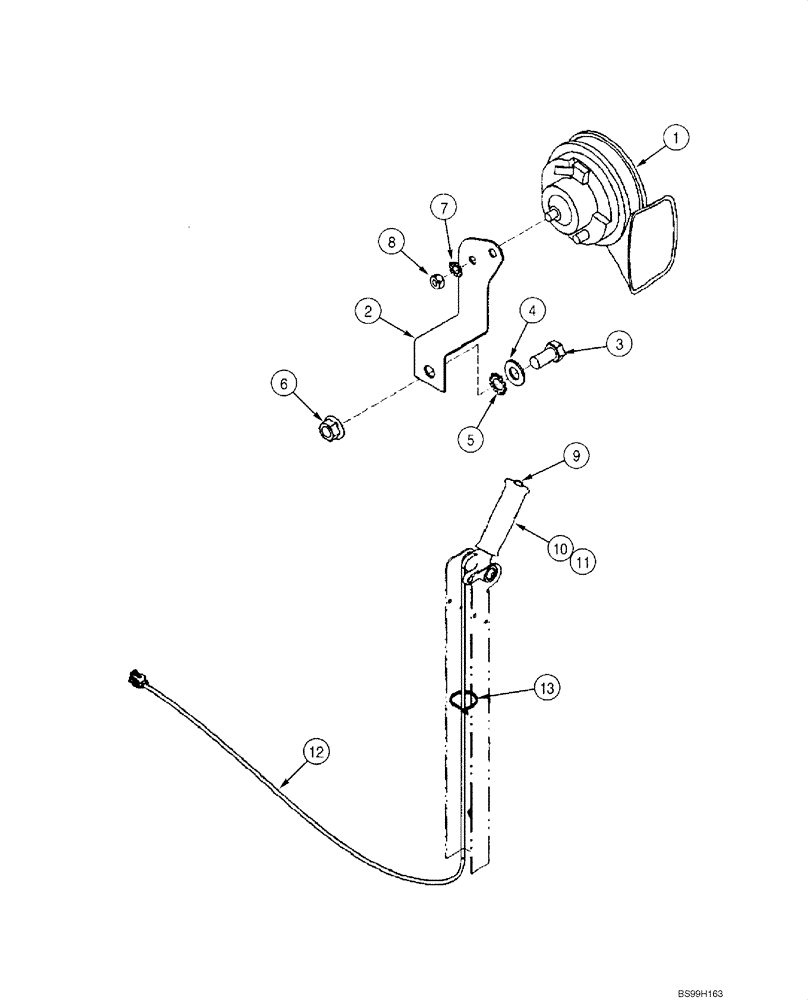

Запчасти Case IH 1845C (04-09B) - HORN, JAF0277353 - (04) - ELECTRICAL SYSTEMS

1

254130A1

HORN

12V

1шт.

2

347009A1

ANGLE

1шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

5

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

8

825-1406

NUT,M6, Cl 8

1шт.

9

H438598

SWITCH

Push Button

1шт.

10

D133282

HANDLE

1шт.

11

D133283

LEVER

RH

1шт.

12

353571A1

HARNESS

Horn

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

14

254251A1

ELECTRICAL WIRE

WIRE Ground; Not Illustrated

1шт.
