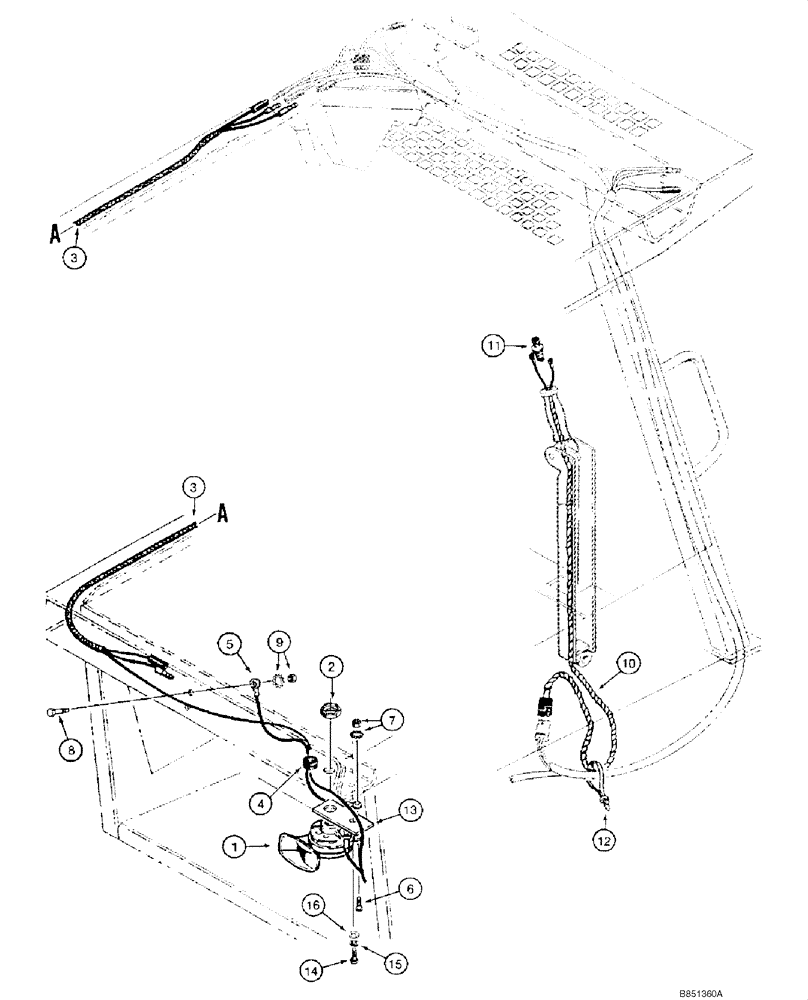

Запчасти Case IH 1845C (04-09) - HORN, - JAF0040227 (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

12V; No Longer Available; For Service, Order 254130A1, 253607A1, 493-41026, 825-1406; See Fig 04-09A, 04-09B

1шт.

2

L30866

LOCK NUT

7/8

1шт.

3

D134075

HARNESS

Horn

1шт.

4

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

5

D134077

ELECTRICAL WIRE

WIRE Ground

1шт.

6

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

1шт.

7

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

193-1009

NUT,Keps, w/LW, 5/16"-18

1шт.

10

D134076

HARNESS

Horn Switch

1шт.

11

D141486

SWITCH

Horn

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

1шт.

13

D122734

SUPPORT

1шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

16

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32)

1шт.
