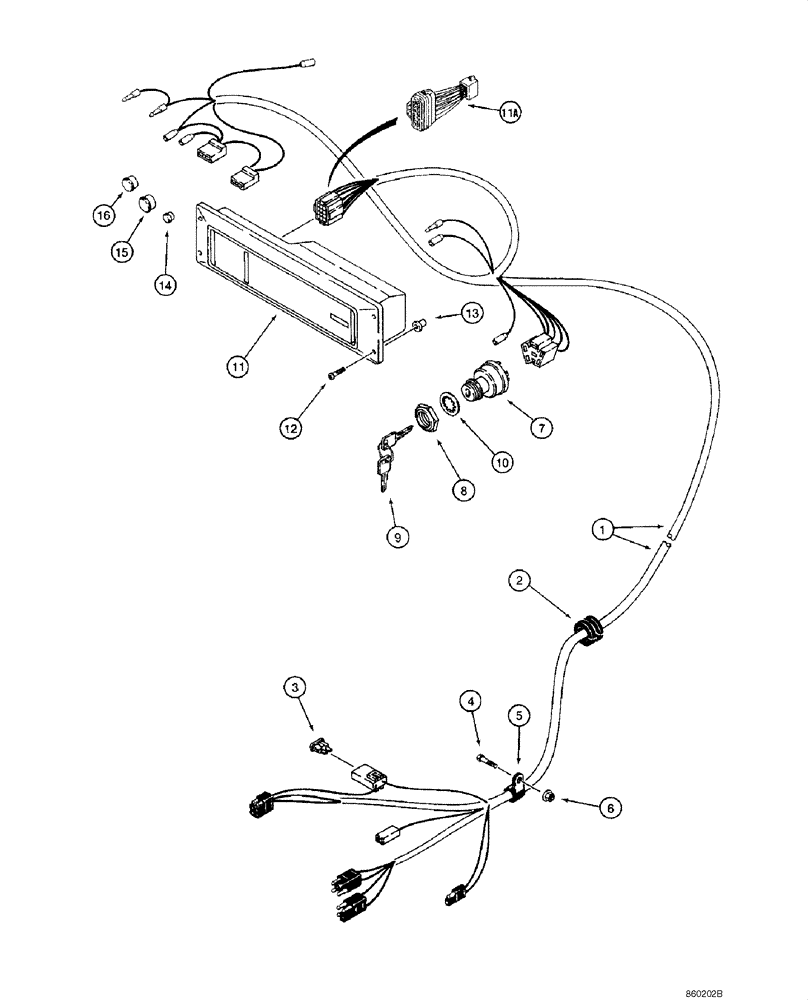

Запчасти Case IH 1845C (04-06) - HARNESS - INSTRUMENT CLUSTER, - JAF0040227 (04) - ELECTRICAL SYSTEMS

1

D126705

HARNESS

Instrument

1шт.

2

248-13107

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

1шт.

3

A149804

FUSE

30 amp; Light Green

1шт.

4

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

5

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

D134737

IGNITION SWITCH

Switch, Ignition; Incl. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Switch

1шт.

8

A77314

NUT

1шт.

9

A77313

SET OF 2 KEYS

Metal without Padding

1шт.

10

493-21104

LOCK WASHER,Int Tooth, 1"

1шт.

11

H438453

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Replaces D139479; Also Order H439038, Ref 11A

1шт.

11a

H439038

HARNESS

Adapter

1шт.

12

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

4шт.

13

D122634

ISOLATOR,12.7mm OD x 14.1mm L

4шт.

14

353-402

PLUG,Dome, .375" hole, Nylon

4шт.

15

353-407

PLUG,Dome, .687" hole, Nylon

1шт.

16

353-405

PLUG,Dome, .562" hole, Nylon

2шт.
