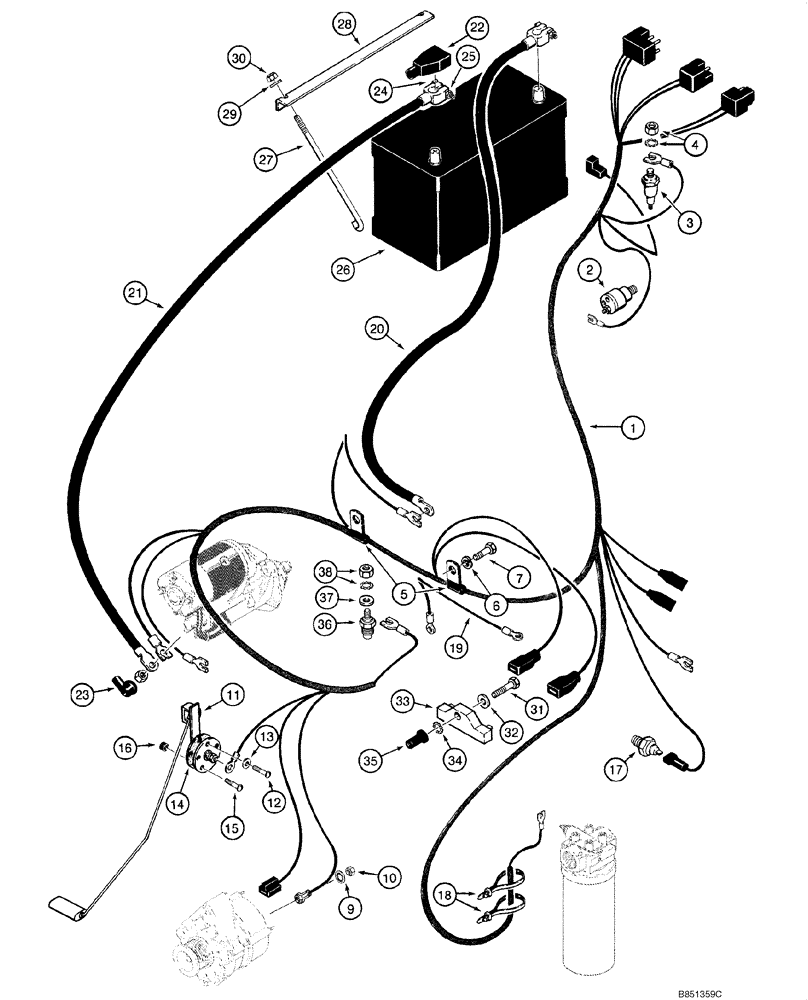

Запчасти Case IH 1845C (04-05) - HARNESS, REAR - BATTERY AND CABLES, - JAF0040227 (04) - ELECTRICAL SYSTEMS

1

D135341

HARNESS

Rear

1шт.

2

H436247

SWITCH, PRESSURE

PRESSURE SWITCH Charge

1шт.

3

H439301

SWITCH

Transmission Temperature; Replaces D132280

1шт.

4

193-1000

NUT,Keps, w/LW,#10-32

1шт.

5

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

7

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

9

493-21026

LOCK WASHER,Int Tooth, 1/4"

1шт.

10

825-1406

NUT,M6, Cl 8

1шт.

11

426332A1

SENDER UNIT

SENDER Fuel Level; Replaces D125062

1шт.

12

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

1шт.

13

D83885

WASHER

1шт.

14

104812C3

GASKET,3.05mm Thk

1шт.

15

H435859

SCREW,#10 - 32 x 3/4"

4шт.

16

H435860

INSERT

5шт.

17

A162297

SWITCH

SWITCH - Oil Pressure

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

2шт.

19

D87572

ELECTRICAL WIRE

WIRE Ground; Use Existing Hardware

1шт.

20

D132217

CABLE

Negative

1шт.

21

H435586

CABLE

Positive; Incl. 22 - 25

1шт.

22

383619R1

COVER

1шт.

23

D128016

BOOT

1шт.

24

117-107

BOLT

5/16 x 1-1/2; 2

1шт.

25

425-105

NUT,5/16"-18, G5

1шт.

26

BMF31E

DRY BATTERY

12V

1шт.

27

D49723

BOLT

2шт.

28

D84224

BRACKET

1шт.

29

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

30

232-1446

NUT,3/8"-16, GC

2шт.

31

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

32

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

33

107558C1

RESISTOR

25 ohm

1шт.

34

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

35

D135342

ISOLATOR

1шт.

1983238C1

SENSOR,1/2" - 14

Engine Cooling

1шт.

36

NSS

NOT SOLD SEPARAT

Sender; Water Temp

1шт.

37

195-513

WASHER,#10

7/32 x 1/2 x 3/64

1шт.

38

193-1000

NUT,Keps, w/LW,#10-32

1шт.
