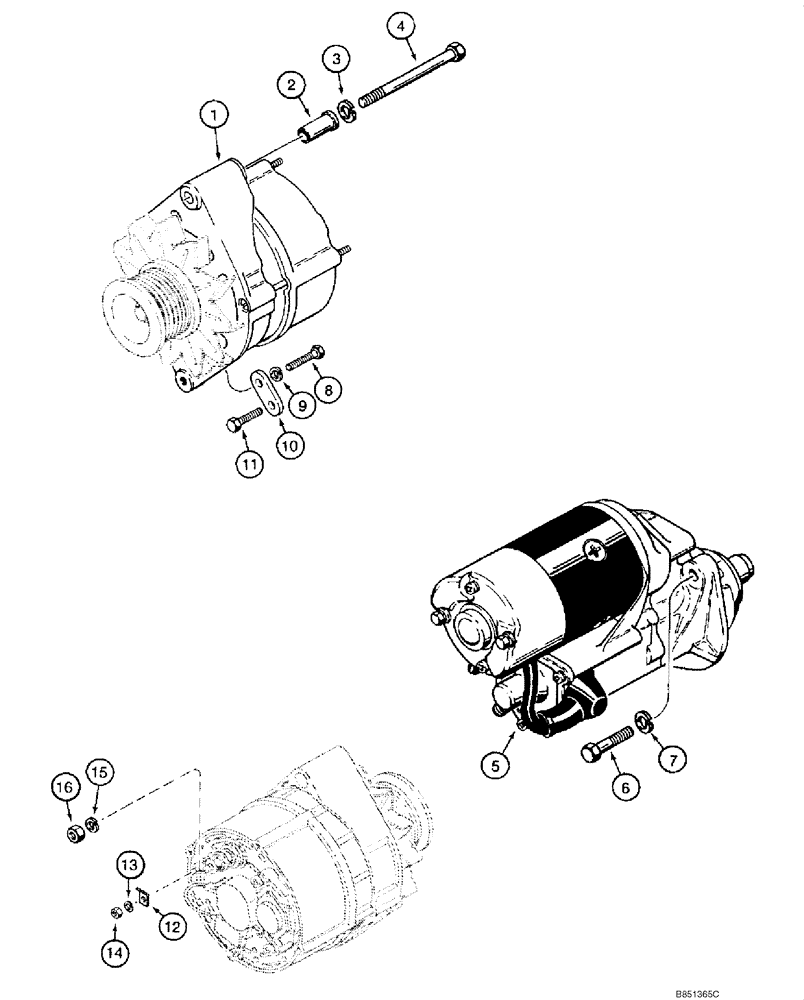

Запчасти Case IH 1845C (04-04) - MOUNTING - STARTER AND ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Alternator Assy; See Fig 04-02, 04-03

1шт.

2

J902469

SPACER

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

5

REF

INSTRUCTION

Starter Assy; See Fig 04-01

1шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

7

892-11010

LOCK WASHER,M10

2шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

492-11031

LOCK WASHER,5/16"

1шт.

10

J903089

SUPPORT

North America Only

1шт.

10

1998702C1

SUPPORT

72 mm (2-13/16 in); Europe Only

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

12

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

Ref 12 - 16 Used to replace A186125 alternator with A187873

1шт.

13

892-11005

LOCK WASHER,M5

Ref 12 - 16 Used to replace A186125 alternator with A187873

1шт.

14

825-1405

NUT,M5, Cl 8

Ref 12 - 16 Used to replace A186125 alternator with A187873

1шт.

15

892-11008

LOCK WASHER,8mm ID

Ref 12 - 16 Used to replace A186125 alternator with A187873

1шт.

16

825-1408

NUT,M8, Cl 8

Ref 12 - 16 Used to replace A186125 alternator with A187873

1шт.
