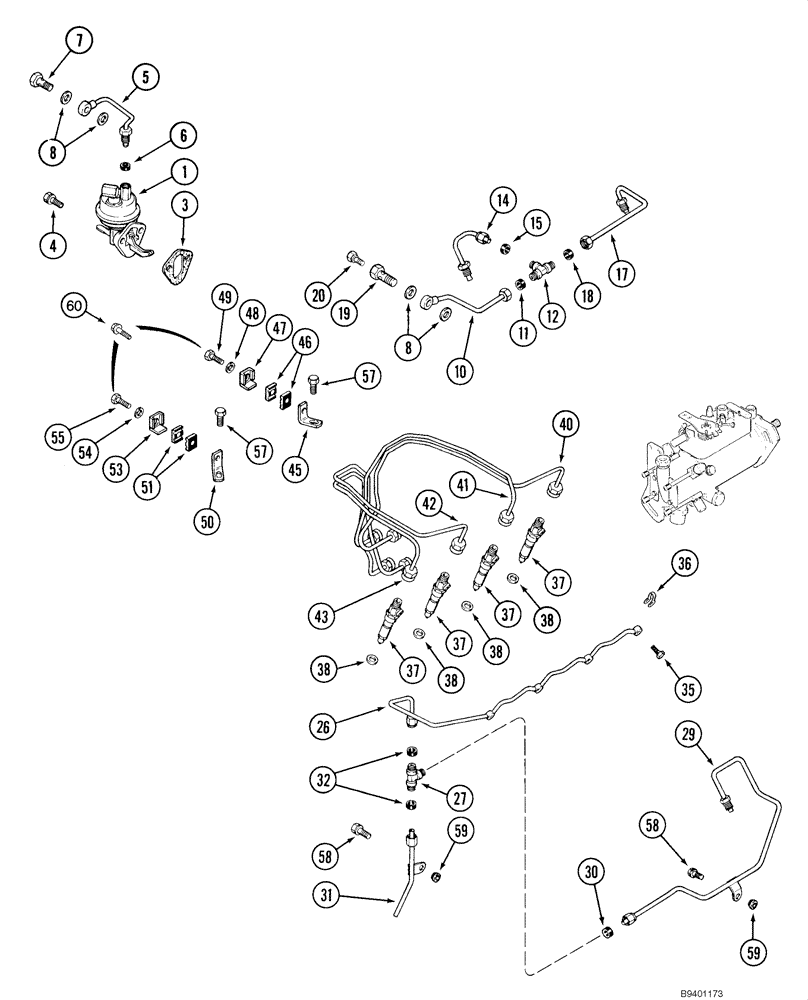

Запчасти Case IH 1845C (03-03) - FUEL INJECTION SYSTEM, 4-390 ENGINE (03) - FUEL SYSTEM

1

J904374

PUMP

No Longer Available, Order J928143

1шт.

1

J928143

PUMP

1шт.

3

J939258

GASKET,1.21mm Thk

Mounting; Replaces J914304, J931059

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

Pump to Filter; Incl. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

1шт.

7

J903035

BANJO BOLT

M12 x 24

1шт.

8

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm

4шт.

10

J905364

FUEL TUBE

Filter to Tee; Incl. 11

1шт.

11

222-103

SLEEVE,5/16" Tube

1шт.

12

J905353

TEE

Discard Hex Nuts Before Assembly

1шт.

14

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

Tee to Rear of Injection Pump; Incl. 15

1шт.

15

222-103

SLEEVE,5/16" Tube

1шт.

17

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

Tee to Front of Injection Pump; Incl. 18

1шт.

18

222-103

SLEEVE,5/16" Tube

1шт.

J905860

BANJO BOLT

Incl. 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

1шт.

20

NSS

NOT SOLD SEPARAT

Screw

1шт.

26

J909695

FUEL TUBE

Fuel Return

1шт.

27

222-121

TEE,3/16", Flex Tubing

Discard hex nuts before assembly

1шт.

29

J925882

FUEL TUBE,4.76 mm OD x 662.1 mm L

Tee to Pump; Replaces J905703; Incl. 30

1шт.

30

222-103

SLEEVE,5/16" Tube

1шт.

31

J905692

FUEL TUBE

Tee to Fuel Tank; Incl. 32

1шт.

32

222-101

SLEEVE,3/16" Tube

2шт.

35

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

36

J903380

SEAL

4шт.

37

REF

INSTRUCTION

Injector Assy; See Fig 03-11, 03-12

4шт.

38

REF

INSTRUCTION

Seal; See Fig 03-11, 03-12

4шт.

40

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

No. 1 Cylinder

1шт.

41

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

No. 2 Cylinder

1шт.

42

J903524

FUEL TUBE

No. 3 Cylinder

1шт.

43

J903525

FUEL TUBE

No. 4 Cylinder

1шт.

45

J930689

SUPPORT

Replaces J919294

1шт.

46

J917746

CLAMP

2шт.

47

CURJ904711

CLAMP

1шт.

48

J903723

WASHER

1шт.

49

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

If used

1шт.

50

J930688

SUPPORT

Replaces J919292

1шт.

51

J917746

CLAMP

2шт.

53

CURJ904711

CLAMP

1шт.

54

J903723

WASHER

1шт.

55

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

If used

1шт.

57

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

58

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

59

J900267

SEAL

2шт.

60

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

If used

2шт.
